Memory Seat Control Module Replacement

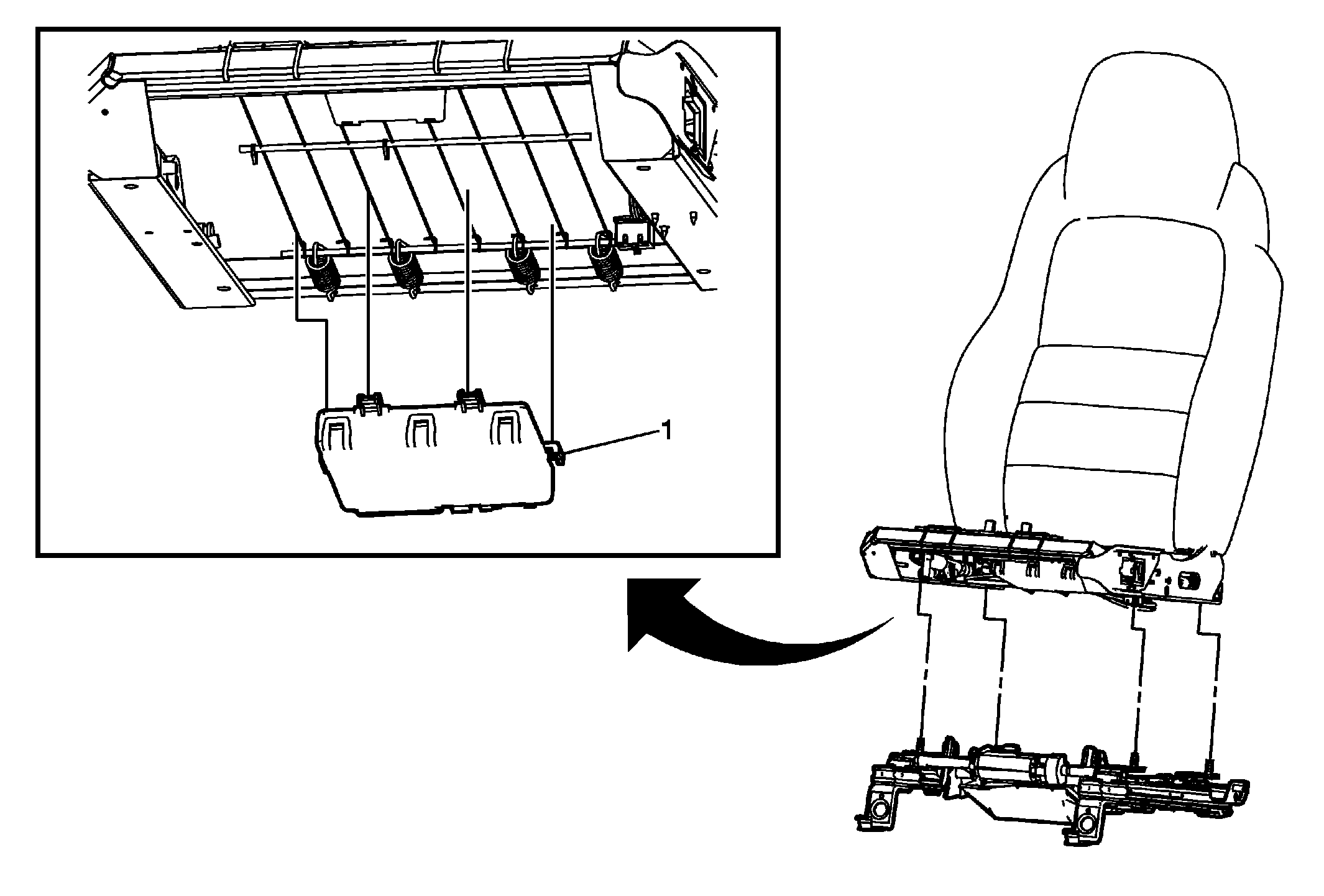

Fig 1: View Of Memory Seat Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the driver and passenger seat. Refer to Driver or Passenger Seat Replacement . Remove the front seat adjuster. Refer to Front Seat Adjuster Replacement .
1	Memory Seat Control Module Procedure Disconnect any electrical connectors. Transfer components as necessary. Reprogram the module. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure

Remove the driver and passenger seat. Refer to Driver or Passenger Seat Replacement .
Remove the front seat adjuster. Refer to Front Seat Adjuster Replacement .

Memory Seat Control Module

Procedure
