Power, Ground and Serial Data Wiring Schematics

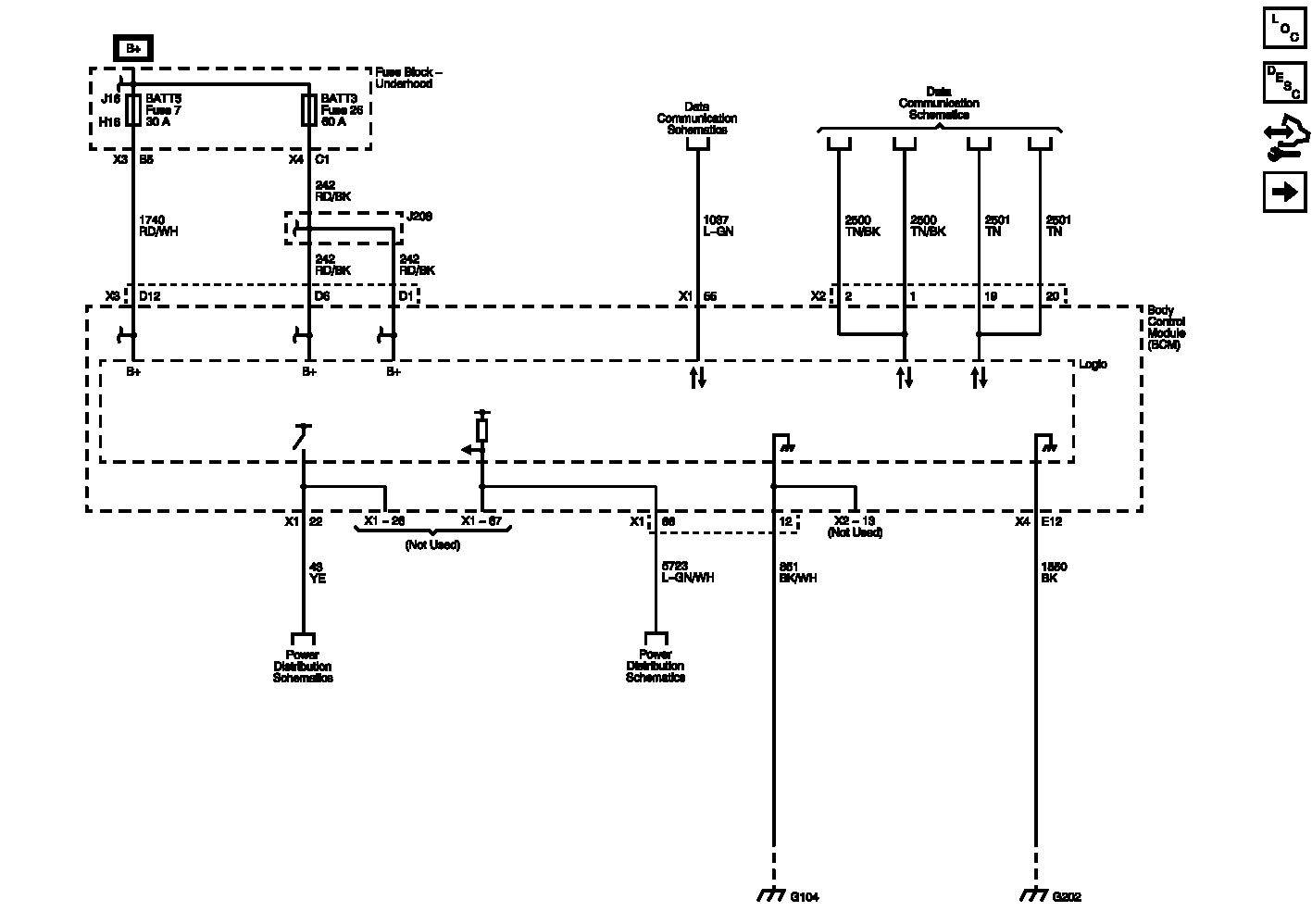

Fig 1: Power, Ground and Serial Data Wiring Schematics
GM2565829Courtesy of GENERAL MOTORS COMPANY
