Fogging Sensor: Diagrams

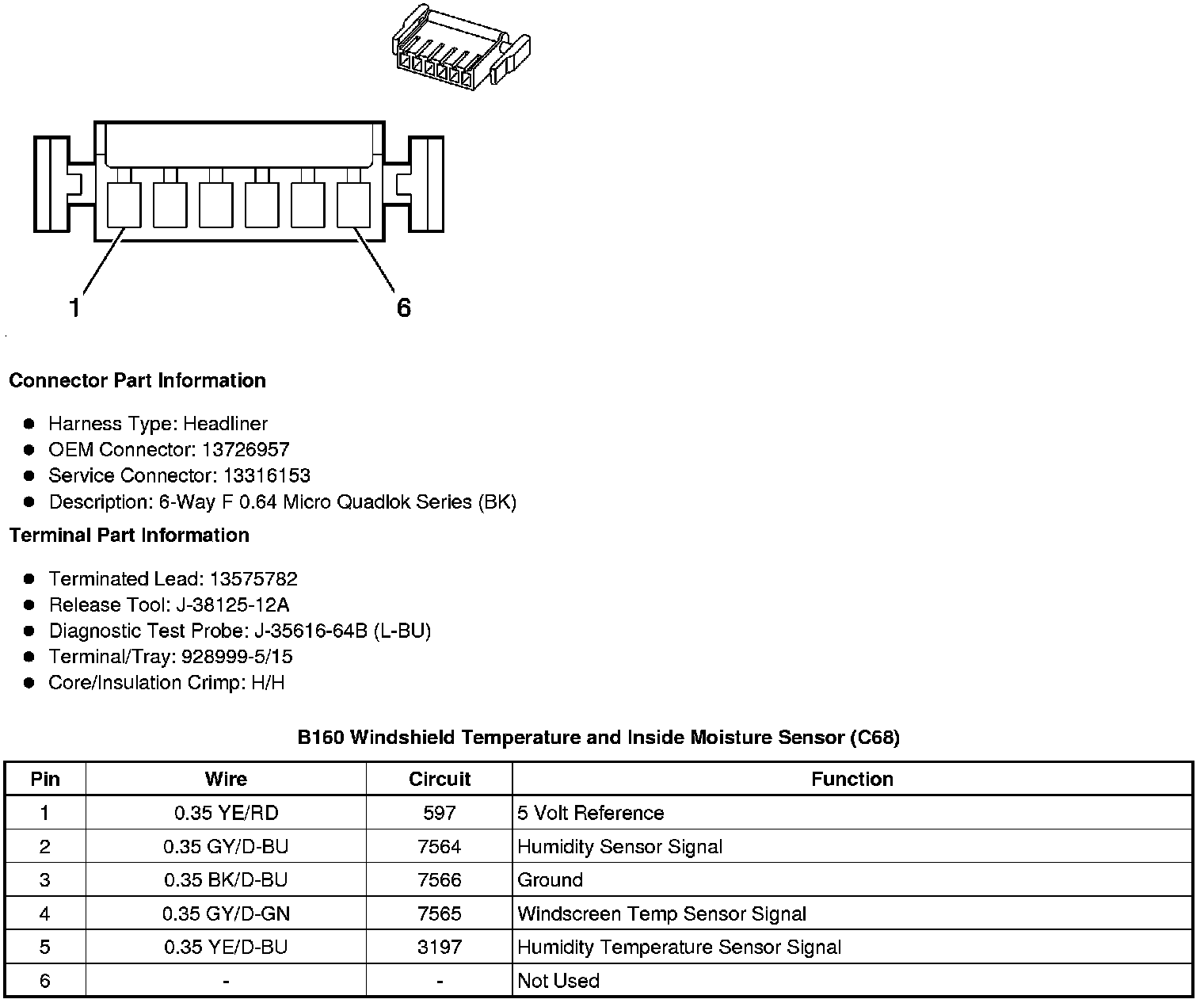

Component Connector End Views
B160 Windshield Temperature and Inside Moisture Sensor (C68)
