Radio Replacement

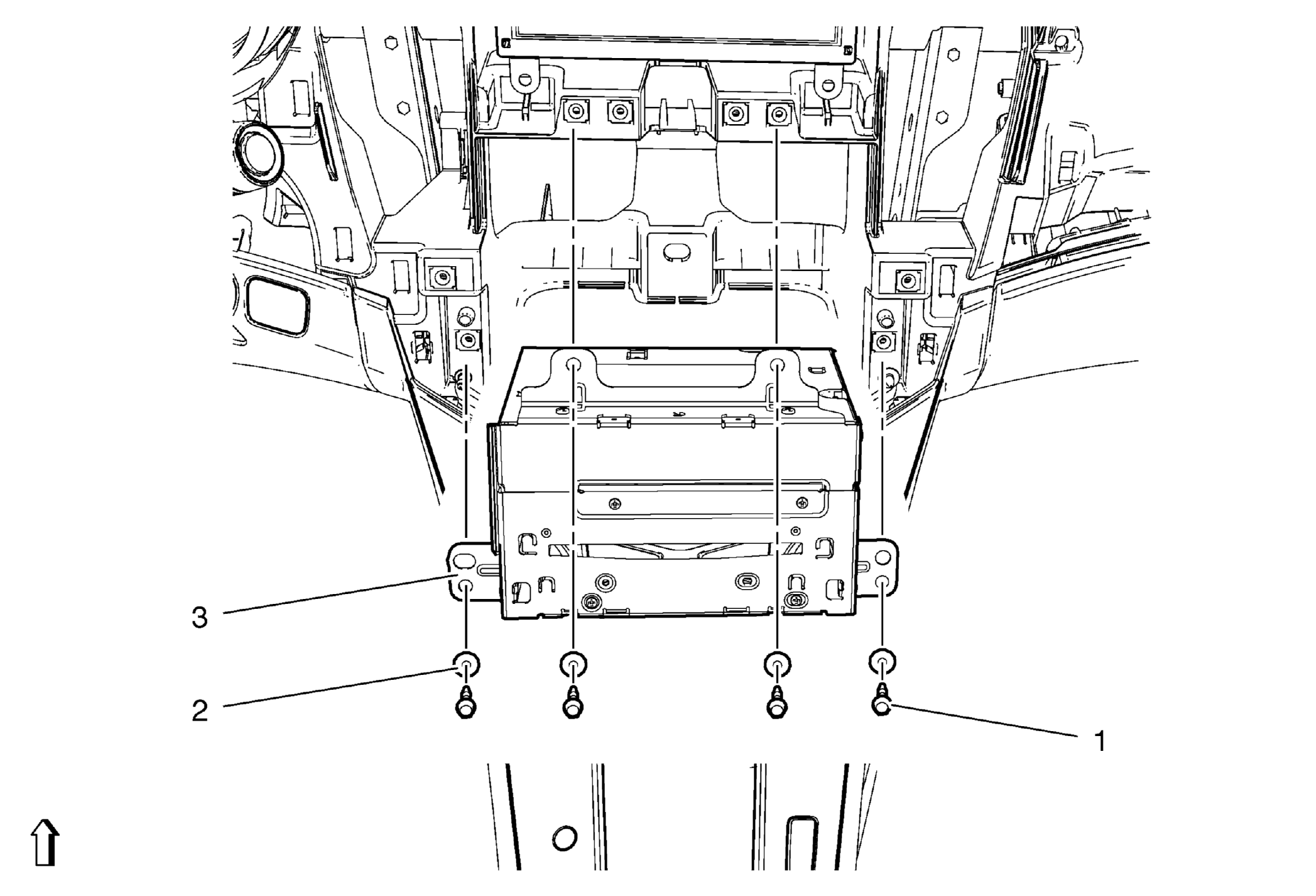

Fig 1: Radio And Mounting Hardware

Courtesy of GENERAL MOTORS COMPANY

Radio Replacement

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the radio control module. Refer to Radio Control Module Replacement . Remove the driver information display bezel. Refer to Driver Information Display Bezel Replacement .
1	Radio Bolt (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Radio Bolt Washer (Qty: 4)
3	Radio Procedure Disconnect electrical components. After replacement, refer to Control Module References for programming and set up information.
