Front End Inflatable Restraint Discriminating Sensor Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

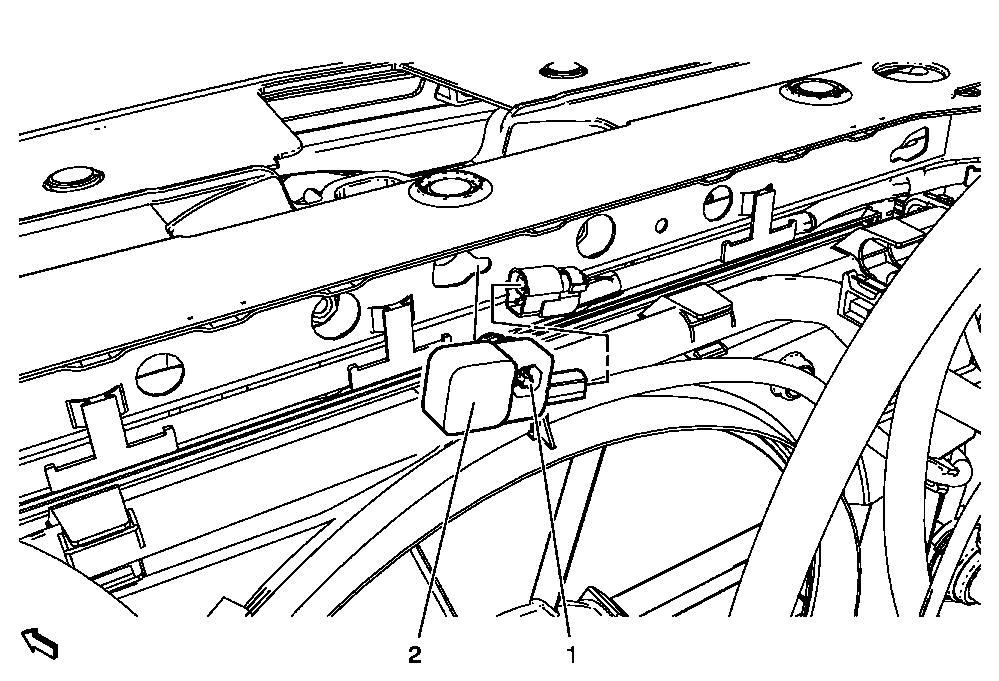

Fig 1: Inflatable Restraint Front End Sensor And Bolt

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to SIR Warning . WARNING: Following the deployment of a side impact air bag, inspect the following parts for damage. Replace these parts if necessary: The seat cushion frame The seat recliner, if equipped The seat adjuster The seat back frame Failure to do so may cause future personal injury. Preliminary Procedures: Disable the SIR system. Refer to SIR Disabling and Enabling .
1	Inflatable Restraint Front End Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten: 7.5 N.m (66 lb in)
2	Inflatable Restraint Front End Sensor Procedure Disconnect electrical connector. Loosen the bolt and slide the sensor out of the keyhole slot. Tip: The bolt is integral to the sensor assembly, DO NOT remove separately.

Callout

Component Name

WARNING: Refer to SIR Warning .

WARNING: Following the deployment of a side impact air bag, inspect the following parts for damage. Replace these parts if necessary:

The seat cushion frame
The seat recliner, if equipped
The seat adjuster
The seat back frame

Failure to do so may cause future personal injury.

Preliminary Procedures: Disable the SIR system. Refer to SIR Disabling and Enabling .

Inflatable Restraint Front End Sensor Bolt

CAUTION: Refer to Fastener Caution .

Tighten: 7.5 N.m (66 lb in)

Inflatable Restraint Front End Sensor

Procedure

Disconnect electrical connector.
Loosen the bolt and slide the sensor out of the keyhole slot.

Tip: The bolt is integral to the sensor assembly, DO NOT remove separately.
