Inflatable Restraint Instrument Panel Lower Module Replacement - Driver Side

WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

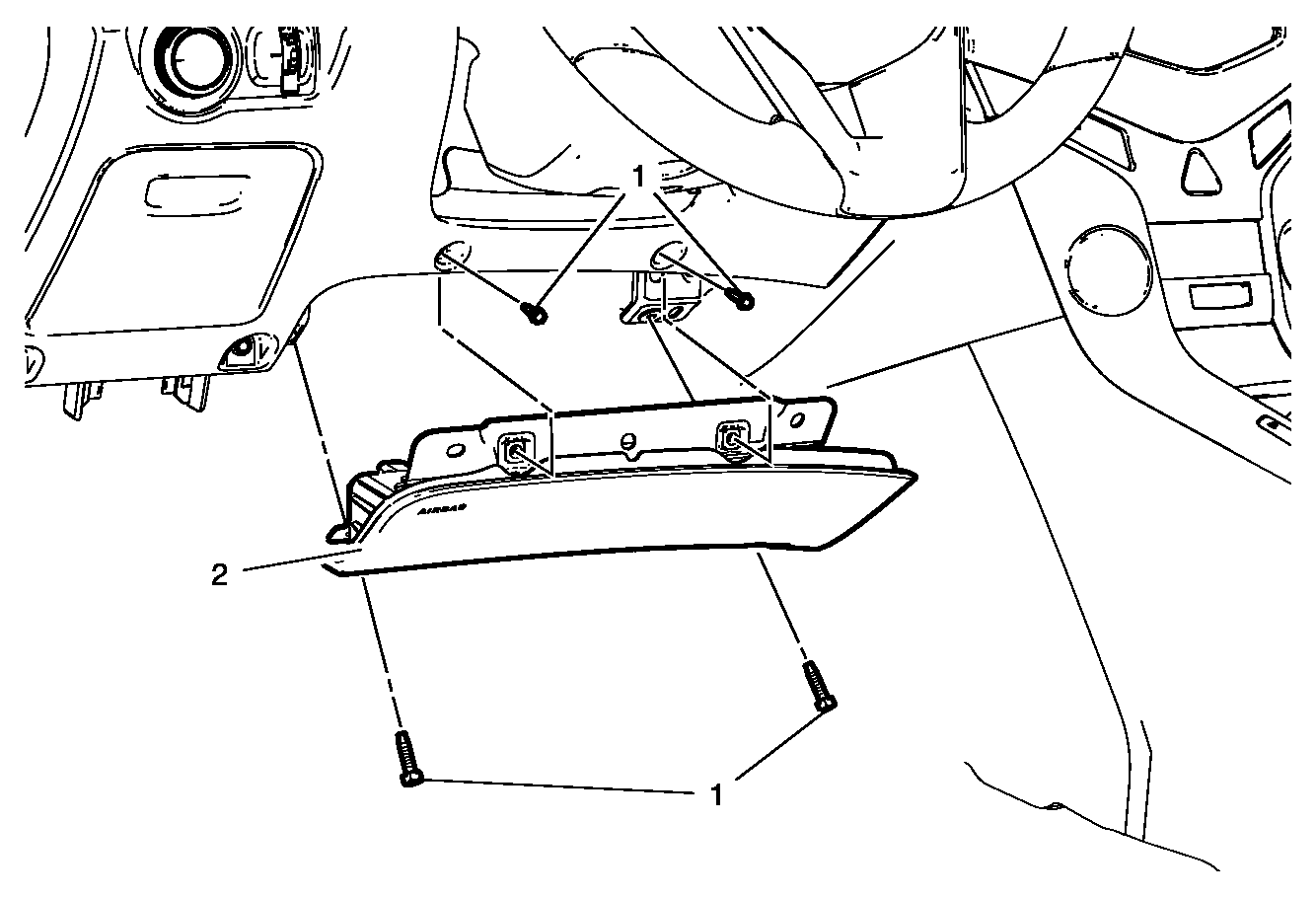

Fig 1: Inflatable Restraint Instrument Panel Lower Module And Fasteners

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures: Disable the SIR system. Refer to SIR Disabling and Enabling .
1	Inflatable Restraint Instrument Panel Lower Module Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Inflatable Restraint Instrument Panel Lower Module Procedure: Disconnect electrical connector.
