Inflatable Restraint Instrument Panel Module Indicator Replacement
WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.
| Preliminary Procedures: Remove the instrument panel accessory bezel. Refer to Instrument Panel Accessory Bezel Replacement . |
|
|---|---|

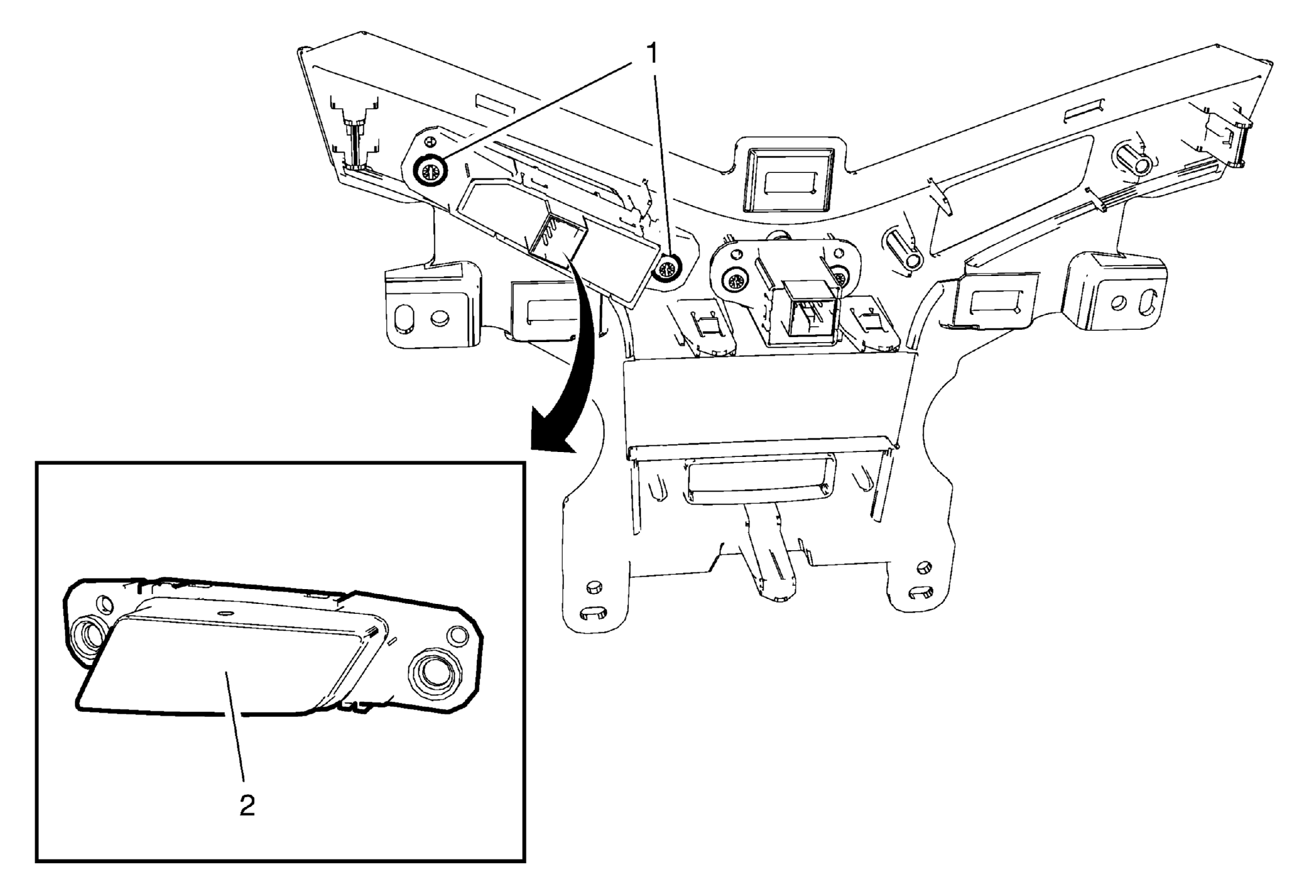

| Callout | Component Name |
| 1 | Inflatable Restraint Instrument Panel Module Indicator Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten:: 1.5 N.m (13 lb in). |
| 2 | Inflatable Restraint Instrument Panel Module Indicator Procedure: Disconnect electrical connector. |
