Instrument Panel Inflatable Restraint Module Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

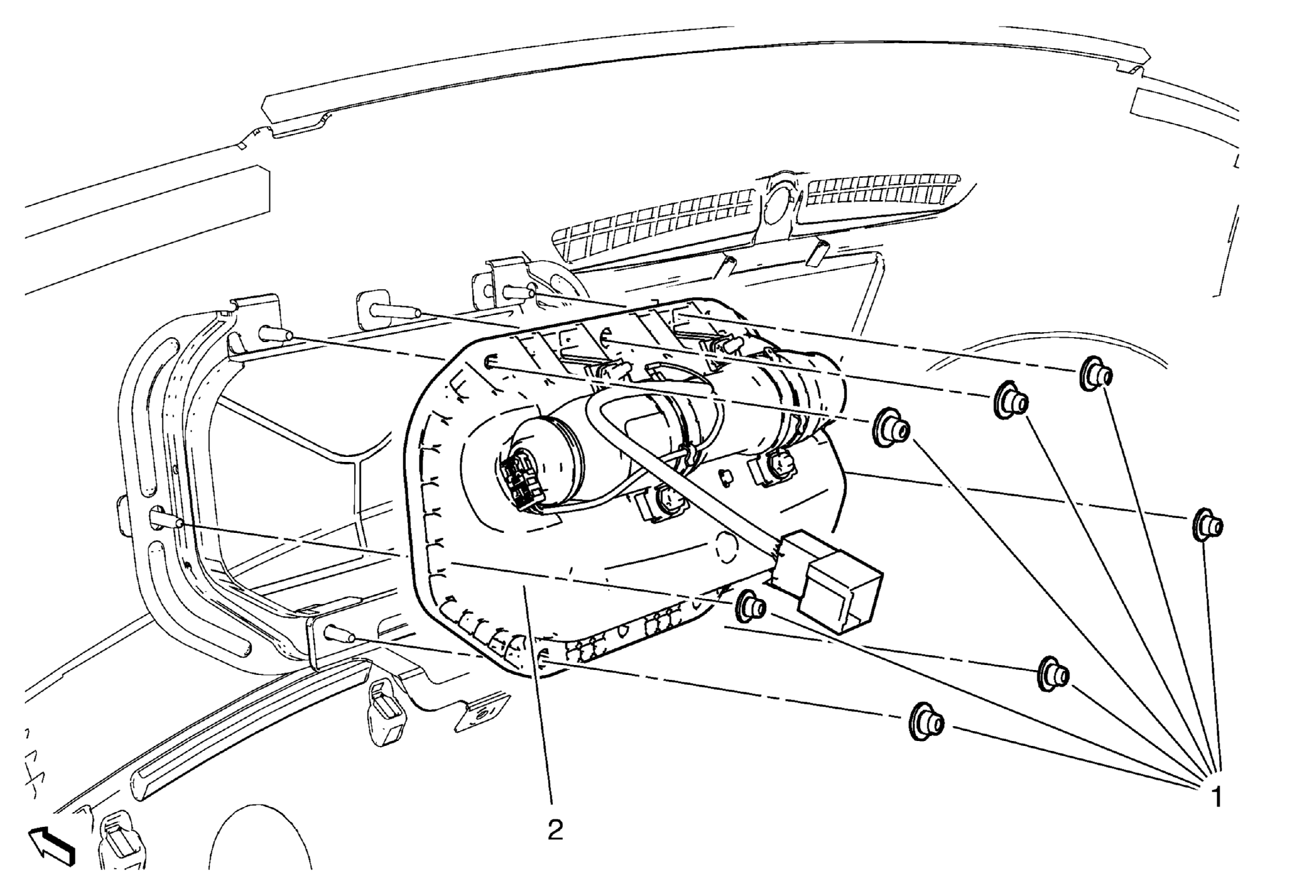

Fig 1: Instrument Panel Inflatable Restraint Module And Nut

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement .
1	Instrument Panel Inflatable Restraint Module Nut (Qty: 7) CAUTION: Refer to Fastener Caution . Tighten: 8 N.m (71 lb in)
2	Instrument Panel Inflatable Restraint Module Tip: Disconnect the electrical connectors.

Callout

Component Name

WARNING: Refer to SIR Warning .

Preliminary Procedures

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement .

Instrument Panel Inflatable Restraint Module Nut (Qty: 7)

CAUTION: Refer to Fastener Caution .

Tighten: 8 N.m (71 lb in)

Instrument Panel Inflatable Restraint Module
Tip: Disconnect the electrical connectors.
