Communication Interface Module Battery Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

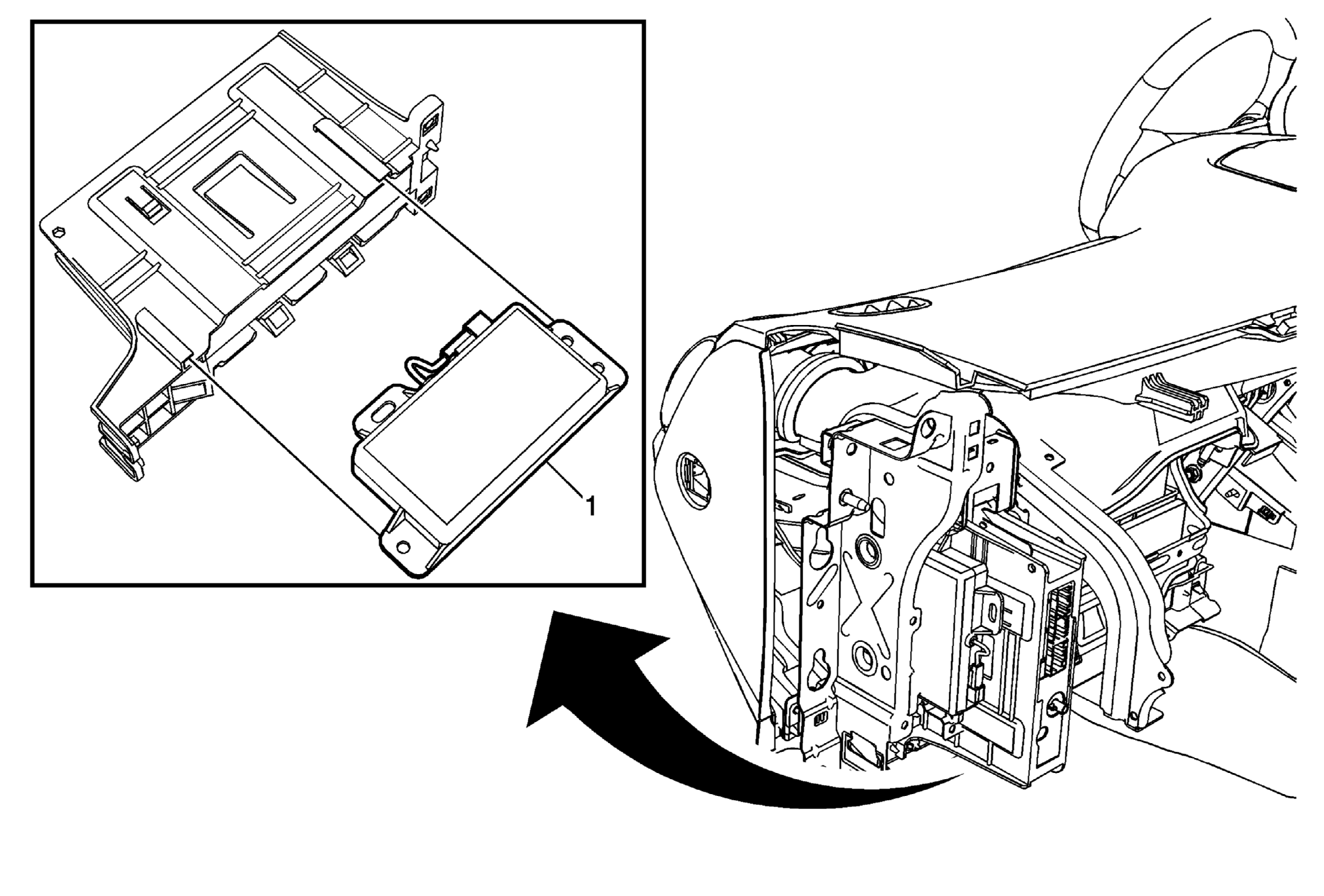

Fig 1: Communication Interface Module Battery

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the communication interface module bracket. Refer to Communication Interface Module Bracket Replacement .
1	Communication Interface Module Battery Procedure Disconnect the electrical connector. Reprogramming of the Module may be necessary after losing battery power. For programming and set up procedures, refer to Control Module References .

Callout

Component Name

Preliminary Procedure:
Remove the communication interface module bracket. Refer to Communication Interface Module Bracket Replacement .

Communication Interface Module Battery

Procedure

Disconnect the electrical connector.
Reprogramming of the Module may be necessary after losing battery power.
For programming and set up procedures, refer to Control Module References .
