Sunroof Panel/Window Guide Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

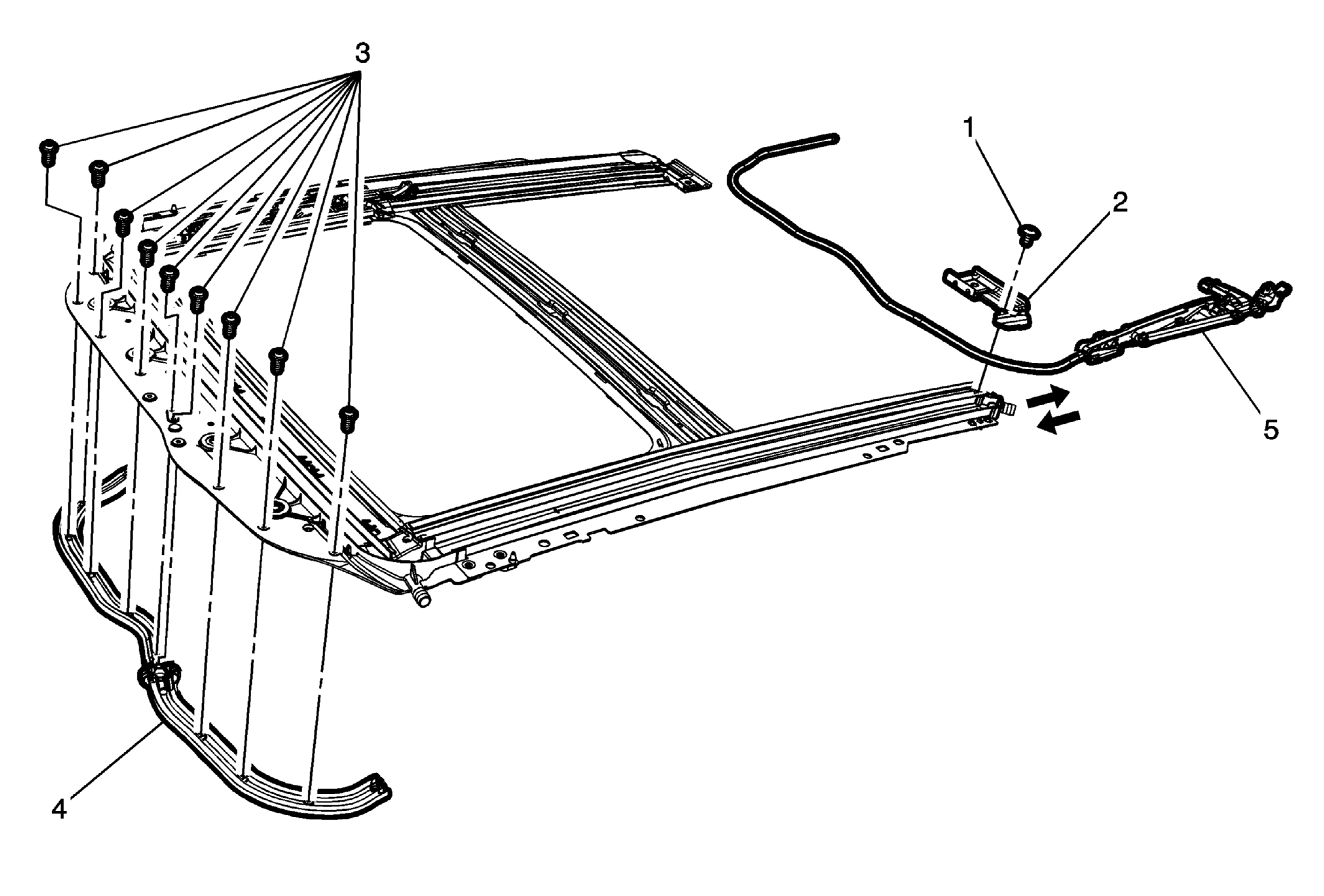

Fig 1: Sunroof Housing Assembly Components
GM3461982Courtesy of GENERAL MOTORS COMPANY
Sunroof Panel/Window Guide Replacement

Callout Component Name
Preliminary Procedure
Remove the sunroof frame. Refer to Sunroof Frame Replacement .
1 Sunroof Housing Rear Support Screw
CAUTION:

Refer to Fastener Caution .


Tighten
7 (62 lb in)
2 Sunroof Housing Rear Support
3 Sunroof Housing Assembly Screw (Qty: 9)
CAUTION:

Refer to Fastener Caution .

4 Sunroof Housing Assembly
5 Sunroof Panel Window Guide Assembly

Procedure

  1. Wipe the perimeter of the frame area with a clean cloth.
  2. Slide the sunroof panel window guide cable forward in order to disengage from the sunroof frame while sliding the sunroof panel window guide rearward in order to disengage from the sunroof frame.
  3. When installing the sunroof panel window guide assembly, ensure the routing of the end of the cable is installed through the frame access holes and into the other guide.
