Front Of Engine Compartment Components

Front Of Engine Compartment Components

Component Name Callout
G24 Windshield Washer Pump 1
B55 Hood Ajar Switch 2
B59R Front Impact Sensor - Right 3
B1 A/C Refrigerant Pressure Sensor 4
B34B Engine Coolant Temperature Sensor 2 5
G10 Cooling Fan Motor 6

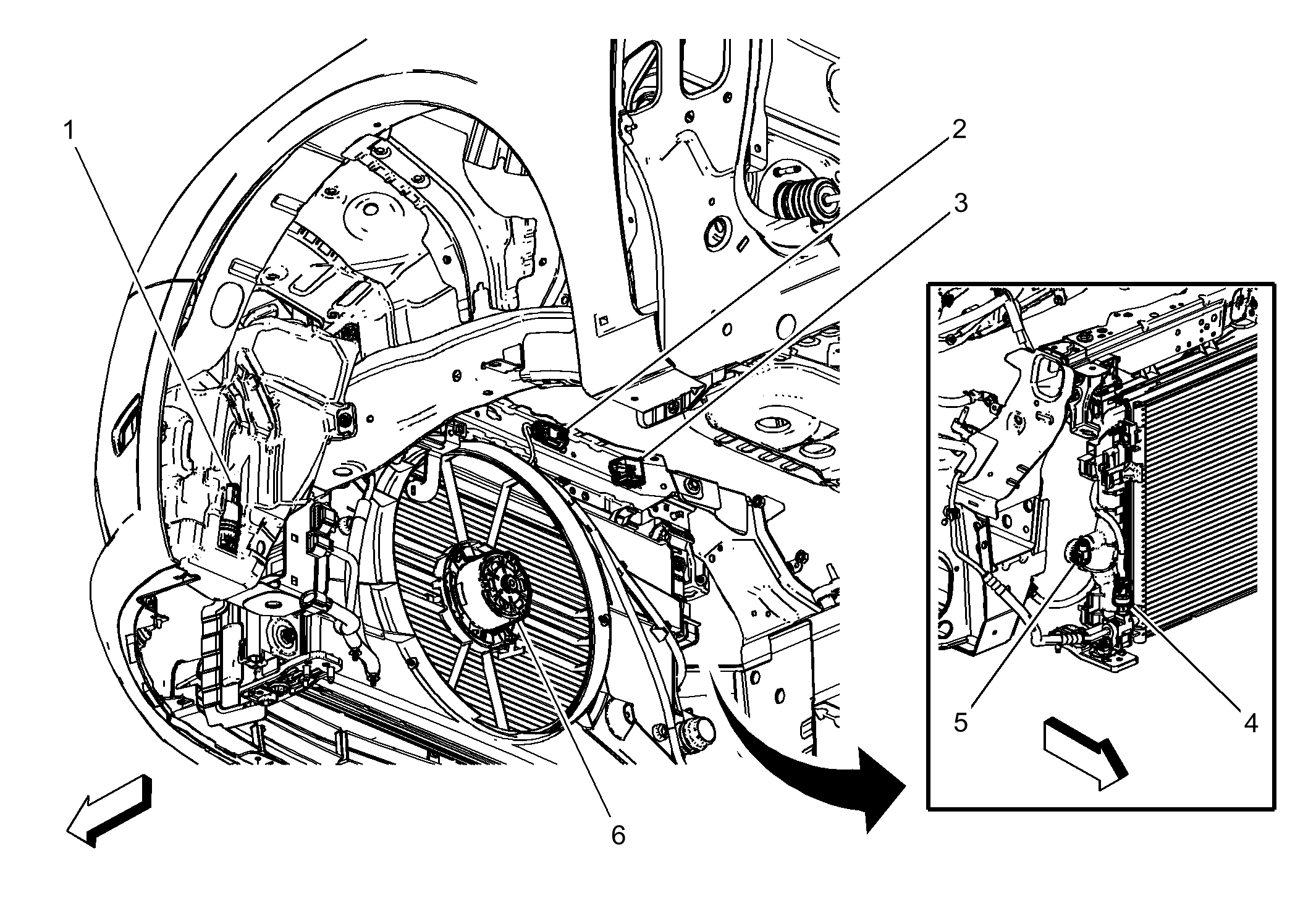

Fig 1: Front Of Engine Compartment
GM2542863Courtesy of GENERAL MOTORS COMPANY
