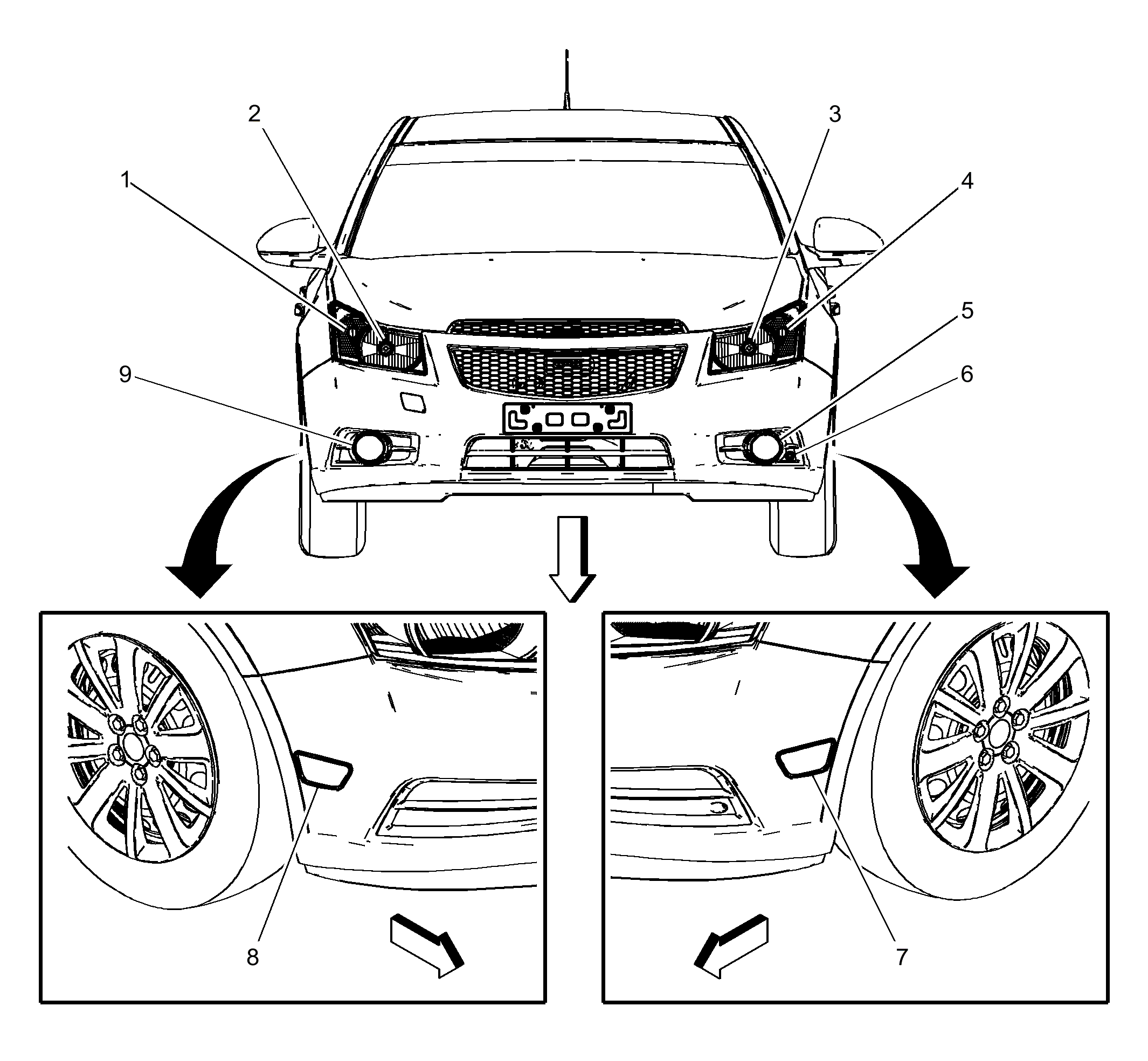

Front Of Vehicle Components
Front Of Vehicle Components
| Component Name | Callout |
|---|---|
| E4P Park/Turn Signal Lamp - Right | 1 |
| E13R Headlamp - Right | 2 |
| E13L Headlamp - Left | 3 |
| E4N Park/Turn Signal Lamp - Left | 4 |
| E29LF Fog Lamp - Left Front (T3U) | 5 |
| B9 Ambient Air Temperature Sensor | 6 |
| E2LF Side Marker Lamp - Left Front | 7 |
| E2RF Side Marker Lamp - Right Front | 8 |
| E29RF Fog Lamp - Right Front (T3U) | 9 |
