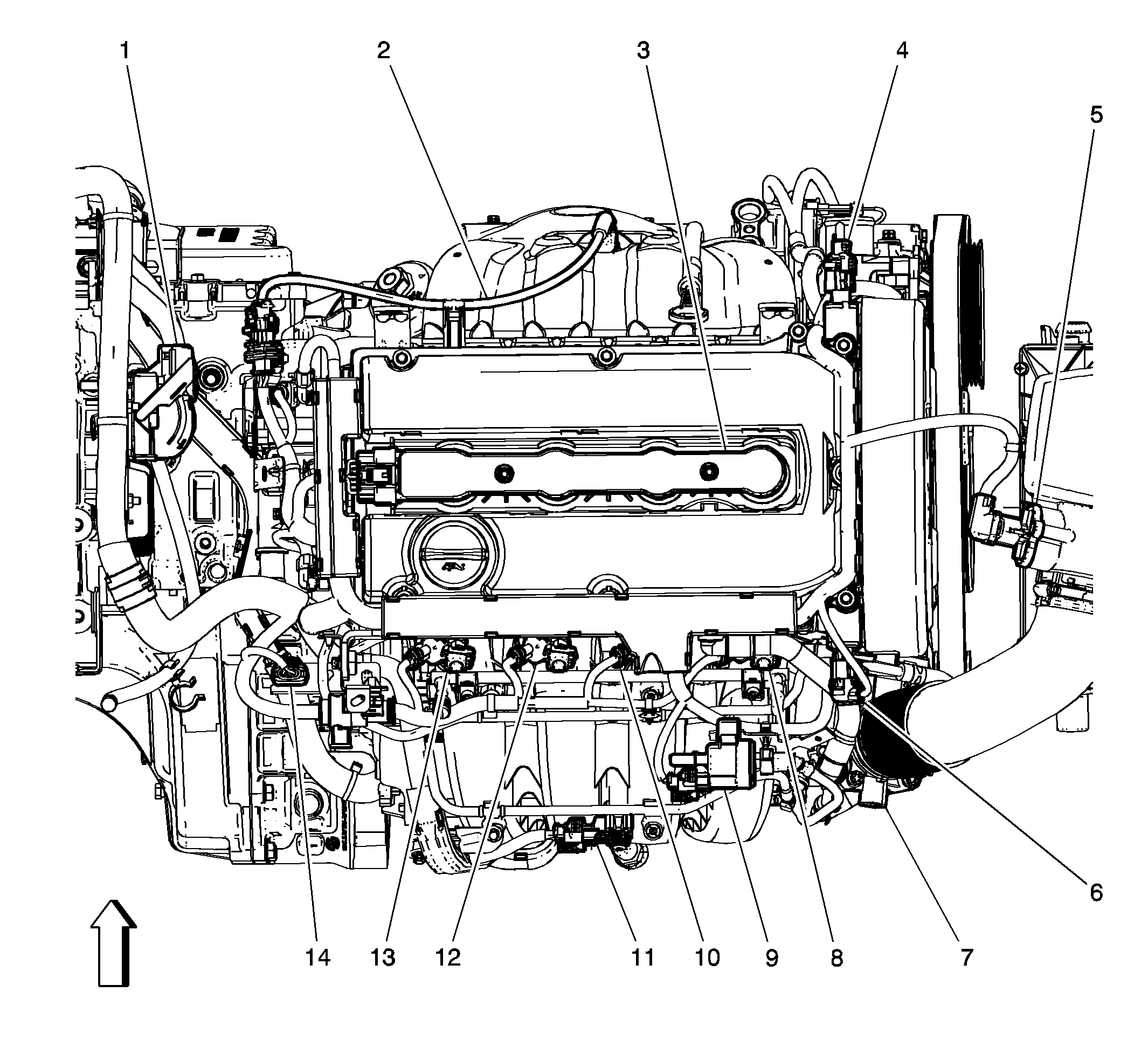

Top Of The Engine Components (LUW)
Top Of The Engine Components (LUW)
| Component Name | Callout |
|---|---|
| K20 Engine Control Module | 1 |
| B52A Heated Oxygen Sensor 1 | 2 |
| T8 Ignition Coil | 3 |
| Q6E Camshaft Position Actuator Solenoid Valve - Exhaust | 4 |
| B75B Mass Air Flow/Intake Air Temperature Sensor | 5 |
| Q6F Camshaft Position Actuator Solenoid Valve - Intake | 6 |
| Q38 Throttle Body | 7 |
| Q17A Fuel Injector 1 | 8 |
| Q12 Evaporative Emission Purge Solenoid Valve | 9 |
| Q17B Fuel Injector 2 | 10 |
| B74 Manifold Absolute Pressure Sensor | 11 |
| Q17C Fuel Injector 3 | 12 |
| Q17D Fuel Injector 4 | 13 |
| B26 Crankshaft Position Sensor | 14 |
