Left Side Of Engine Compartment Components

Left Side Of Engine Compartment Components

Component Name Callout
B108 Air Quality Sensor (C68) 1
B19C Brake Booster Vacuum Switch 2
B20 Brake Fluid Level Switch 3
M75 Windshield Wiper Motor 4
K17 Electronic Brake Control Module 5
X50D Fuse Block - Battery 6
X50A Fuse Block - Underhood 7
B18 Battery Current Sensor 8
P12 Horn 9
C1 Battery 10
B59L Front Impact Sensor - Left 11

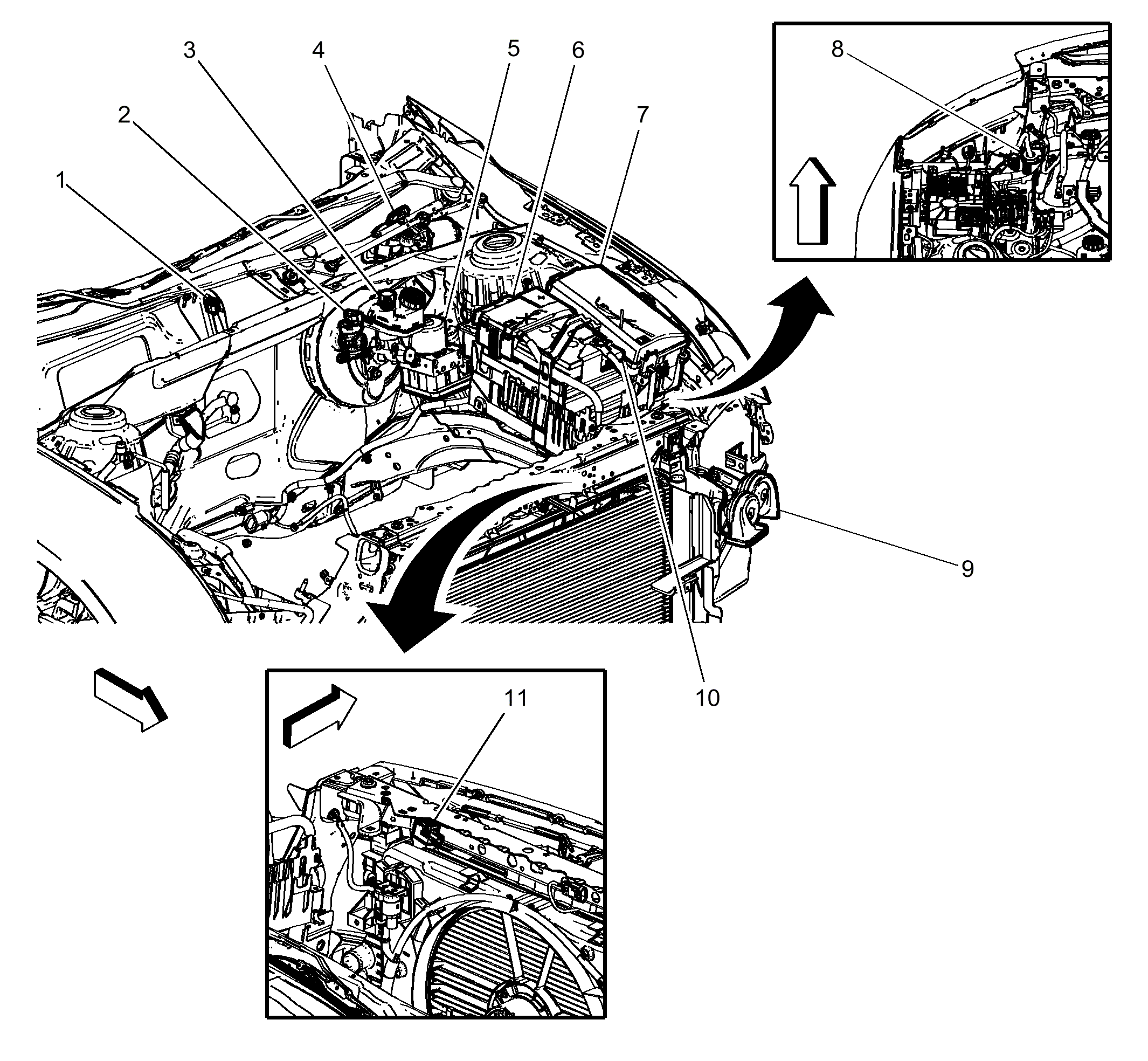

Fig 1: Left Side Of Engine Compartment
GM2542862Courtesy of GENERAL MOTORS COMPANY
