Cruise Control Switch Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

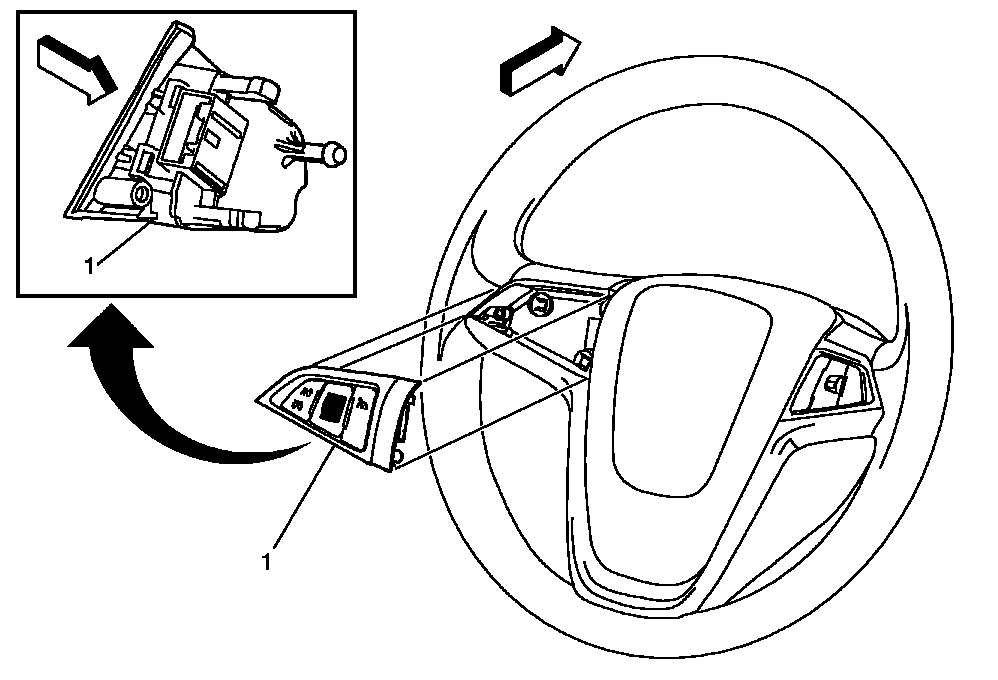

Fig 1: Cruise Control Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to Battery Disconnect Warning . Preliminary Procedures Remove inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement . Unclip v-trim from steering wheel.
1	Cruise Control Switch Procedure: Disconnect electrical connector

Callout

Component Name

WARNING: Refer to Battery Disconnect Warning .

Preliminary Procedures

Remove inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .
Unclip v-trim from steering wheel.

Cruise Control Switch
Procedure:
Disconnect electrical connector
