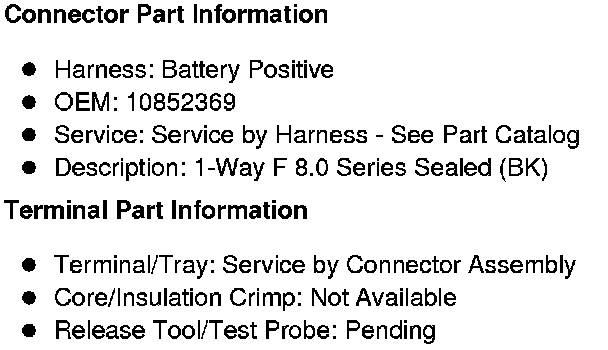

Glow Plug Control Module (GPCM) X1

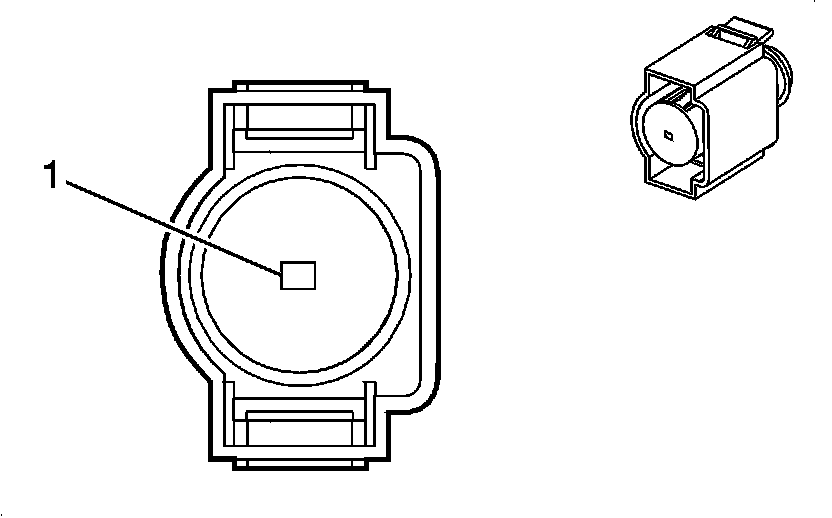

Component Connector End Views

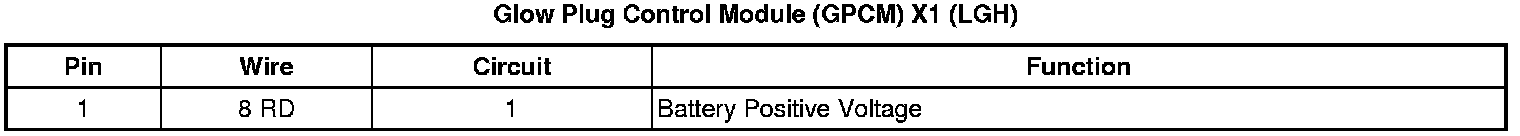

Glow Plug Control Module
(GPCM) X1 (LGH)
