Exhaust Temperature Sensor 4

Wheels/Vehicle Underbody Component Views

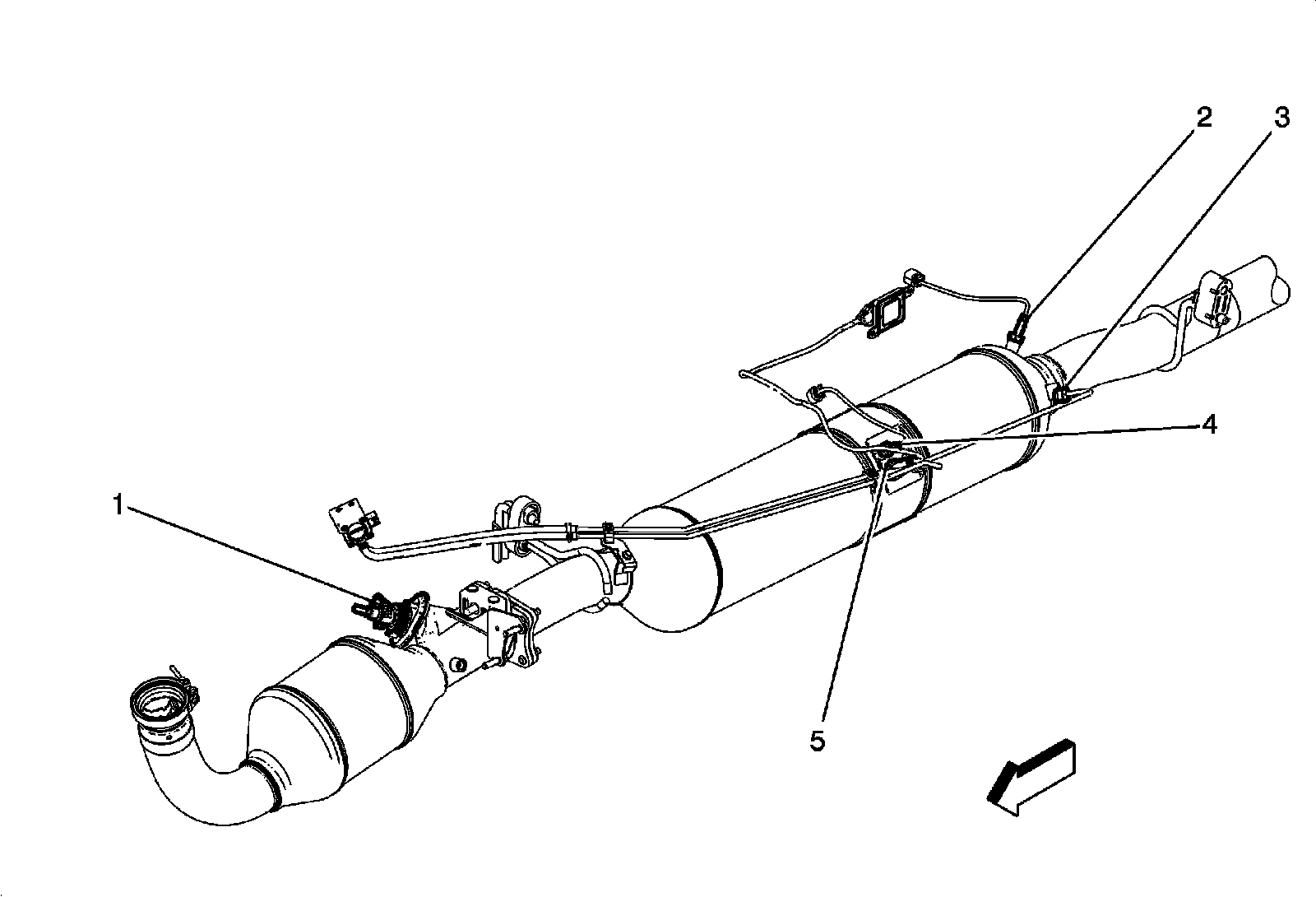

Front of Exhaust System Components (LGH)





1 - Reductant Injector

2 - Exhaust Temperature Sensor 4

3 - Exhaust Pressure Differential Sensor

4 - Exhaust Temperature Sensor 3

5 - Nitrogen Oxides Sensor 2
