Cruise Control System Wiring Schematics
>>
Cruise Control System
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Cruise Control System

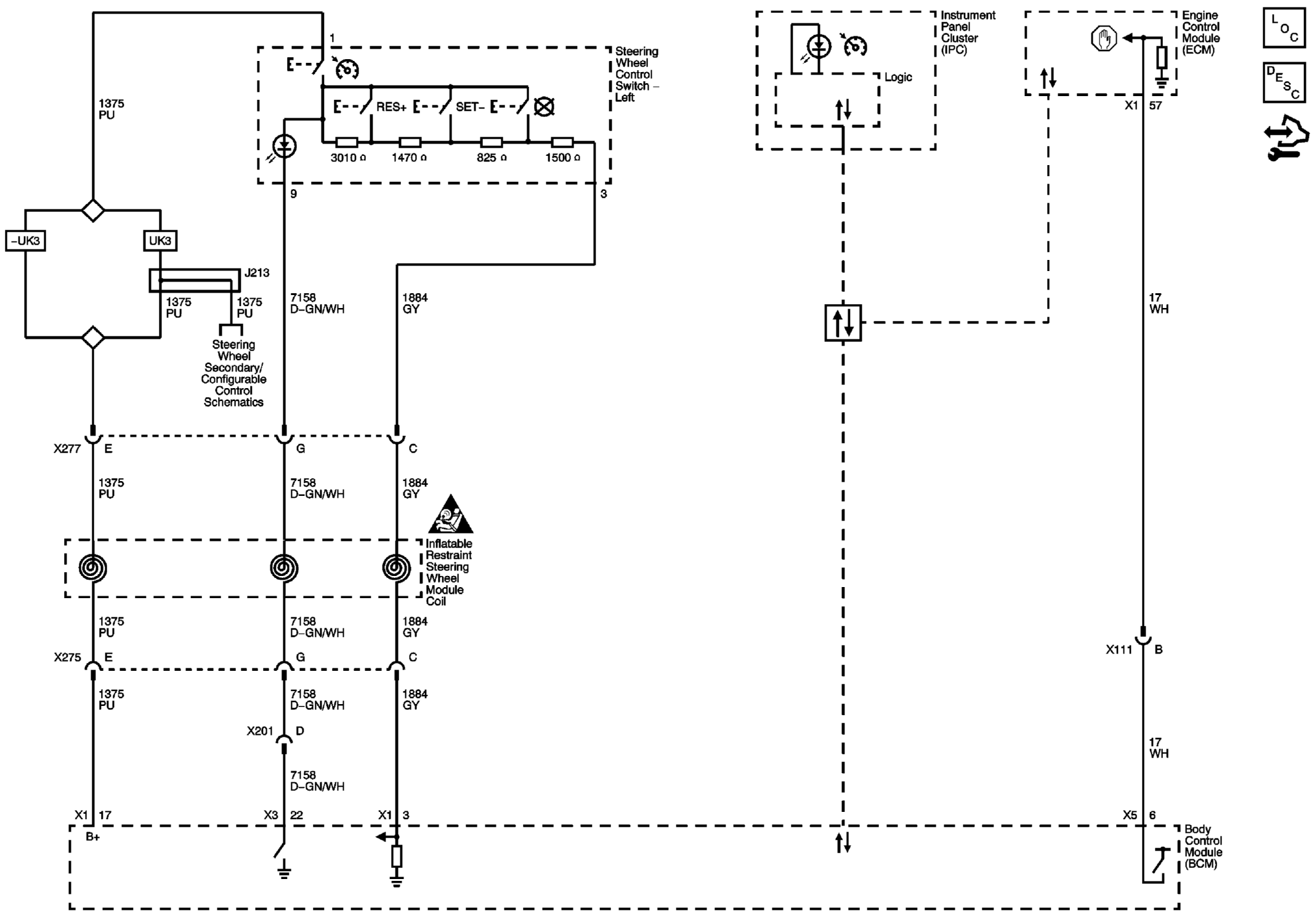

Fig 1: Cruise Control System Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
