Moveable Windows

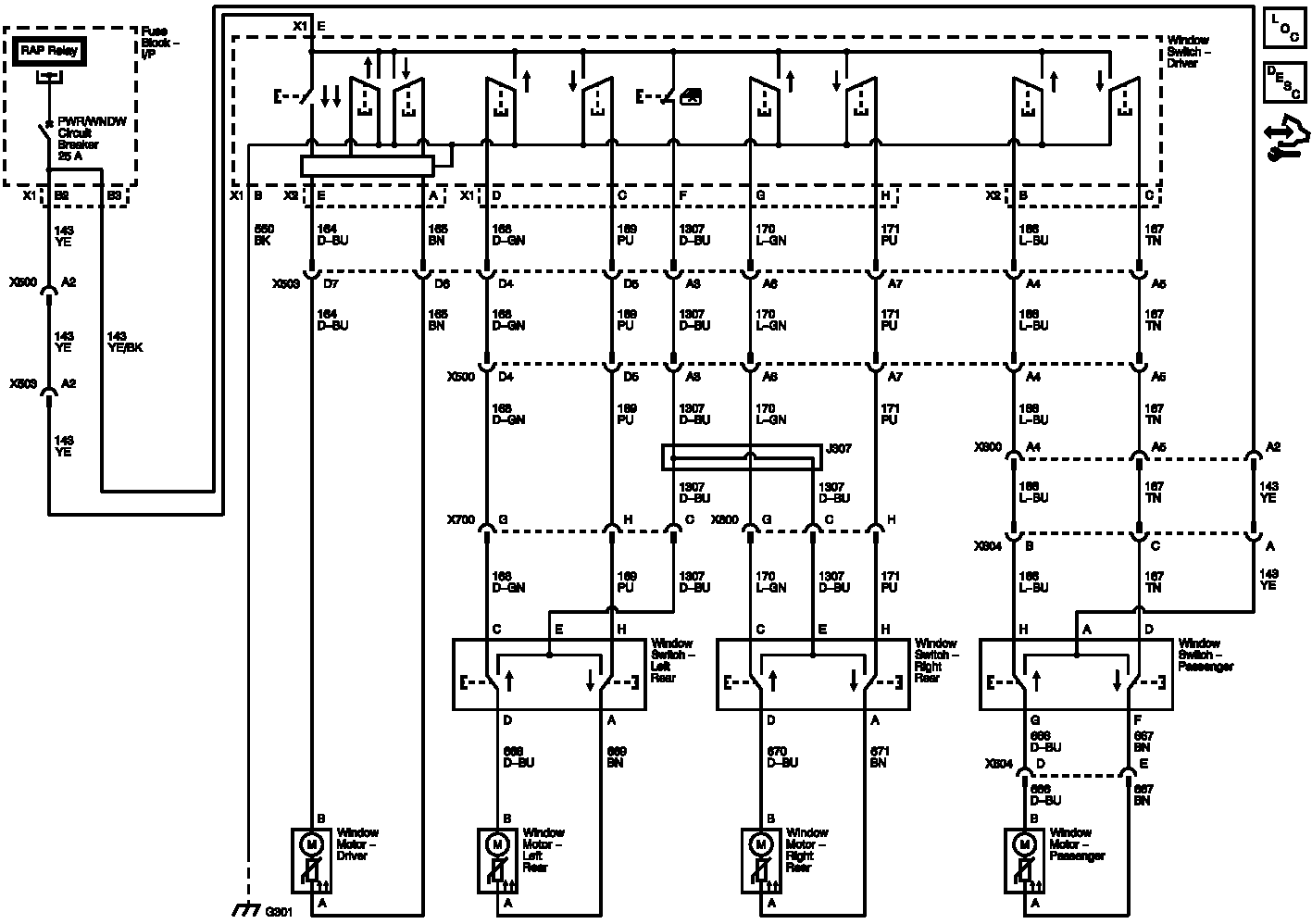

Fig 1: Moveable Windows Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
