Sunroof / Moonroof Module: Locations




Passenger Compartment/Roof Component Views

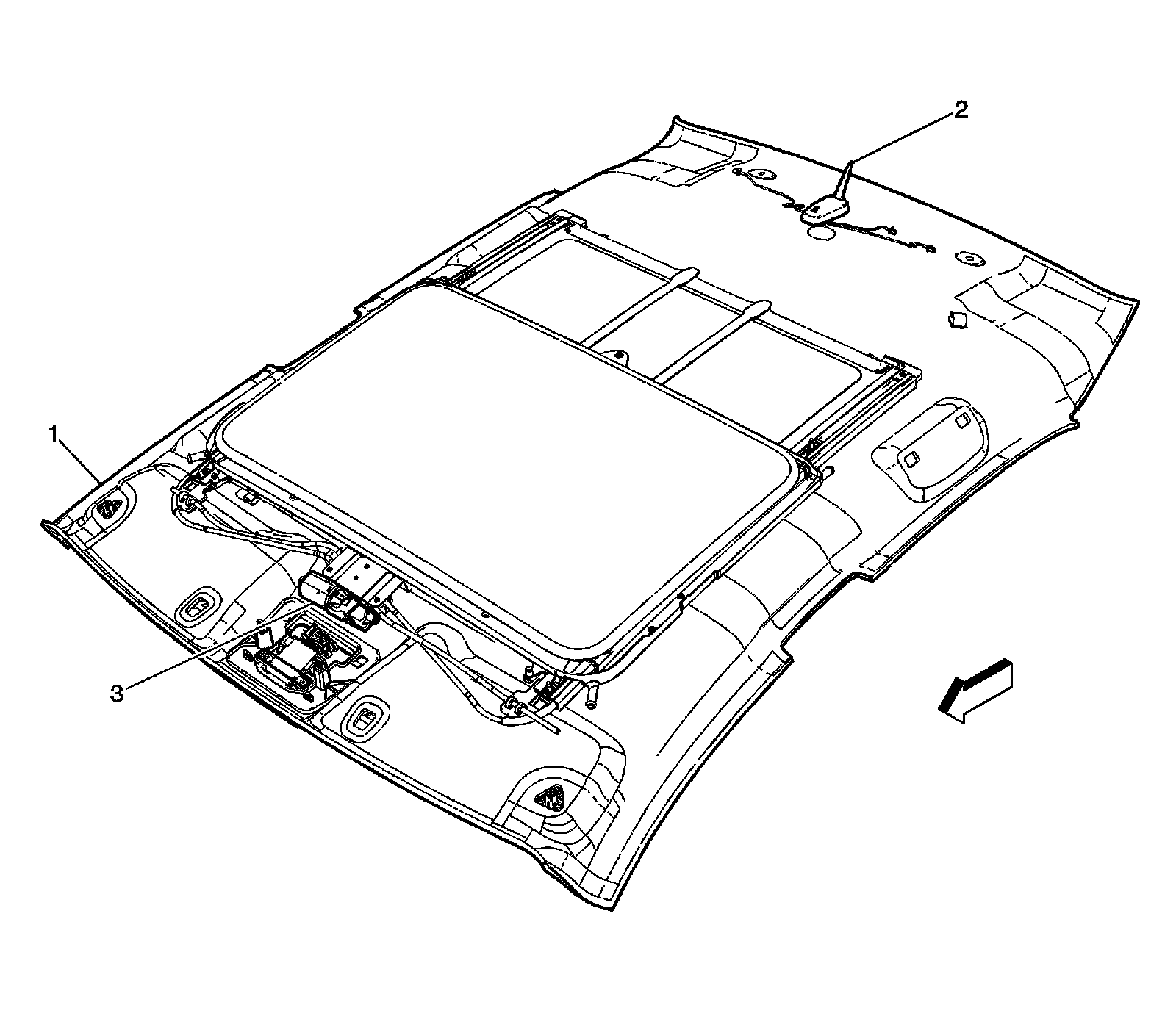

Headliner Components- Top View





1 - Headliner

2 - Cellular and Digital Radio Antenna (UE1 and/or U2K)

3 - Sunroof Control Module (CF5)
