Rear Window Defogger Grid

Luggage Compartment/Rear of Vehicle Component Views

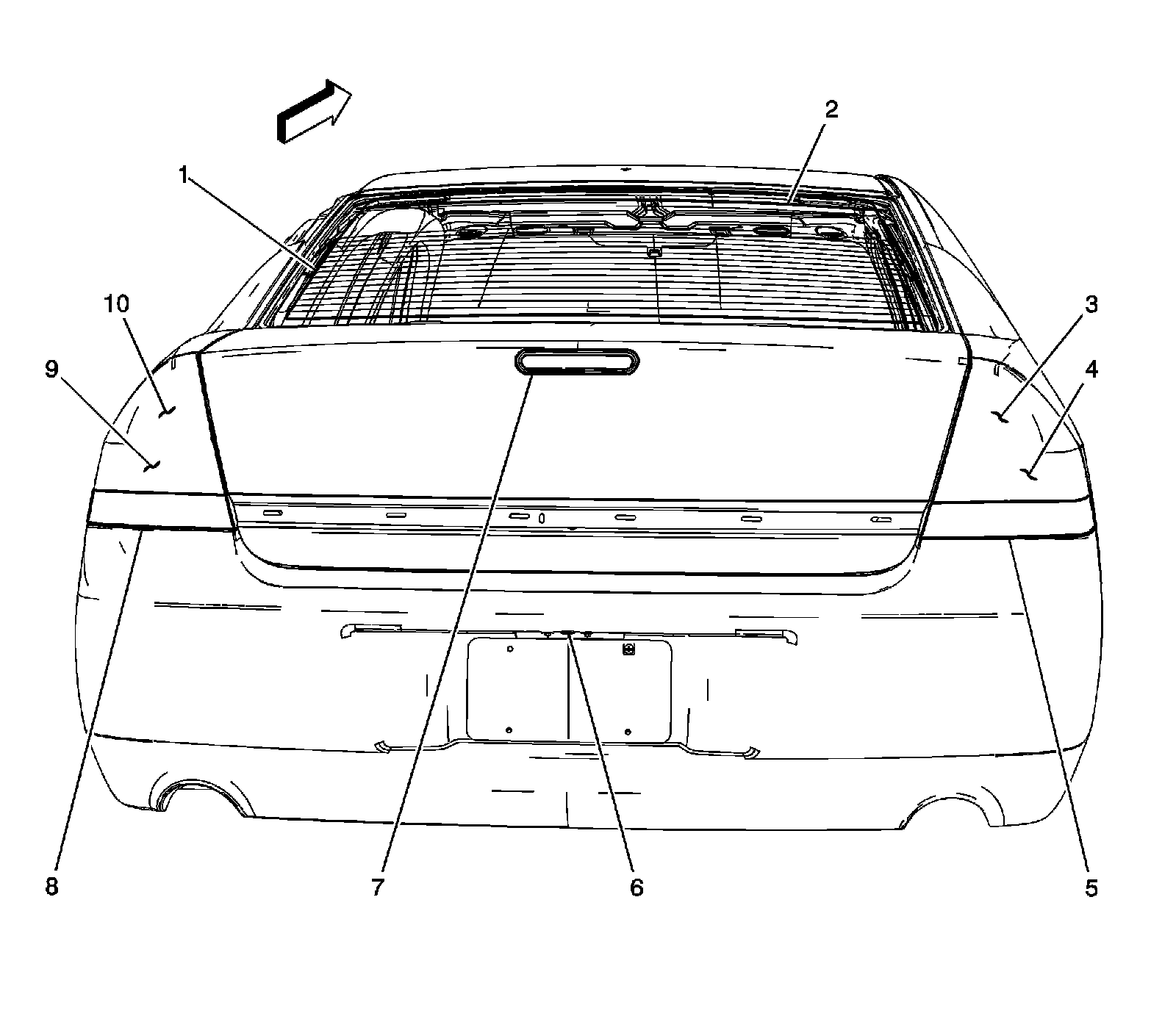

Rear of the Vehicle Components





1 - Rear Window Defogger Grid

2 - Radio Rear Window Antenna

3 - Tail/Stop and Turn Signal Lamp - Right

4 - Tail Lamp - Right

5 - Backup Lamp - Right

6 - License Lamp

7 - Center High Mounted Stop Lamp (CHMSL)

8 - Backup Lamp - Left

9 - Tail Lamp - Left

10 - Tail/Stop and Turn Signal Lamp - Left
