Air Temperature Sensor ( Ambient / Intake ): Locations

Front of Vehicle/Engine Compartment Component Views

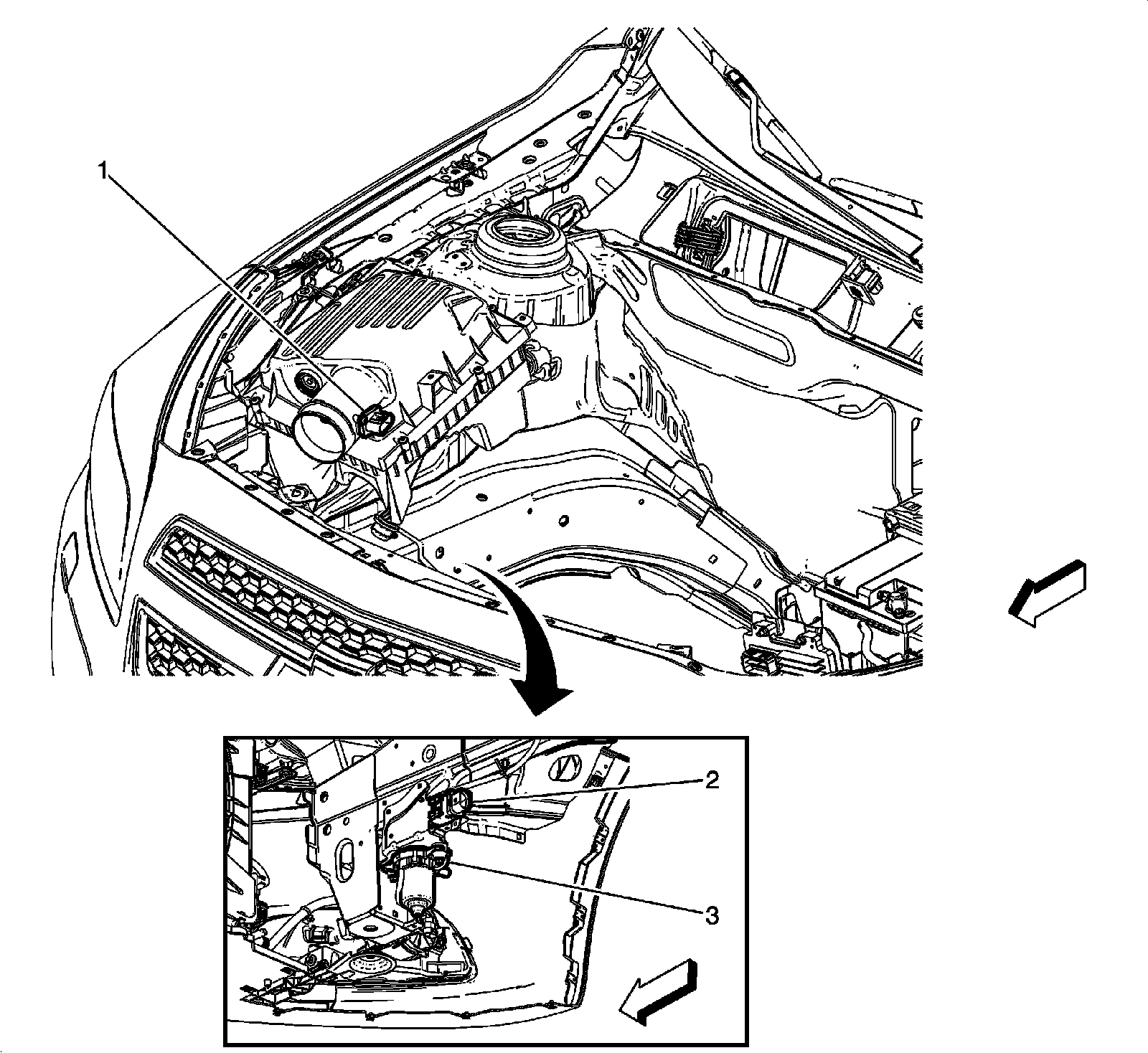

Right Side of Engine Compartment Components (LE9 or LFW)





1 - B75C Multifunction Intake Air Sensor

2 - KR14 Brake Booster Pump Motor Relay

3 - M9 Brake Booster Pump Motor
