Entertainment System Control Module: Locations

Instrument Panel/Center Console Component Views

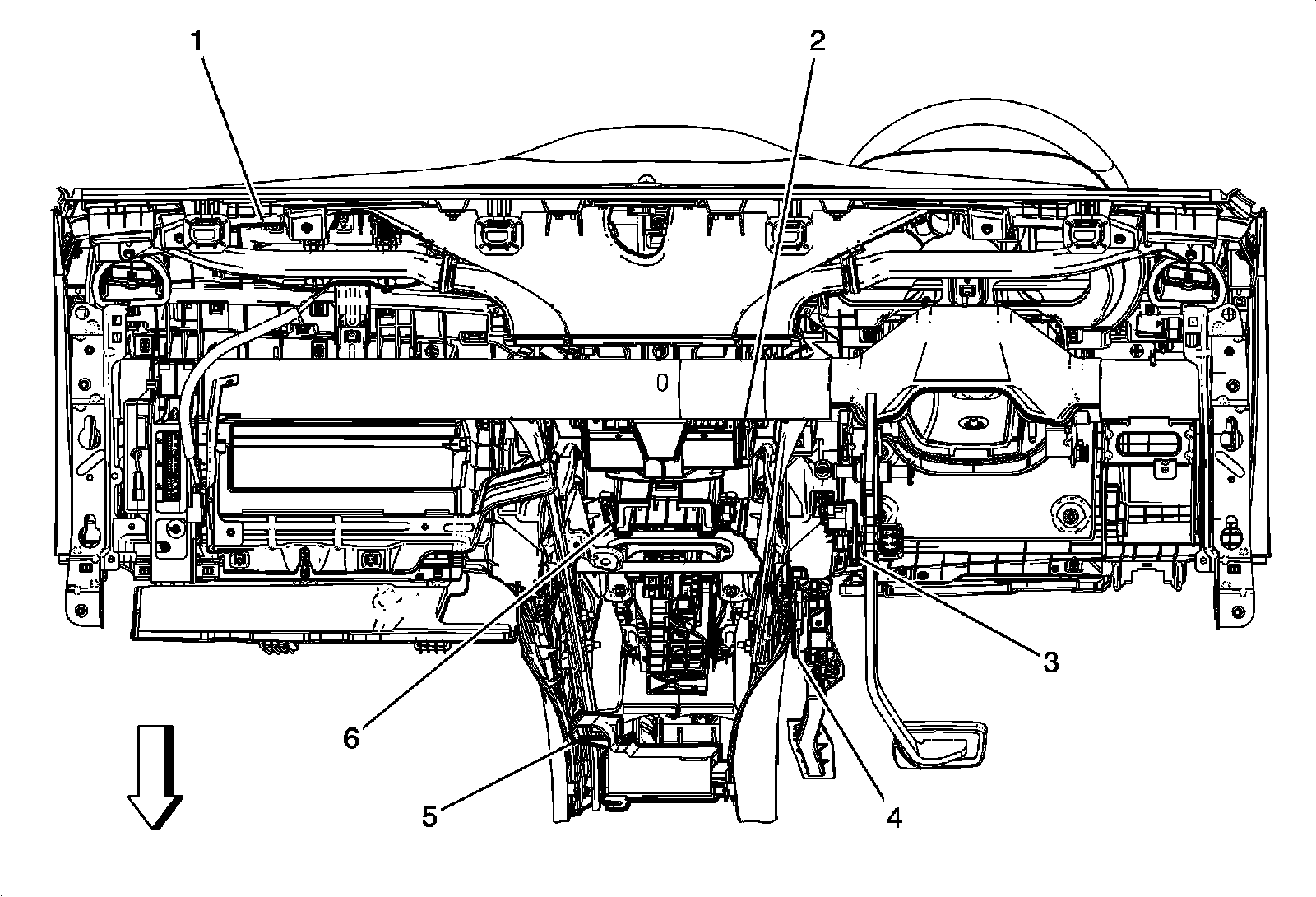

Behind the Center of the Instrument Panel





1 - F101 Passenger Instrument Panel Air Bag

2 - A11 Radio

3 - B22 Brake Pedal Position Sensor

4 - B107 Accelerator Pedal Position Sensor

5 - K9 Body Control Module

6 - T11 Multimedia Player Interface Module
