Control Assembly: Locations

Instrument Panel/Center Console Component Views

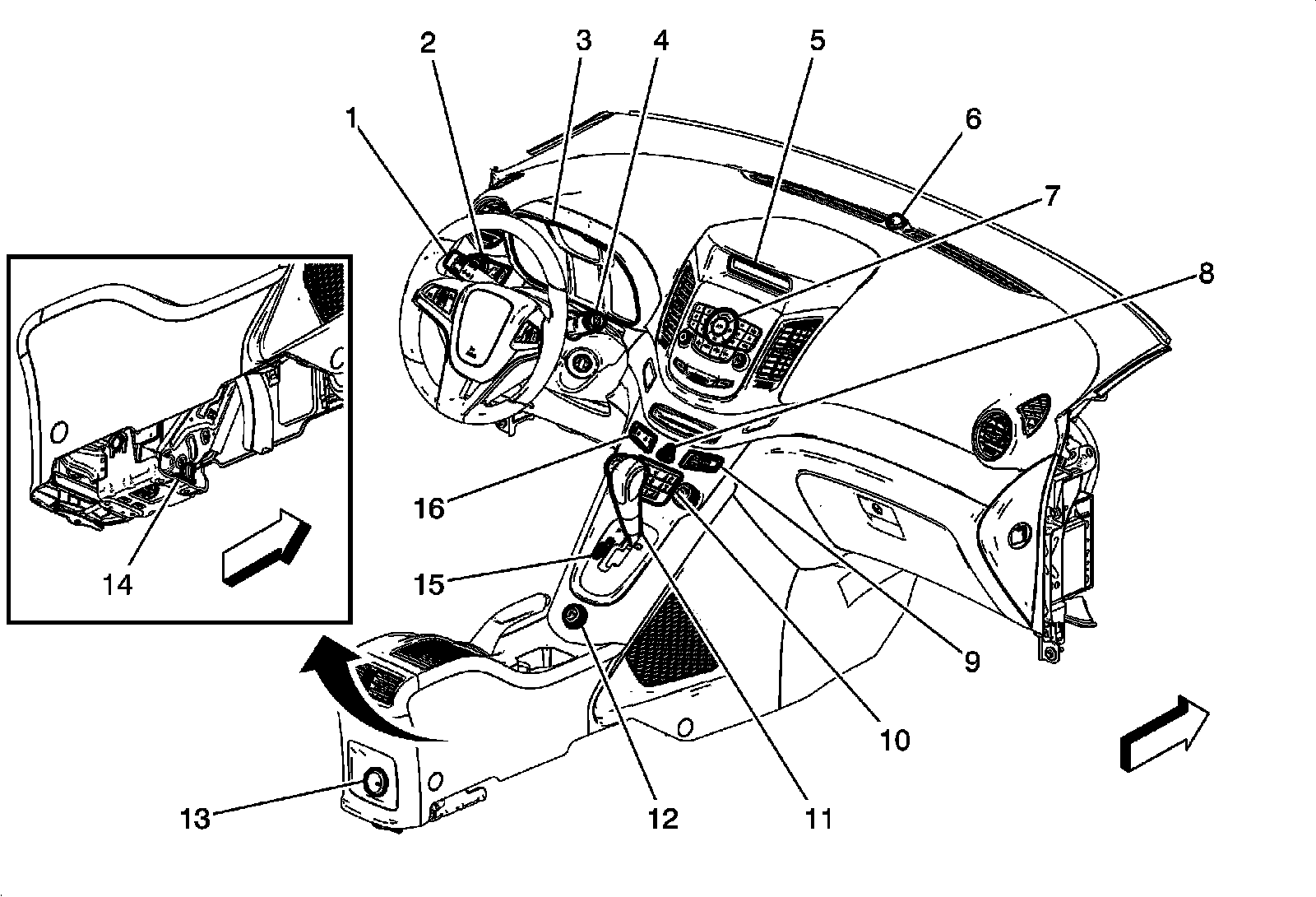

Instrument Panel and Center Console





1 - S78 Turn Signal/Multifunction Switch

2 - S30 Headlamp Switch

3 - P16 Instrument Cluster

4 - S82 Windshield Wiper/Washer Switch

5 - P17 Info Display Module

6 - B10B Ambient Light/Sunload Sensor

7 - A22 Radio Controls

8 - S26 Hazard Warning Switch

9 - S40 Passenger Air Bag Disable Switch

10 - A26 HVAC Controls

11 - S3 Transmission Shift Lever

12 - E32 Cigarette Lighter Receptacle

13 - X80H Accessory Power Receptacle - Center Console

14 - B80 Park Brake Switch

15 - P2 Transmission Shift Lever Position Indicator

16 - S13D Door Lock Switch - Driver
