Data Link Connector: Locations

Harness Routing Views

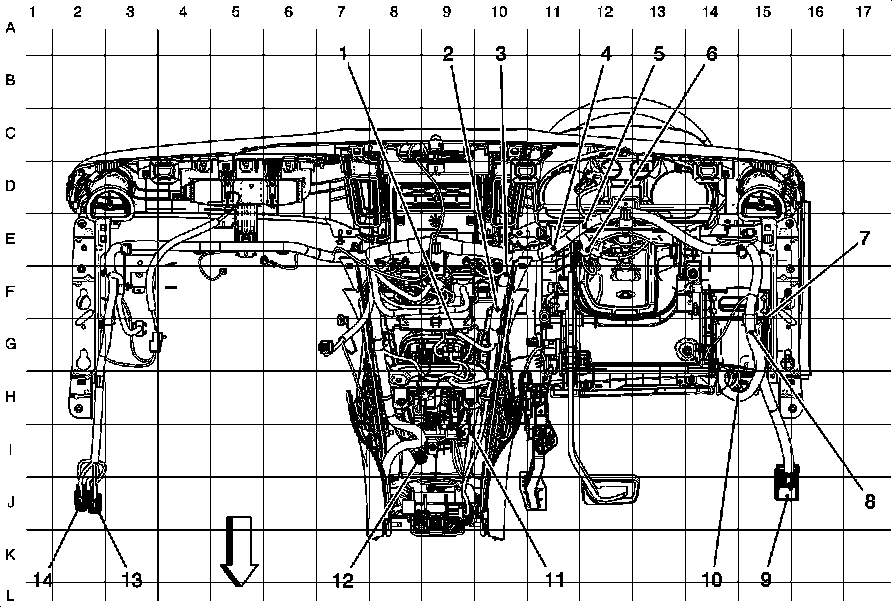

Instrument Panel Harness Routing- Front of Instrument Panel





1 - J214

2 - J220

3 - J211

4 - J204

5 - J200

6 - J209

7 - X51A Fuse Block- Instrument Panel

8 - J201

9 - X200

10 - X84 Data Link Connector

11 - J212

12 - X212

13 - X202

14 - X201
