Radio Replacement

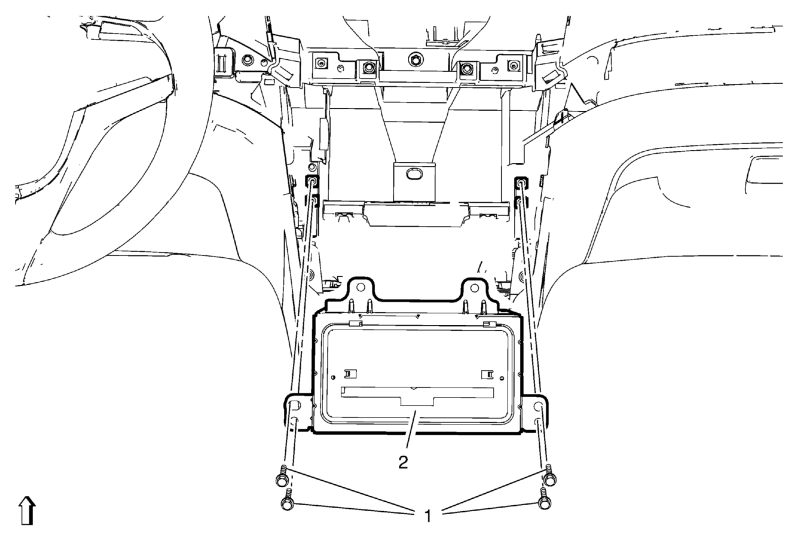

Fig 1: Radio

GM2372694

Courtesy of GENERAL MOTORS COMPANY

Radio Replacement

Callout

Component Name

Preliminary Procedure

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (without Start/Stop System) .
Remove the radio control switch. Refer to Radio Control Switch Replacement .
Remove the instrument panel molding. Refer to Instrument Panel Molding Replacement - Passenger Side .

1

Radio Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

2

Radio

Procedures

Disconnect electrical components.
After repairs, refer to Control Module References for programming and set up information.
