Cigarette Lighter Receptacle Retainer Replacement

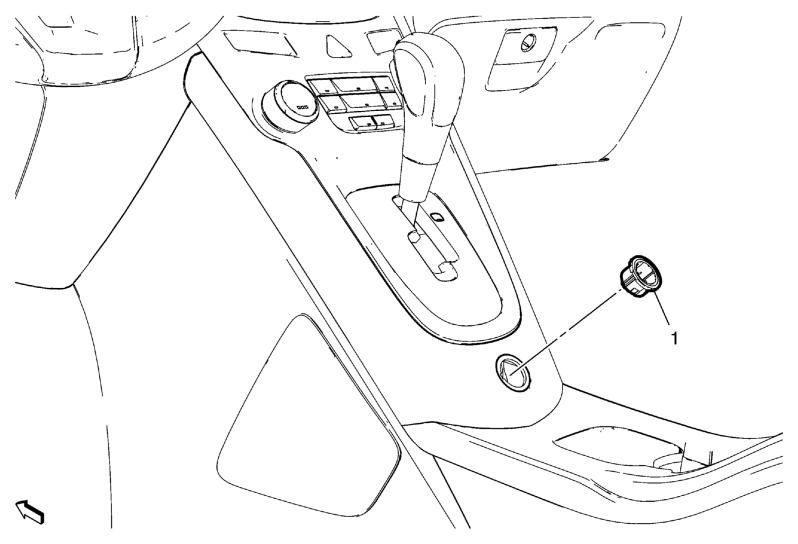

Fig 1: Cigarette Lighter Receptacle Retainer

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (without Start/Stop System) . Remove cigarette lighter receptacle. Refer to Cigarette Lighter Receptacle Replacement .
1	Cigarette Lighter Receptacle Retainer

Callout

Component Name

Preliminary Procedures

Cigarette Lighter Receptacle Retainer
