Engine Components - Front (LAF 1 of 2)

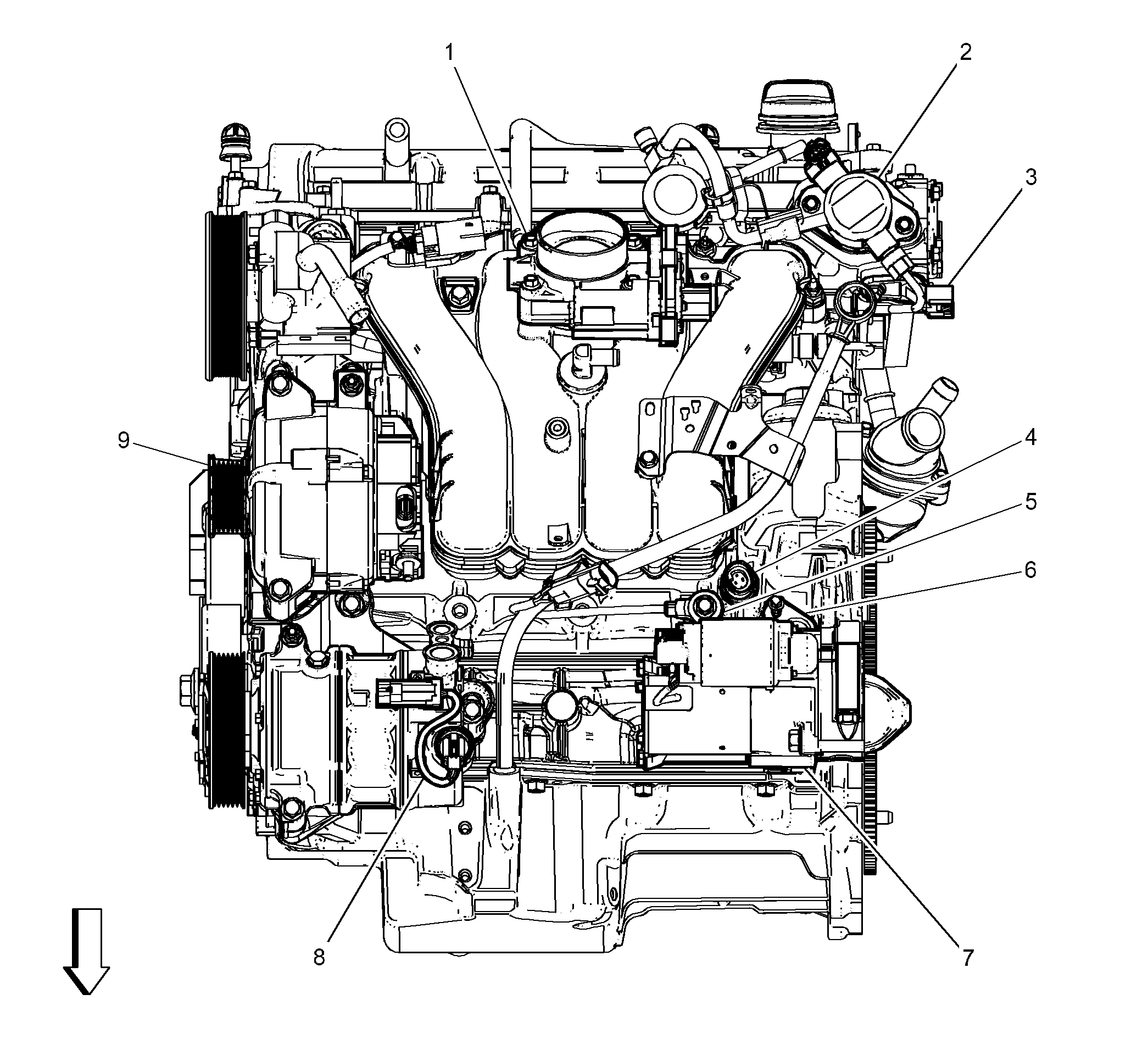

Fig 1: Identifying Front Engine Components (LAF 1 of 2)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Q38 Throttle Body
2	G18 High Pressure Fuel Pump
3	B23F Camshaft Position Sensor - Intake
4	B37 Engine Oil Pressure Switch
5	B68 Knock Sensor
6	B26 Crankshaft Position Sensor
7	M64 Starter Motor
8	Q46 A/C Compressor Solenoid Valve
9	G13 Generator
