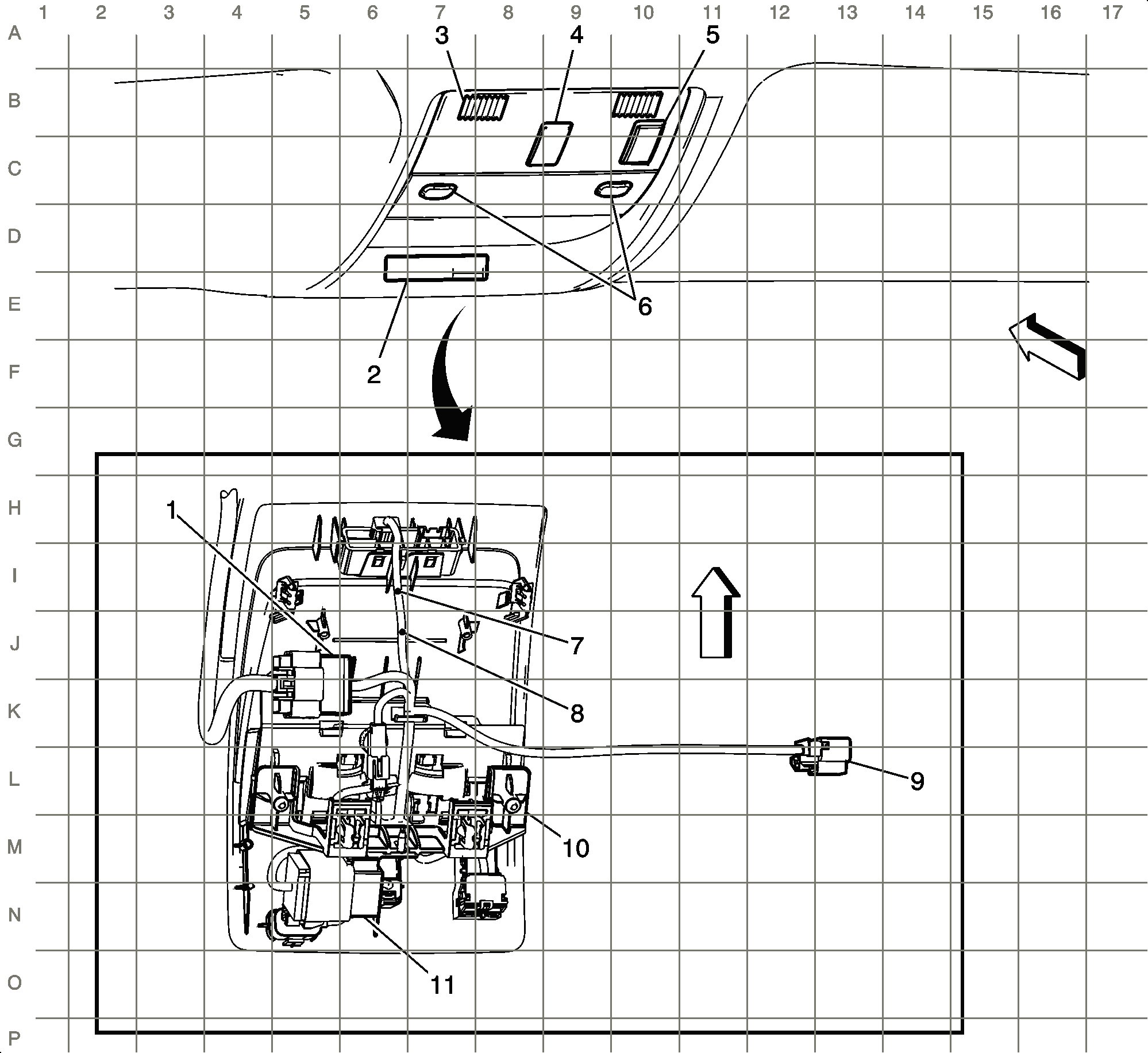

Overhead Console Components

Passenger Compartment/Roof Component Views

Overhead Console Components




1 - X304 (except MEX)
2 - Inflatable Restraint Passenger Air Bag On/Off Indicator (AL0/C99 except MEX)
3 - Cellular Telephone Microphone (UE1/U3U/UVB)
4 - Roof Beacon Switch (5X7/5Y0/TRW)
5 - Sliding Rear Window Switch (A48)
6 - Dome/Reading Lamps - Front
7 - J322 (TRW/UG1/A48)
8 - J323
9 - X313 (CF5/TRW/5X7/5Y0)
10 - Blunt Cut - Roof Mounted Beacon Provision (TRW)
11 - Roof Beacon Relay (TRW)
