Steering Wheel Controls

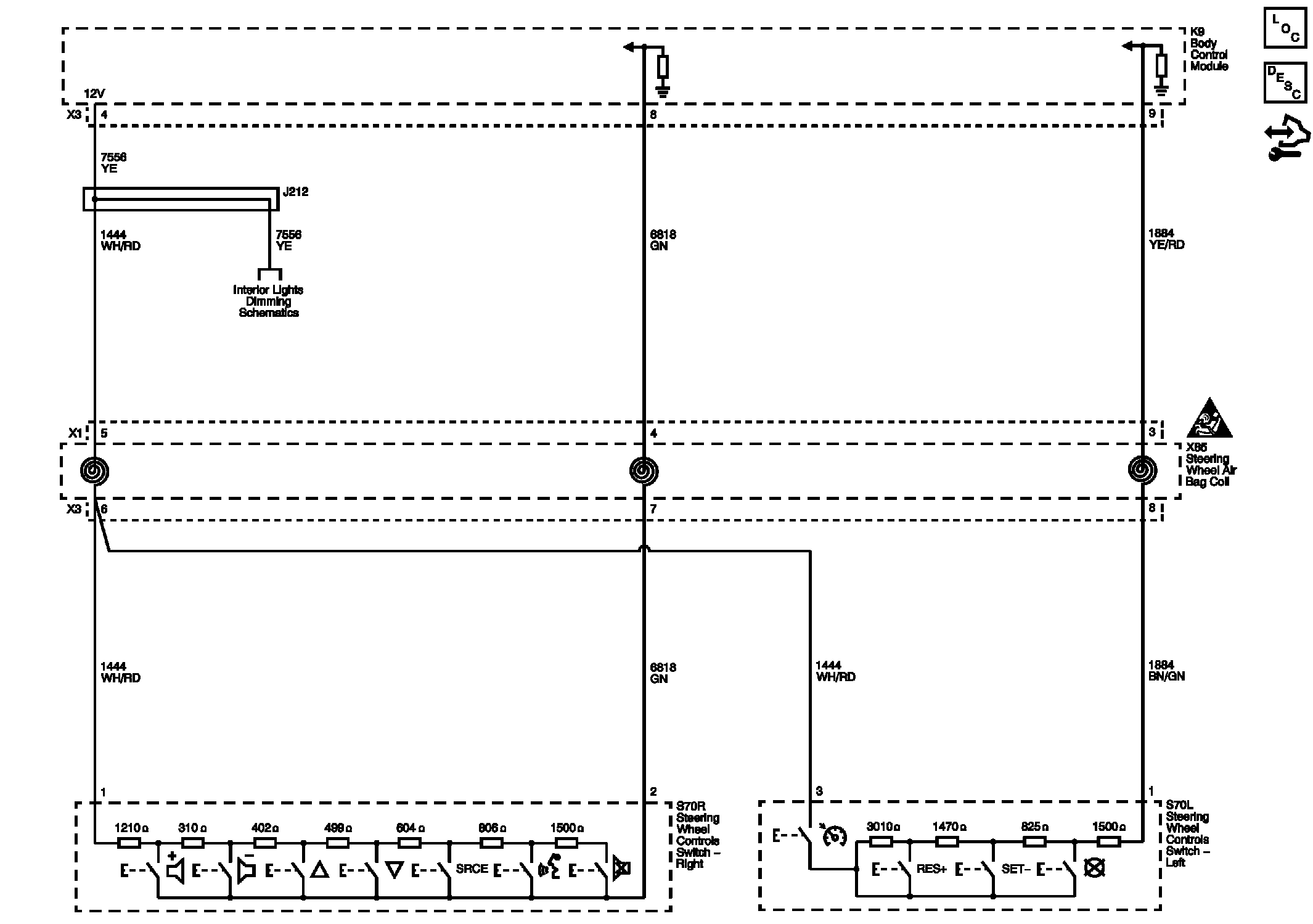

Fig 1: Steering Wheel Controls Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
