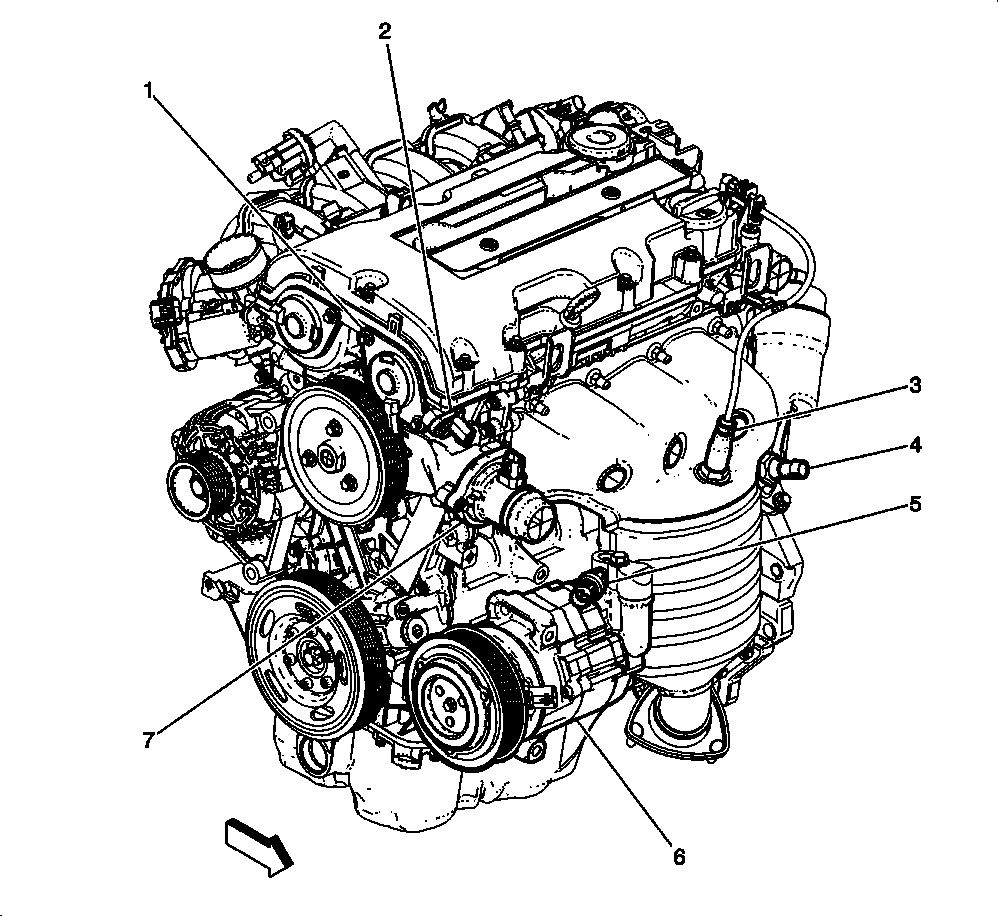

Right Front of Engine Components - 1.4L (LUV)
Right Front of Engine Components - 1.4L (LUV)
| Component Name | Callout |
|---|---|
| Q6E Camshaft Position Actuator Solenoid Valve - Exhaust | 1 |
| B23E Camshaft Position Sensor - Exhaust | 2 |
| B52A Heated Oxygen Sensor 1 | 3 |
| B37 Engine Oil Pressure Switch | 4 |
| B1 A/C Refrigerant Pressure Sensor (C60) | 5 |
| Q2 A/C Compressor Clutch (C60) | 6 |
| E41 Engine Coolant Thermostat Heater | 7 |
