Harness Locations

Harness Routing Views

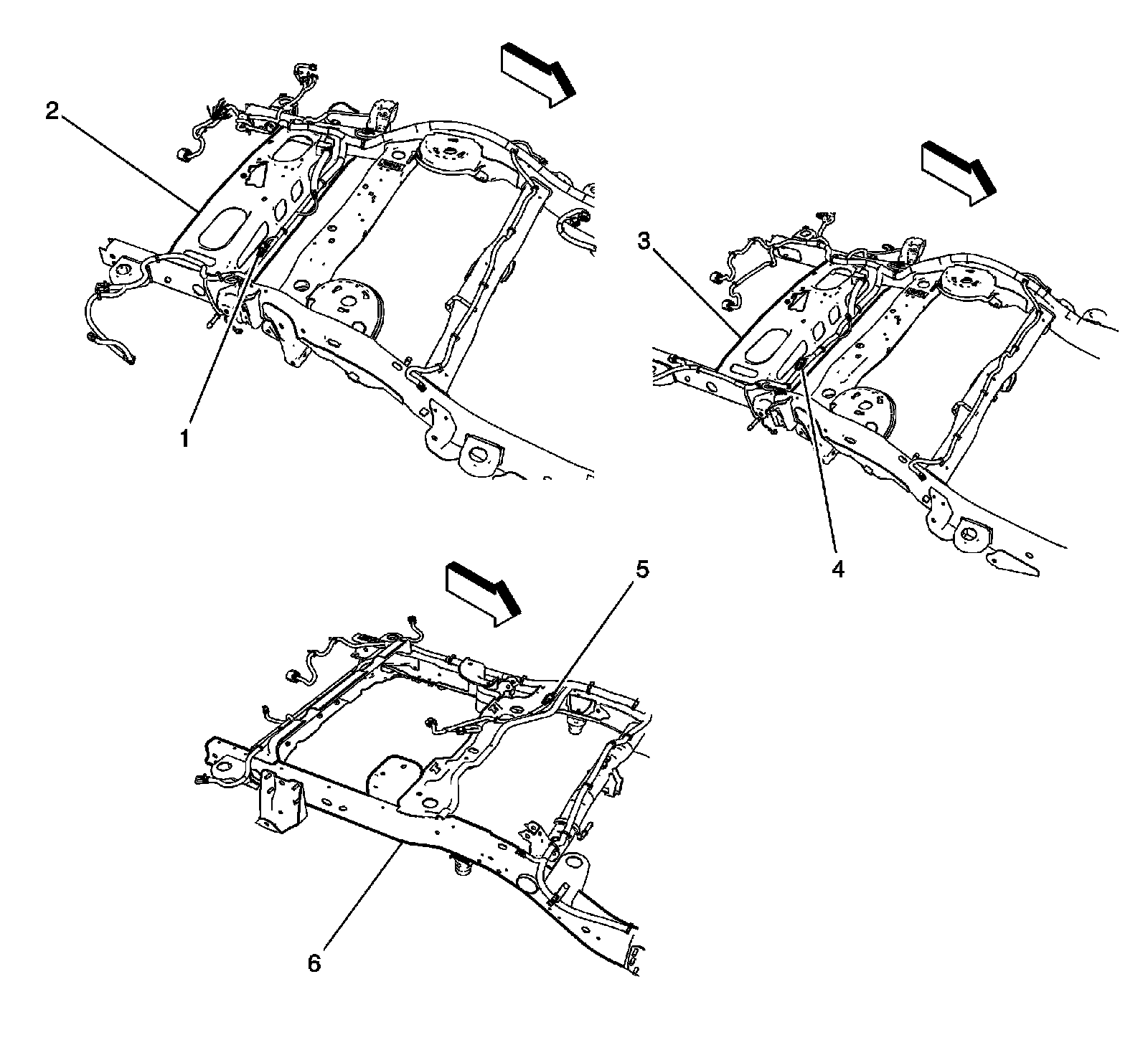

Rear Underbody Components (except HP2)




1 - Data Link Resistor 1
2 - Rear Frame - Short Wheelbase
3 - Rear Frame - Long Wheelbase
4 - Data Link Resistor 1
5 - Data Link Resistor 1
6 - Rear Frame - Long Wheelbase HD
