Camshaft Position Sensor Replacement - Bank 1 (Right Side) Intake

Camshaft Position Sensor Replacement - Bank 1 (Right Side) Intake

Removal Procedure

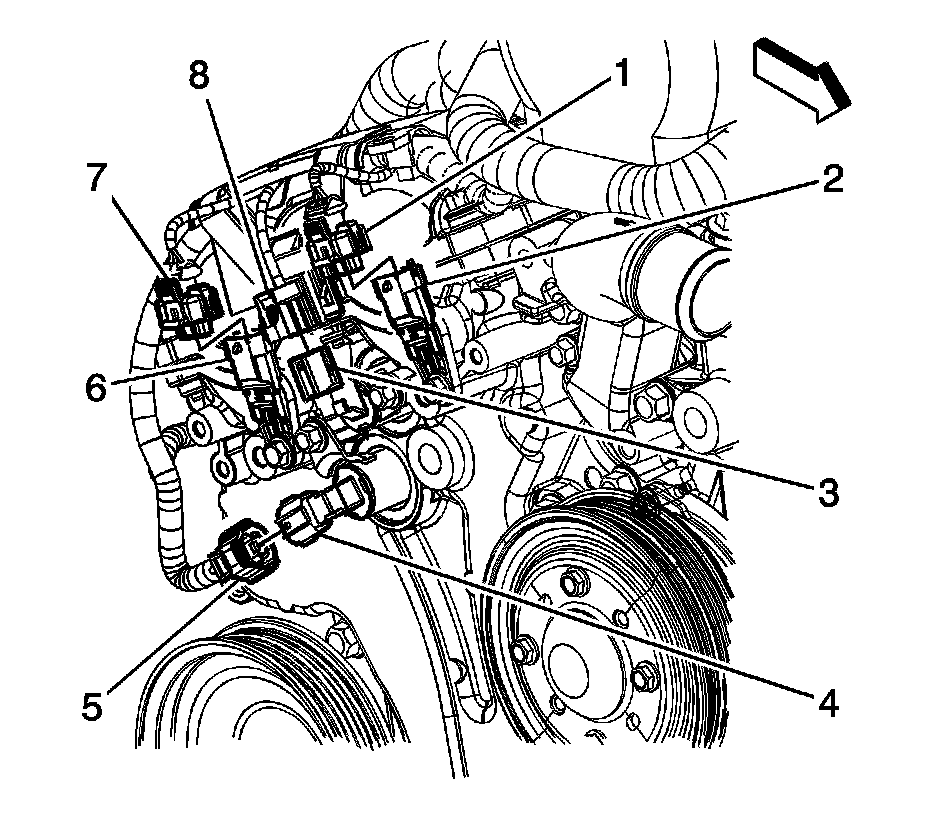

1. Disconnect the engine wiring harness electrical connector (1) from the bank 1 intake camshaft position (CMP) sensor (2).




2. Remove the CMP sensor bolt and sensor (2).

Installation Procedure





Caution: Refer to Fastener Caution Fastener Caution.

1. Install the CMP sensor (2) and bolt. Tighten the bolt to 10 Nm (89 lb in).




2. Connect the engine wiring harness electrical connector (1) to the bank 1 intake CMP sensor (2).
