53. Control Valve Body Assembly Installation




Control Valve Body Assembly Installation

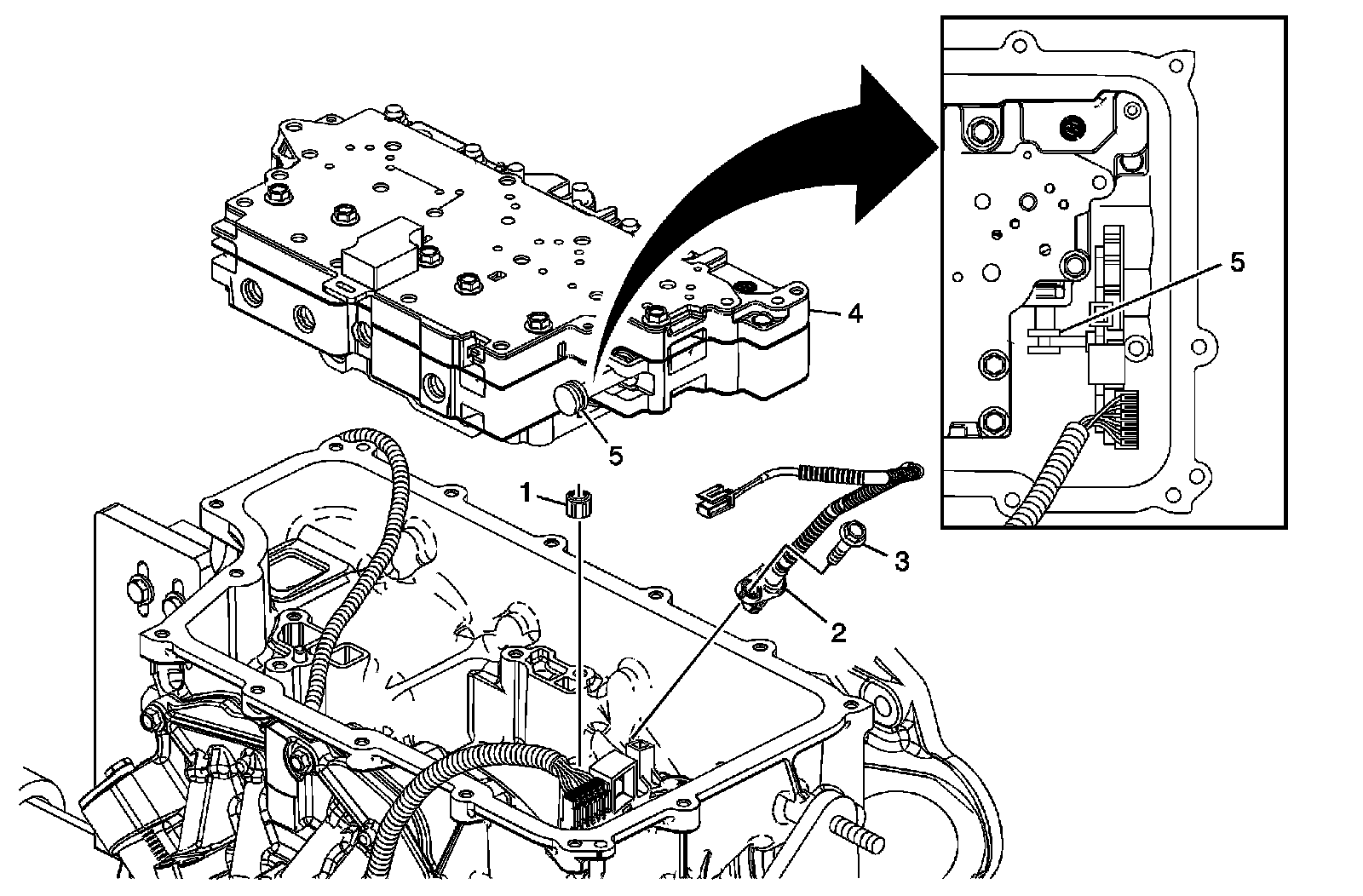

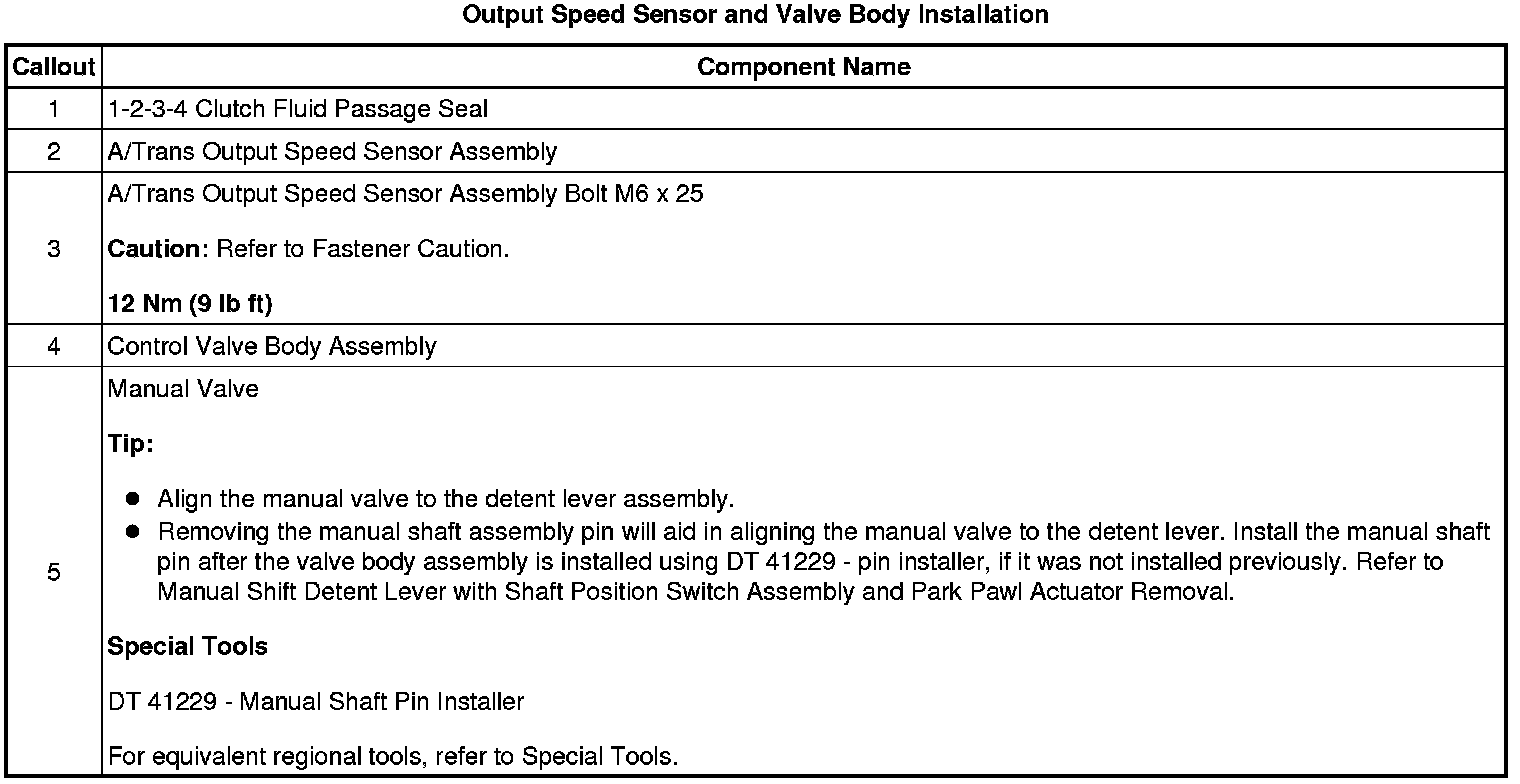

Output Speed Sensor and Valve Body Installation

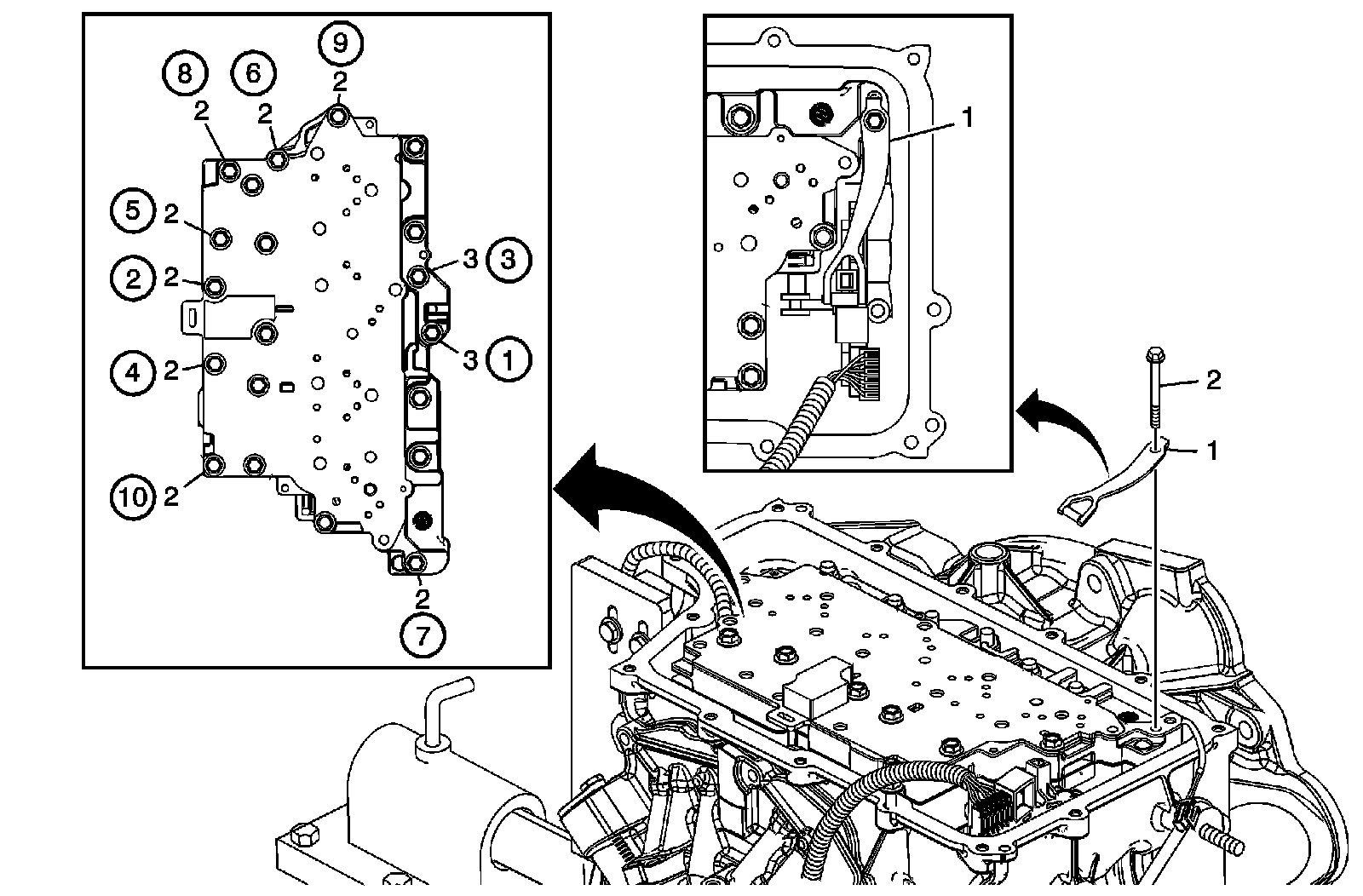

Control Valve Body Bolts Installation

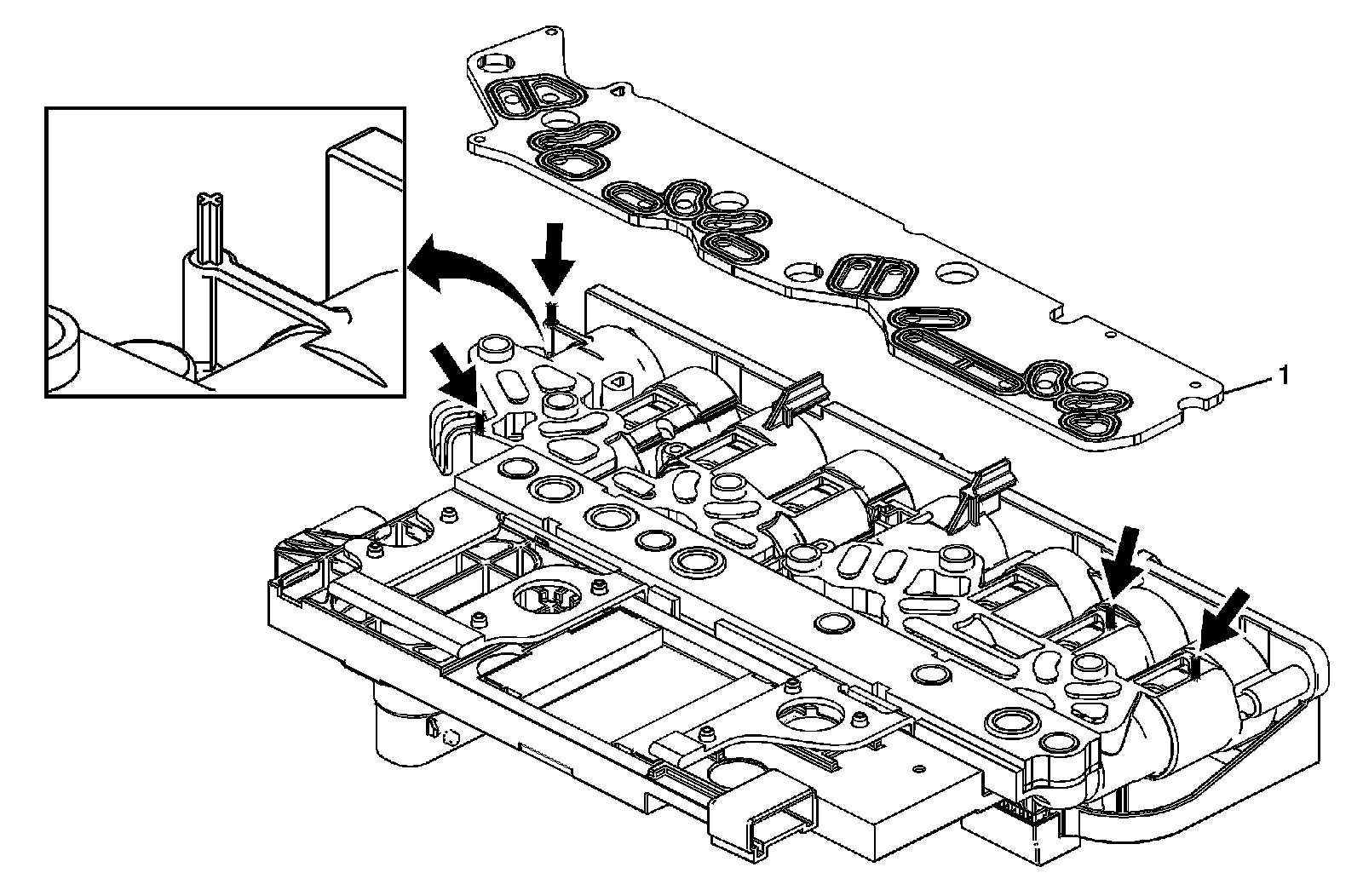

Filter Plate Installation

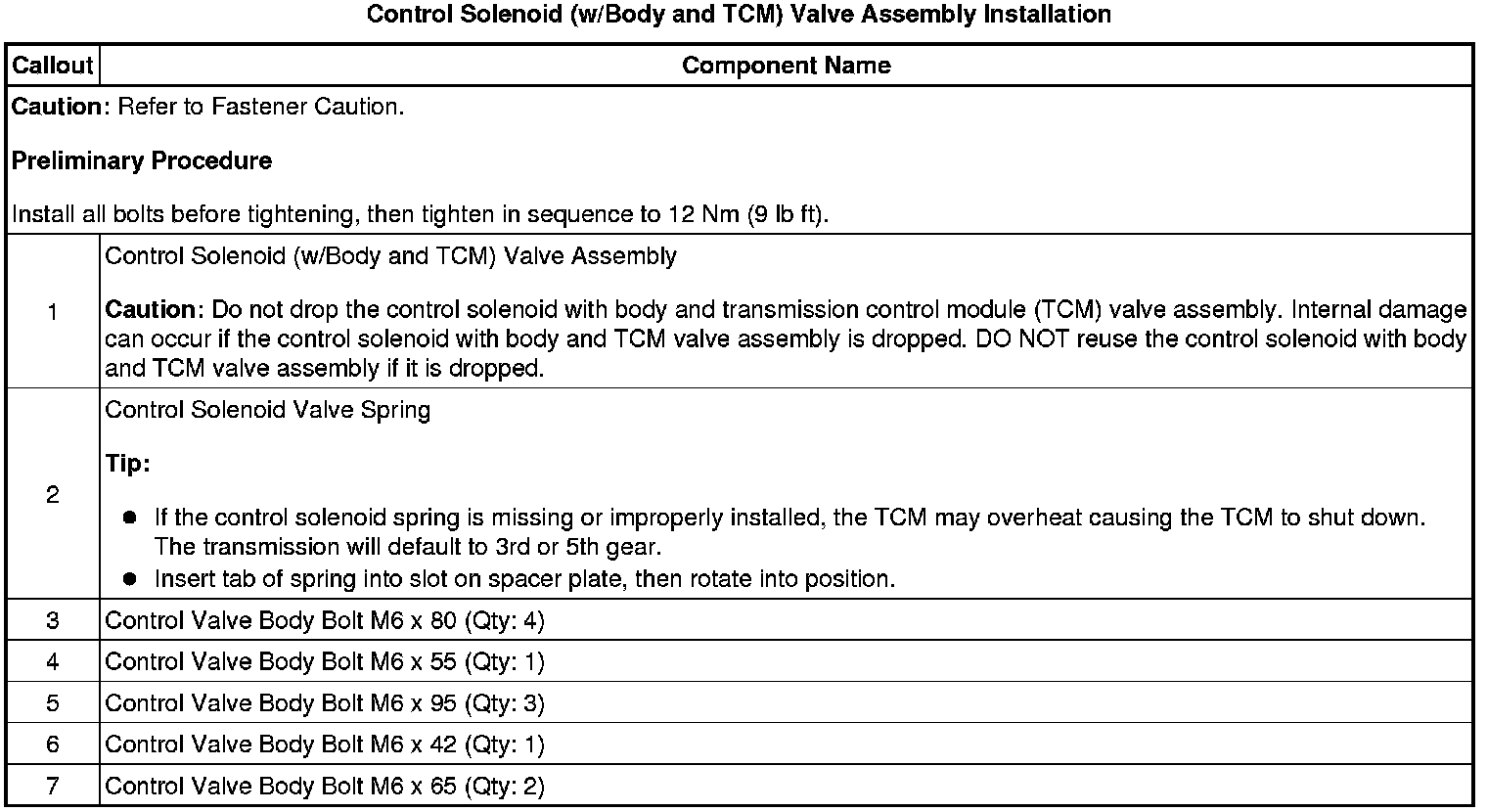

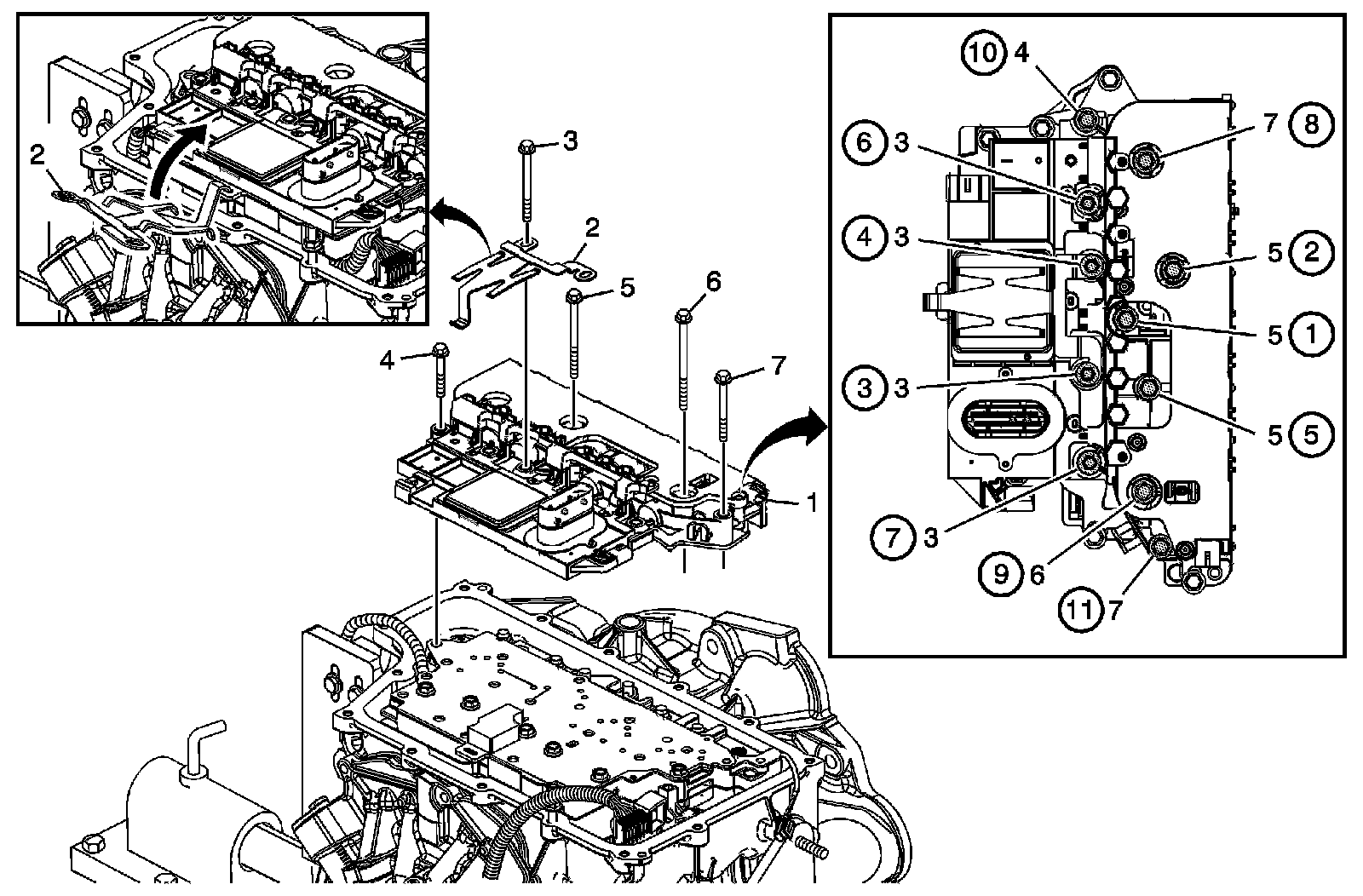

Control Solenoid (w/Body and TCM) Valve Assembly Installation

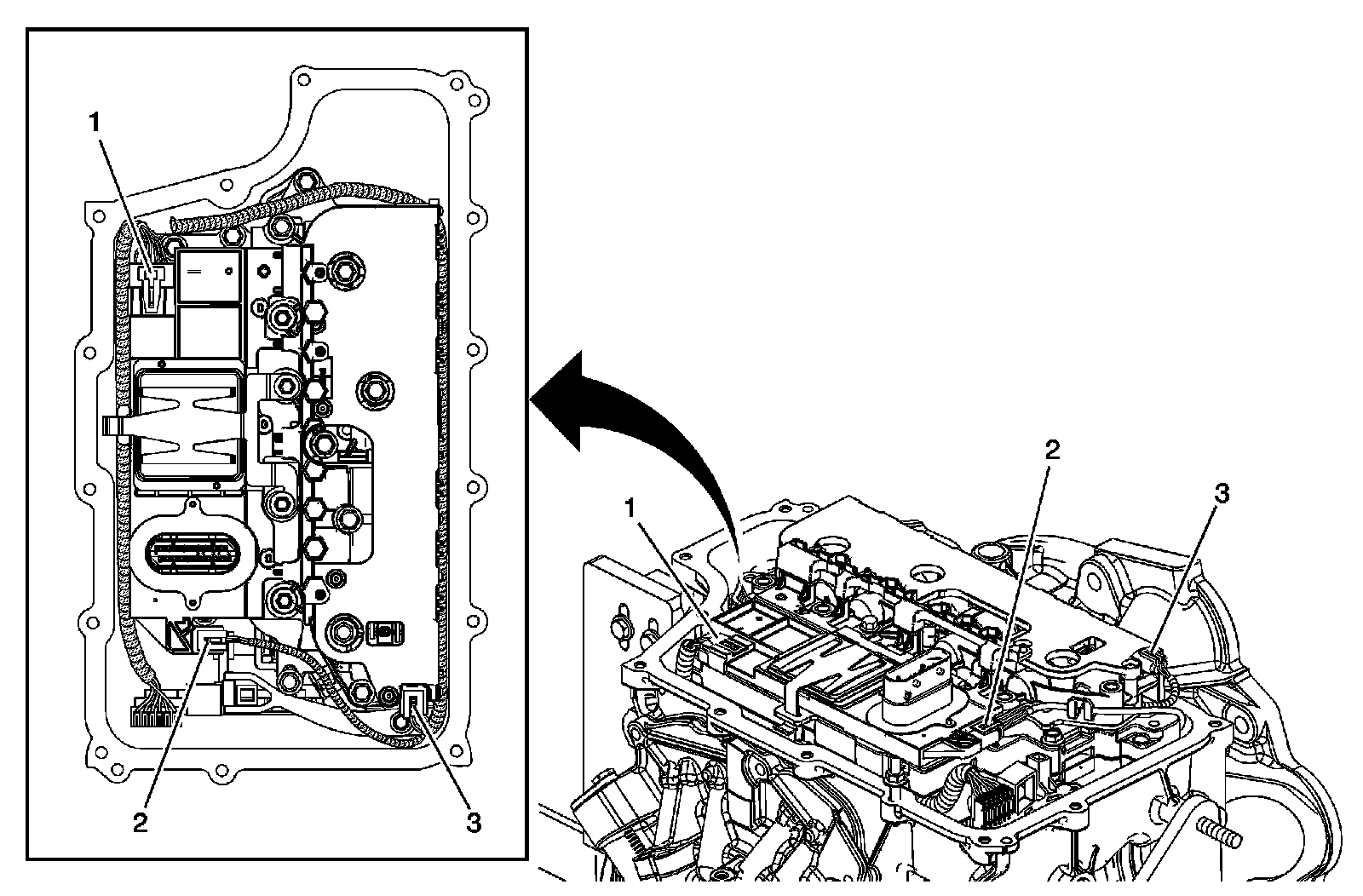

Wire Routing and Connector Locations

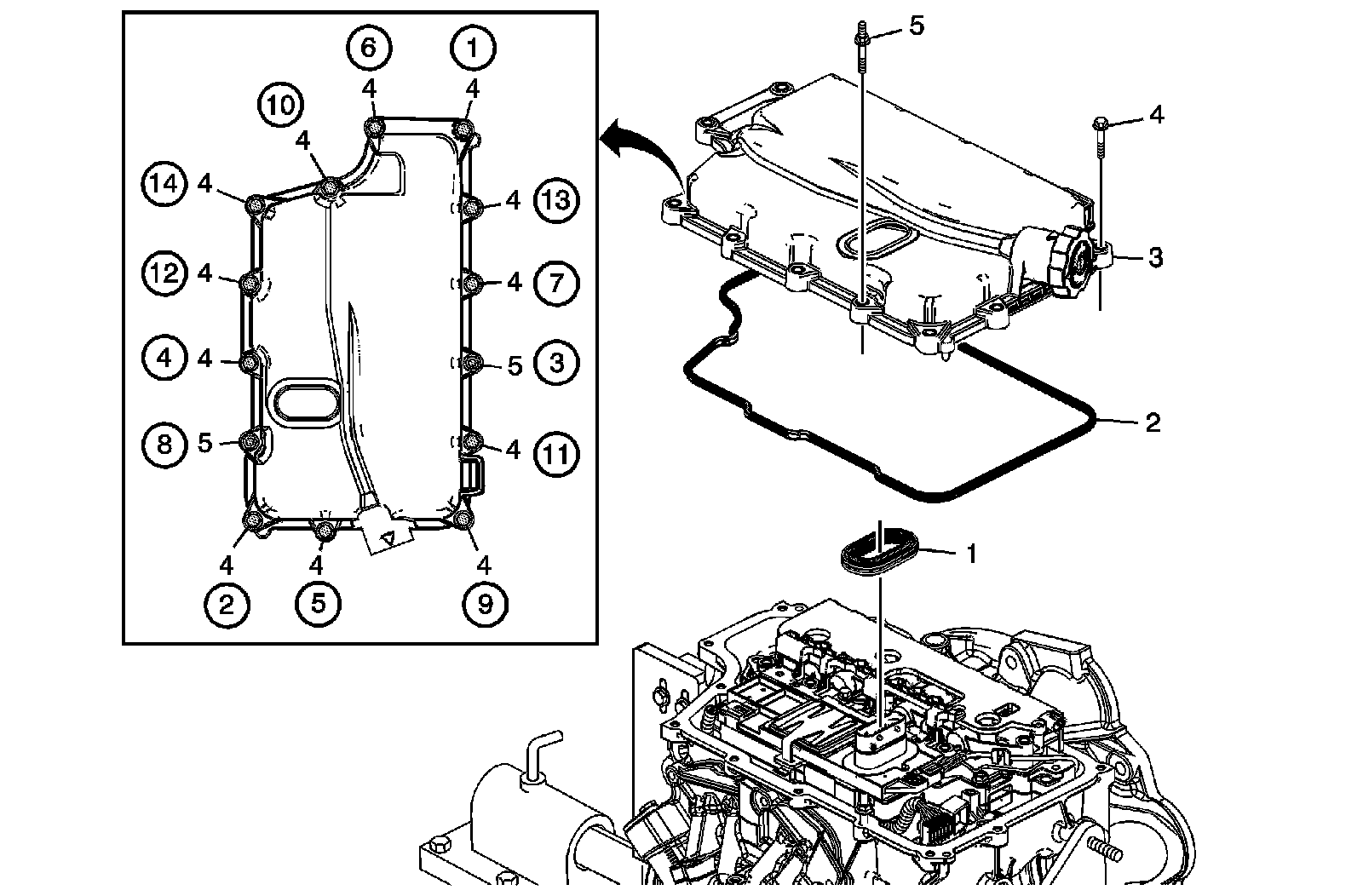

Control Valve Body Cover Installation
