Removal Procedure

    WARNING:

    Refer to Cracked Window Warning .

    NOTE:

    Before cutting out a quarter window, apply a double layer of masking tape around the perimeter of the painted surfaces and the interior trim.

  1. Open the liftgate.
  2. Remove the rear quarter panel trim. Refer to Quarter Upper Trim Panel Replacement (TB5) , Quarter Upper Trim Panel Replacement (TB4) .
    3. WARNING:

    Refer to Defroster Outlet Warning .

  3. Cover the following parts to protect from broken glass:
    • Upper dash pad
    • Defroster outlets and A/C outlets
    • Seats and carpeting
    4. Fig 1: Separating Urethane Adhesive From Window
    GM71179Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Refer to Glass and Sheet Metal Handling Warning .

    NOTE:

    Keep the cutting edge of the tool against the window.

  4. Remove the window from the urethane adhesive.
    • Leave a base of urethane approximately 2 mm (0.078 in) on the pinch-weld flange.
    • The only suitable lubrication is clear water.
    • Use J 24402-A  glass sealant remover (cold knife) , J 39032  stationary glass removal tool , or equivalent to remove the window.
    5. Fig 2: Separating Bottom Of Window
    GM379883Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Keep the cutting edge of the knife/tool against the window. Do this from inside the vehicle.

  5. If necessary, use a long utility knife or similar tool to remove the bottom corners of the window from the urethane adhesive.

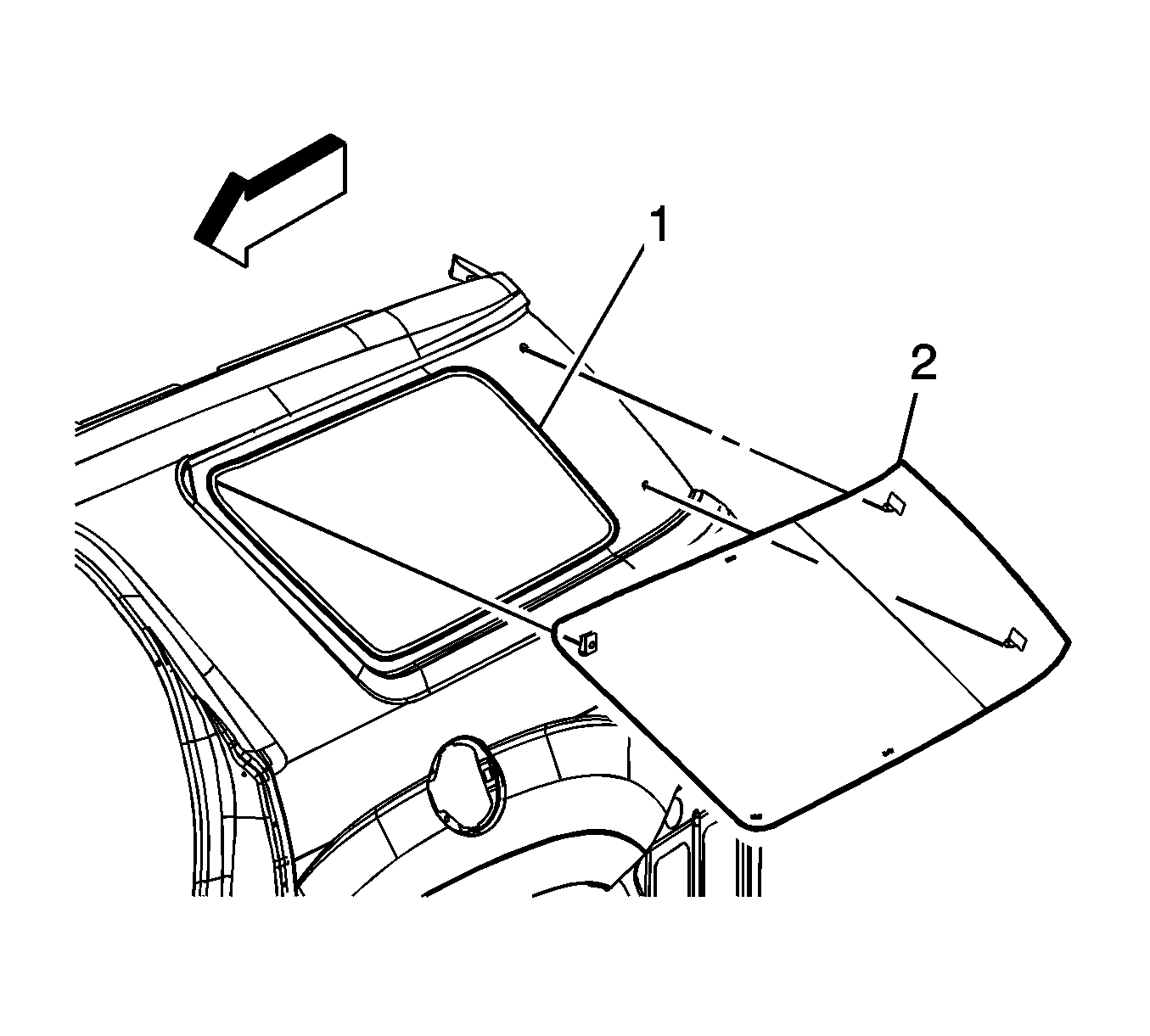

    6. Fig 3: View Of Quarter Window
    GM1840756Courtesy of GENERAL MOTORS COMPANY
  6. With the aid of an assistant, remove the window (2) from the vehicle.
