Installation Procedure

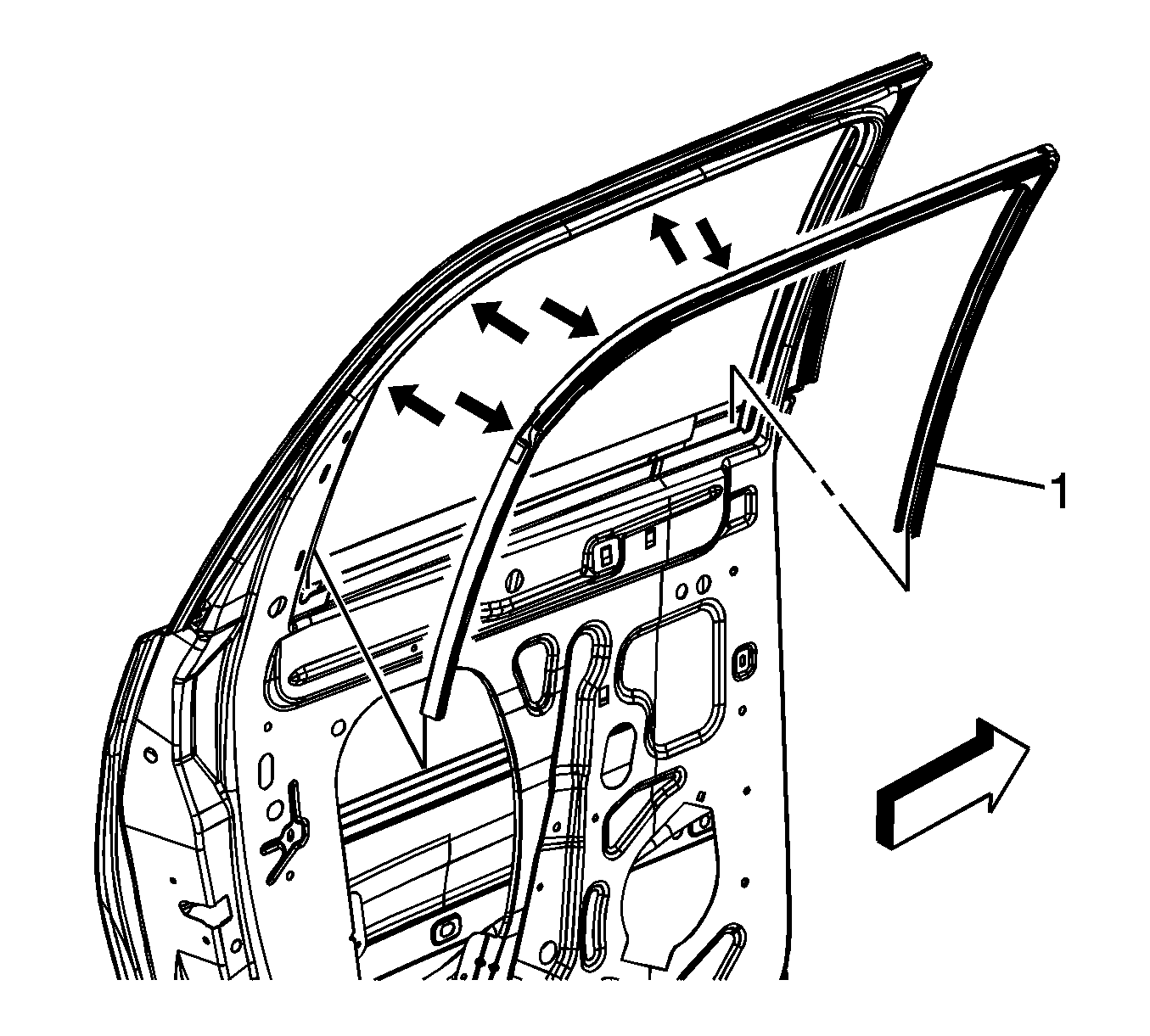

    Fig 1: View Of Rear Side Door Window Inner Weatherstrip
    GM1840775Courtesy of GENERAL MOTORS COMPANY
    IMPORTANT:

    Install the weatherstrip/run channel by fitting both corners to the upper door frame and then pushing inward on the sides.

  1. Install the weatherstrip/run channel (1) to the door.
  2. Press the weatherstrip/run channel (1) into the window frame opening.
