Memory Seat Control Module Replacement

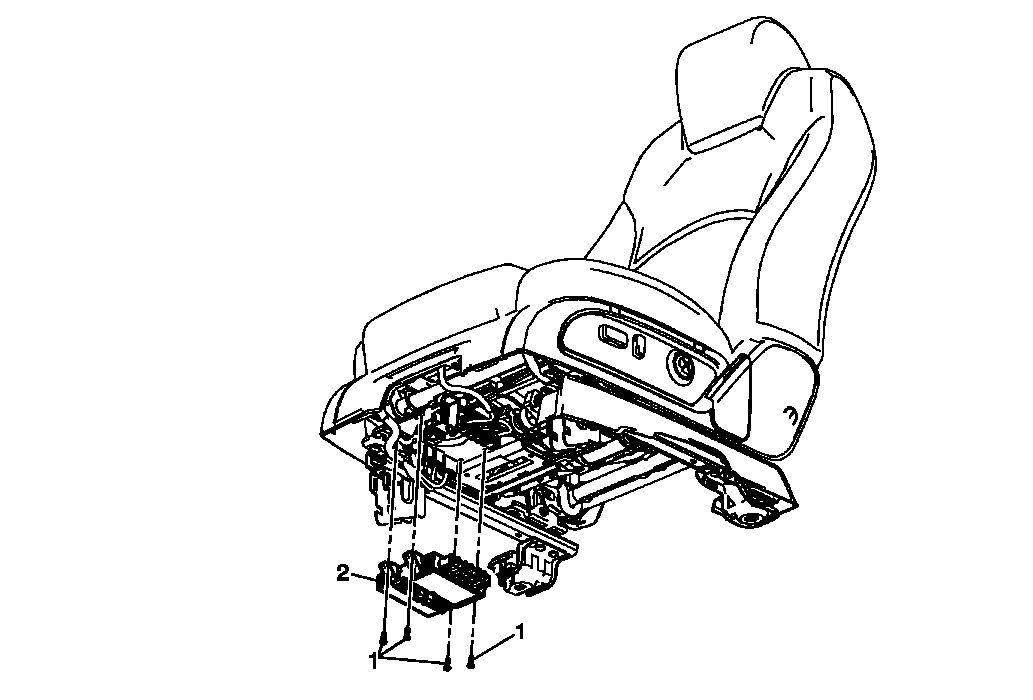

Fig 1: Memory Seat Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front seat. Refer to Bucket Seat Replacement .
1	Driver Seat Adjuster Memory Module Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Driver Seat Adjuster Memory Module Procedure Disconnect the electrical connector. Reprogram the module after replacement. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the front seat. Refer to Bucket Seat Replacement .

Driver Seat Adjuster Memory Module Screw (Qty: 4)

CAUTION:

Tighten
2 N.m (18 lb in)

Driver Seat Adjuster Memory Module

Procedure
