Front Seat Heater Control Module Replacement

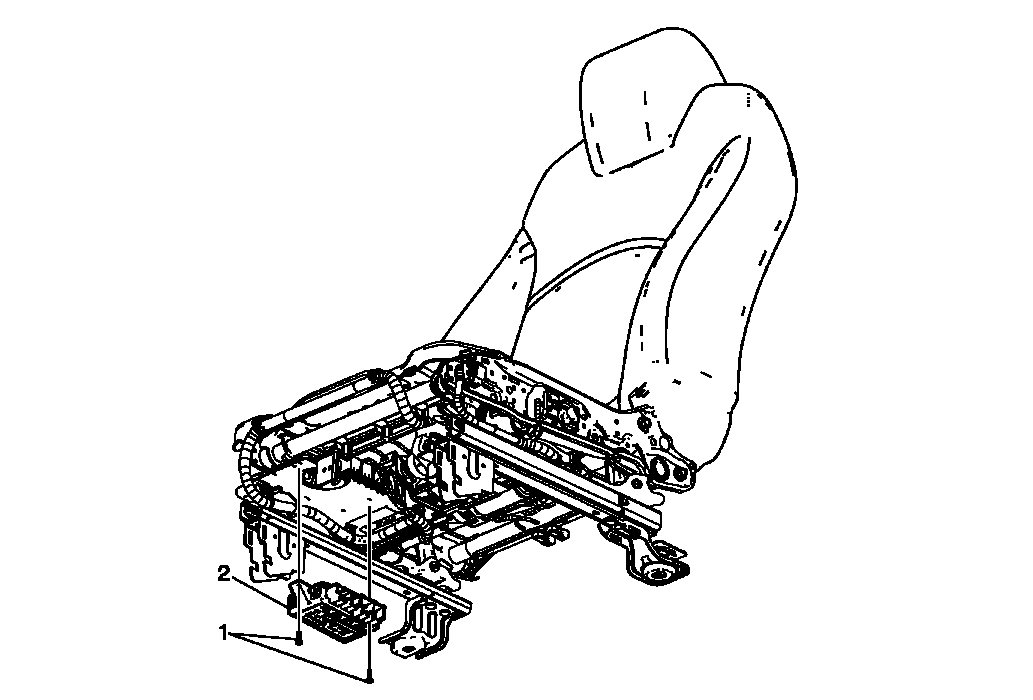

Fig 1: View Of Front Seat Heater Control Module
GM1828468Courtesy of GENERAL MOTORS COMPANY
Front Seat Heater Control Module Replacement

Callout Component Name
Preliminary Procedure
Remove the front seat. Refer to Bucket Seat Replacement .
1 Front Heated Seat Module Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
2 Front Heated Seat Module

Procedure

  • Disconnect the electrical connector.
  • If a replacement module is installed, program the module. Refer to Control Module References .
