SIR Identification Views
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

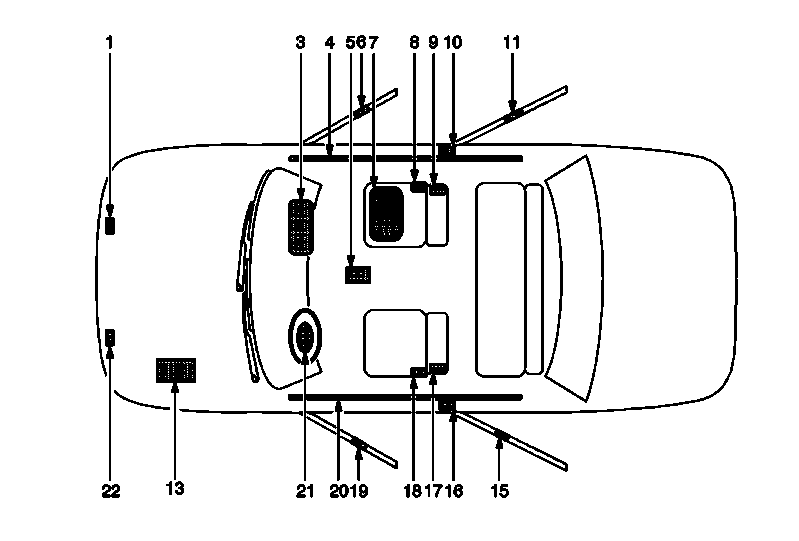

The SIR Identification Views shown below illustrate the approximate location of all SIR components available for the vehicle. This will assist in determining the appropriate SIR Disabling and Enabling for a given service procedure, refer to SIR Disabling and Enabling .
| Callout | Component Name |
|---|---|
| 1 | Right Front Impact Sensor - Located on the front of the vehicle in the engine compartment |
| 2 | Front Hood Assist Rod - A gas shock located under the front hood on the passenger side |
| 3 | Passenger Instrument Panel Air Bag - Located at the top right under the instrument panel |
| 4 | Right Roof Rail Air Bag - Located on the quarter panel upper behind the garnish, extending from the passenger front windshield pillar to the passenger rear windshield pillar |
| 5 | Inflatable Restraint Sensing and Diagnostic Module (SDM) - Located underneath the vehicle carpet under the center console |
| 6 | Right Front Side Impact Sensor - Located inside front passenger door |
| 7 | Passenger Presence System - Located under the front passenger seat trim cover |
| 8 | Passenger Seat Belt Anchor Pretensioner - Located on the outboard side of the passenger seat |
| 9 | Passenger Seat Side Air Bag - Located on the seat back of passenger seat |
| 10 | Passenger Seat Belt Retractor Pretensioner - Located under the trim near the bottom of the center pillar |
| 11 | Right Rear Side Impact Sensor - Located inside rear passenger door |
| 12 | Rear Compartment Lid Assist Rod-A gas shock is located under the rear trunk lid on the passenger side |
| 13 | Vehicle Battery - Located inside rear compartment on the passenger side behind the trim |
| 14 | Rear Compartment Lid Assist Rod-A gas shock is located under the rear trunk lid on the driver side |
| 15 | Left Rear Side Impact Sensor - Located inside rear passenger door |
| 16 | Driver Seat Belt Retractor Pretensioner - Located under the trim near the bottom of the center pillar |
| 17 | Driver Seat Side Air Bag - Located on the seat back of driver seat |
| 18 | Driver Seat Belt Anchor Pretensioner - Located on the outboard side of the driver seat |
| 19 | Left Front Side Impact Sensor - Located inside driver door |
| 20 | Left Roof Rail Air Bag - Located on the quarter panel upper, extending from the driver front windshield pillar to the driver rear windshield pillar |
| 21 | Driver Steering Wheel Air Bag - Located on the steering wheel |
| 22 | Left Front Impact Sensor - Located on the front of the vehicle in the engine compartment |
