Brake Fluid Level Indicator Switch Replacement

WARNING: This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

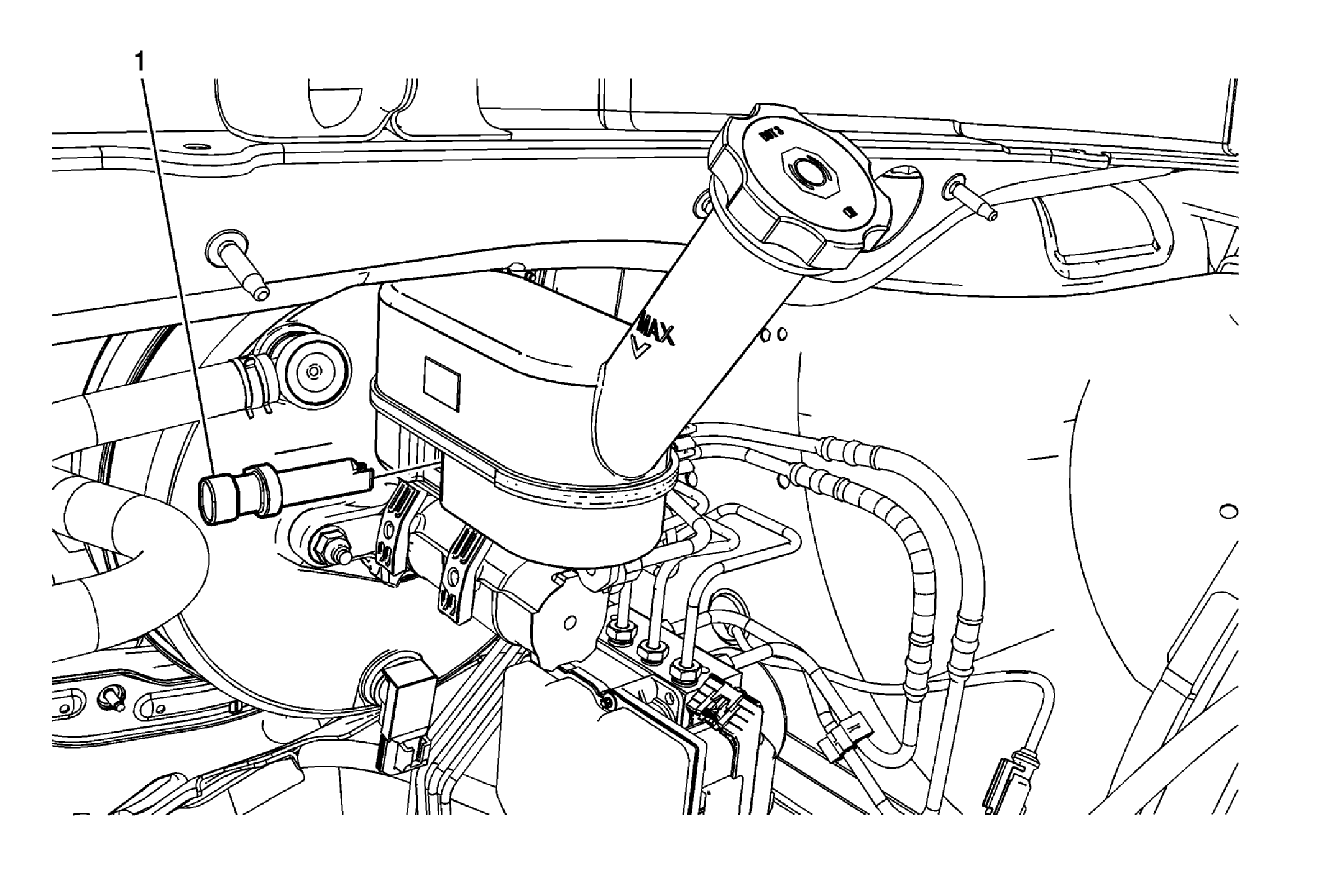

Fig 1: Brake Fluid Level Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the air cleaner housing cover and duct. Refer to Air Cleaner Element Replacement .
1	Master Cylinder Fluid Level Sensor Procedure Disconnect the electrical connector. Compress the locking tabs on the sensor to release the sensor from the brake master cylinder reservoir.

Callout

Component Name

Preliminary Procedures
Remove the air cleaner housing cover and duct. Refer to Air Cleaner Element Replacement .

Master Cylinder Fluid Level Sensor

Procedure

Disconnect the electrical connector.
Compress the locking tabs on the sensor to release the sensor from the brake master cylinder reservoir.
