Windshield Wiper Blade Replacement (Traverse)

WARNING: This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

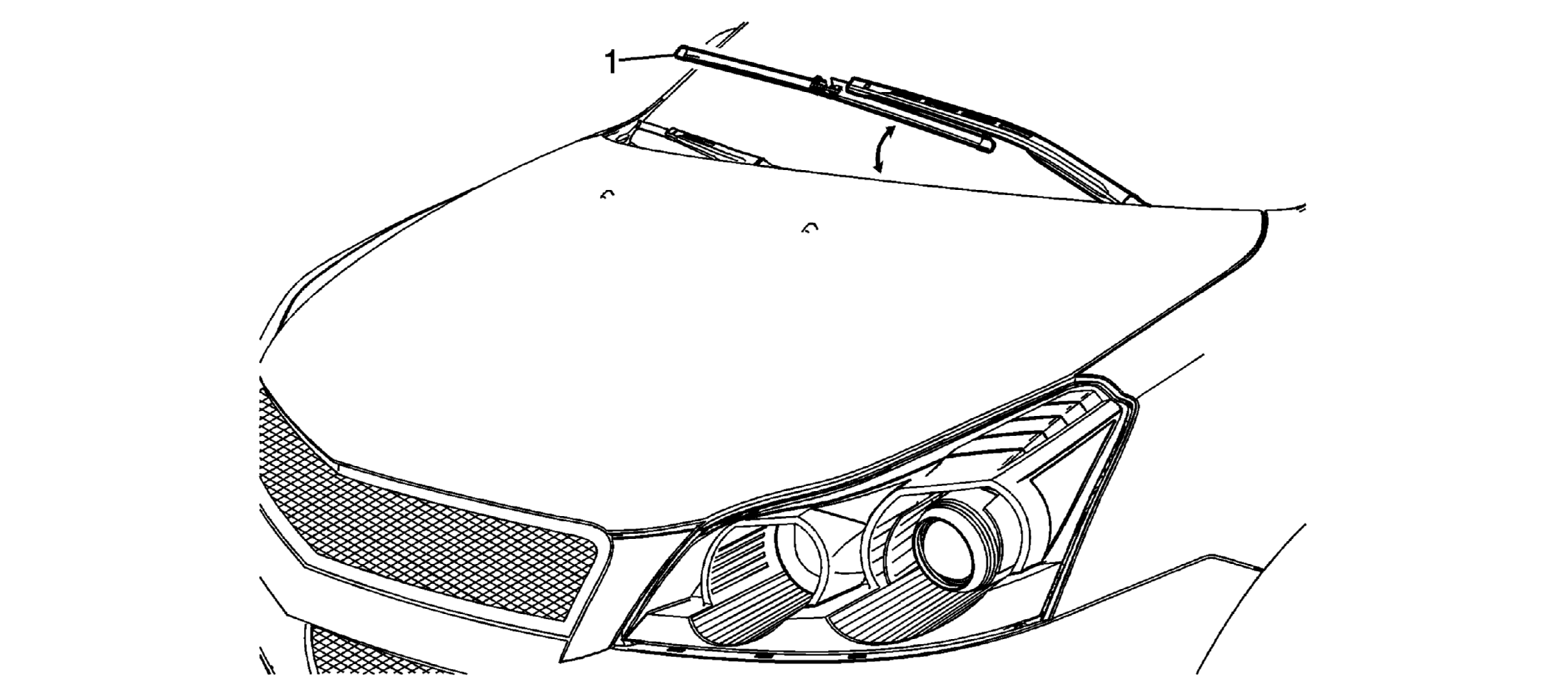

Fig 1: Windshield Wiper Blade (Traverse)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise the wiper arm to the full up position in order to release the wiper blade from the wiper arm.
1	Windshield Wiper Blade Assembly (Qty: 2) Procedure Press the square tab inward at the tip of the wiper arm to release the blade. Tilt and slide the blade assembly from the wiper arm. Discard the blade if the rubber element appears worn, or does not wipe the windshield clean. Refer to Wiper Blade Element Check .

Callout

Component Name

Preliminary Procedure
Raise the wiper arm to the full up position in order to release the wiper blade from the wiper arm.

Windshield Wiper Blade Assembly (Qty: 2)

Procedure

Press the square tab inward at the tip of the wiper arm to release the blade.
Tilt and slide the blade assembly from the wiper arm.
Discard the blade if the rubber element appears worn, or does not wipe the windshield clean. Refer to Wiper Blade Element Check .
