Lower Control Arm Replacement

WARNING: This page is about a different car, the 2013 GMC Acadia, 2013 Chevrolet Traverse, and 2013 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

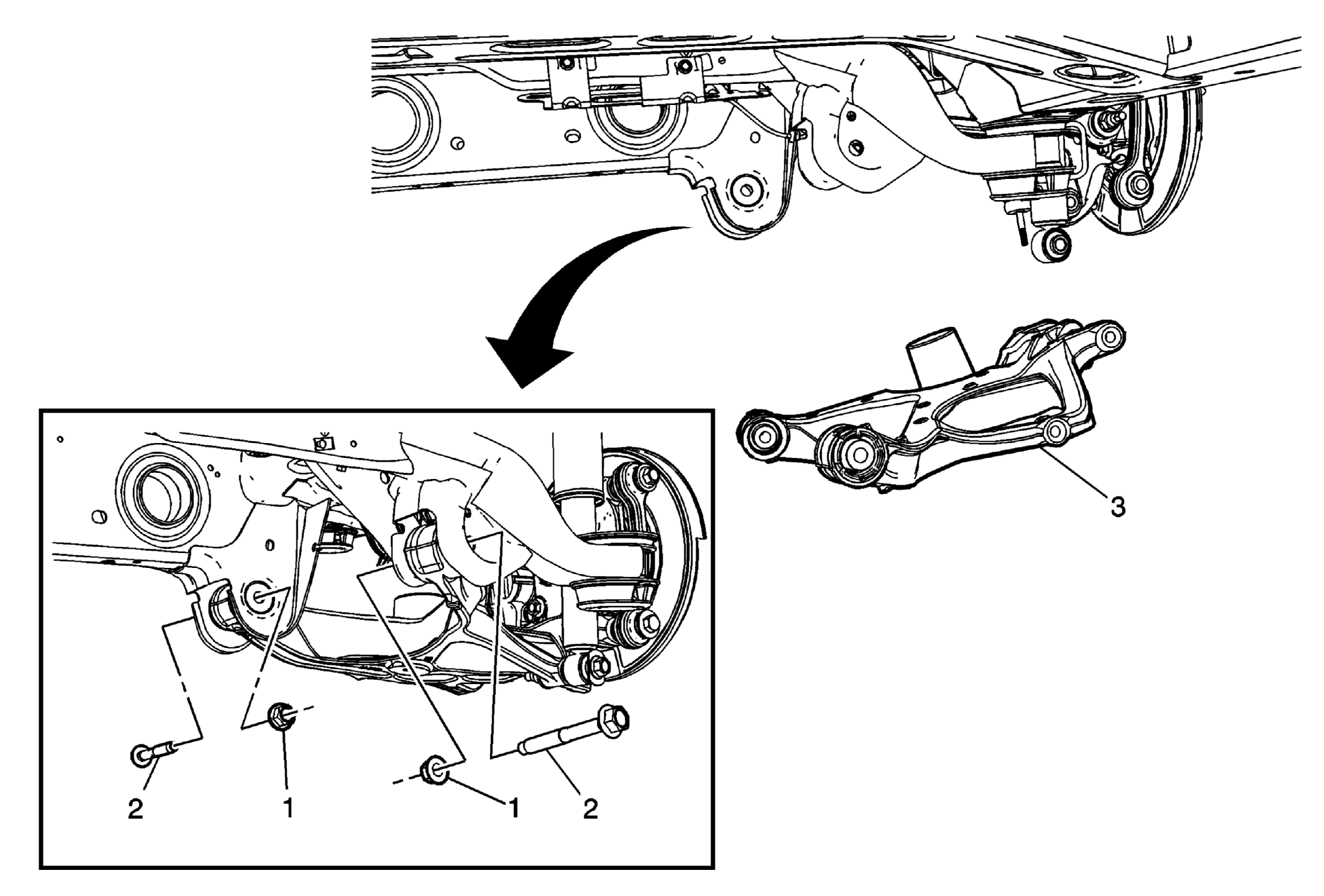

Fig 1: Lower Control Arm

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear coil spring and related parts. Refer to Rear Spring, Insulator and Jounce Bumper Replacement .
1	Rear Lower Control Arm Nut (Qty: 2)
2	Rear Lower Control Arm Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Tighten Tighten the front control nut to 110 N.m (81 lb ft) plus 45 degrees Tighten the rear control nut to 120 N.m (89 lb ft) plus 60 degrees
3	Rear Lower Control Arm Procedure Align the rear suspension. Refer to Wheel Alignment Specifications .
