Navigation Signal Splitter Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

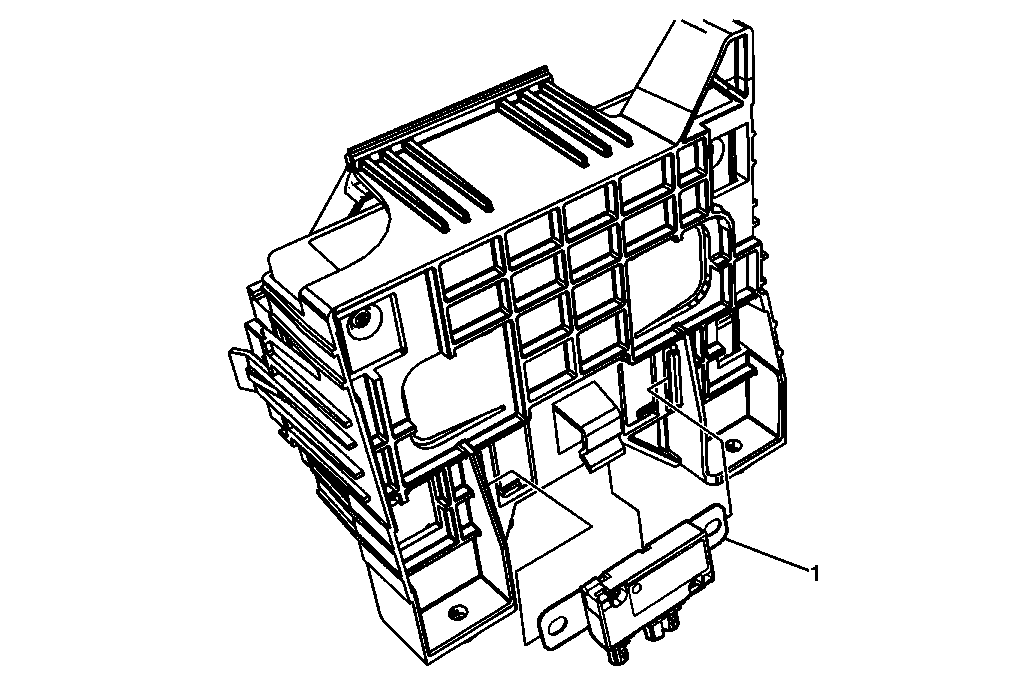

Fig 1: Identifying Navigation Signal Splitter

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the communication interface module bracket. Refer to Communication Interface Module Bracket Replacement .
1	Navigation Signal Splitter Procedure Disconnect the electrical connections. For programming and set up procedures, refer to Control Module References .

Callout

Component Name

Preliminary Procedure:
Remove the communication interface module bracket. Refer to Communication Interface Module Bracket Replacement .

Navigation Signal Splitter

Procedure

Disconnect the electrical connections.
For programming and set up procedures, refer to Control Module References .
