Video System Schematics

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

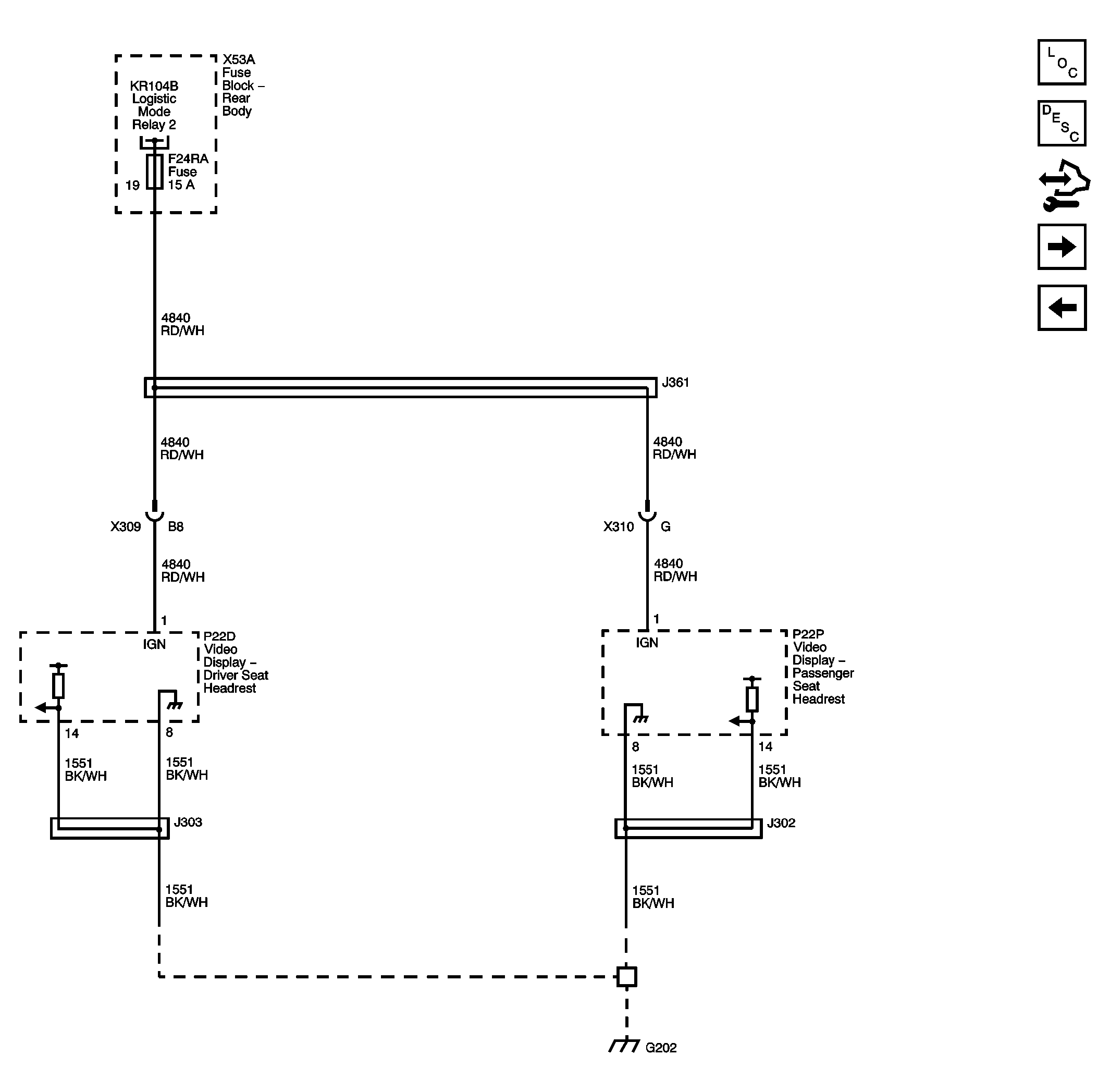

Fig 1: Headrest Displays Power & Ground Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

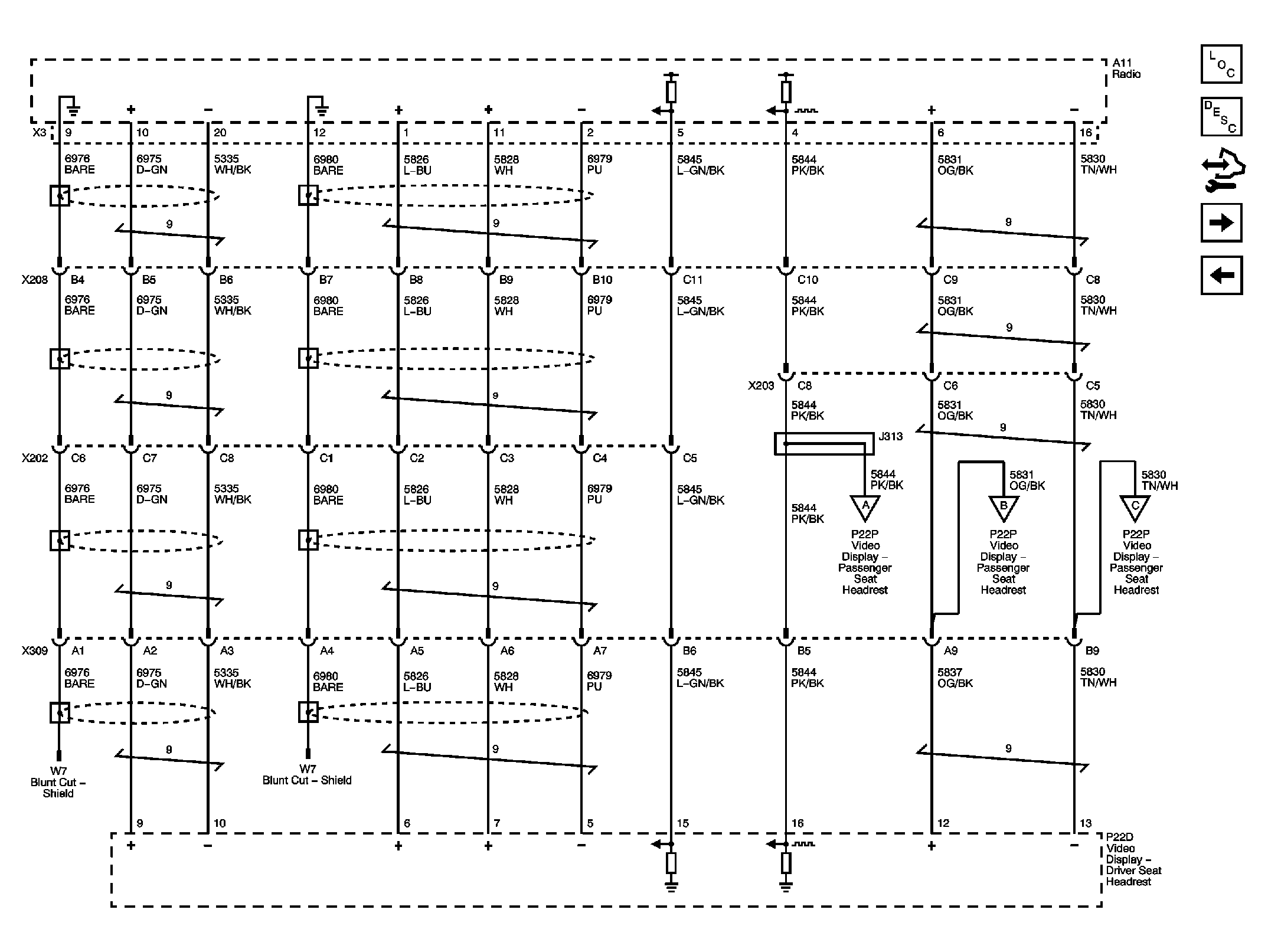

Fig 2: Driver Headrest Display Signals without ULD, With UYZ Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

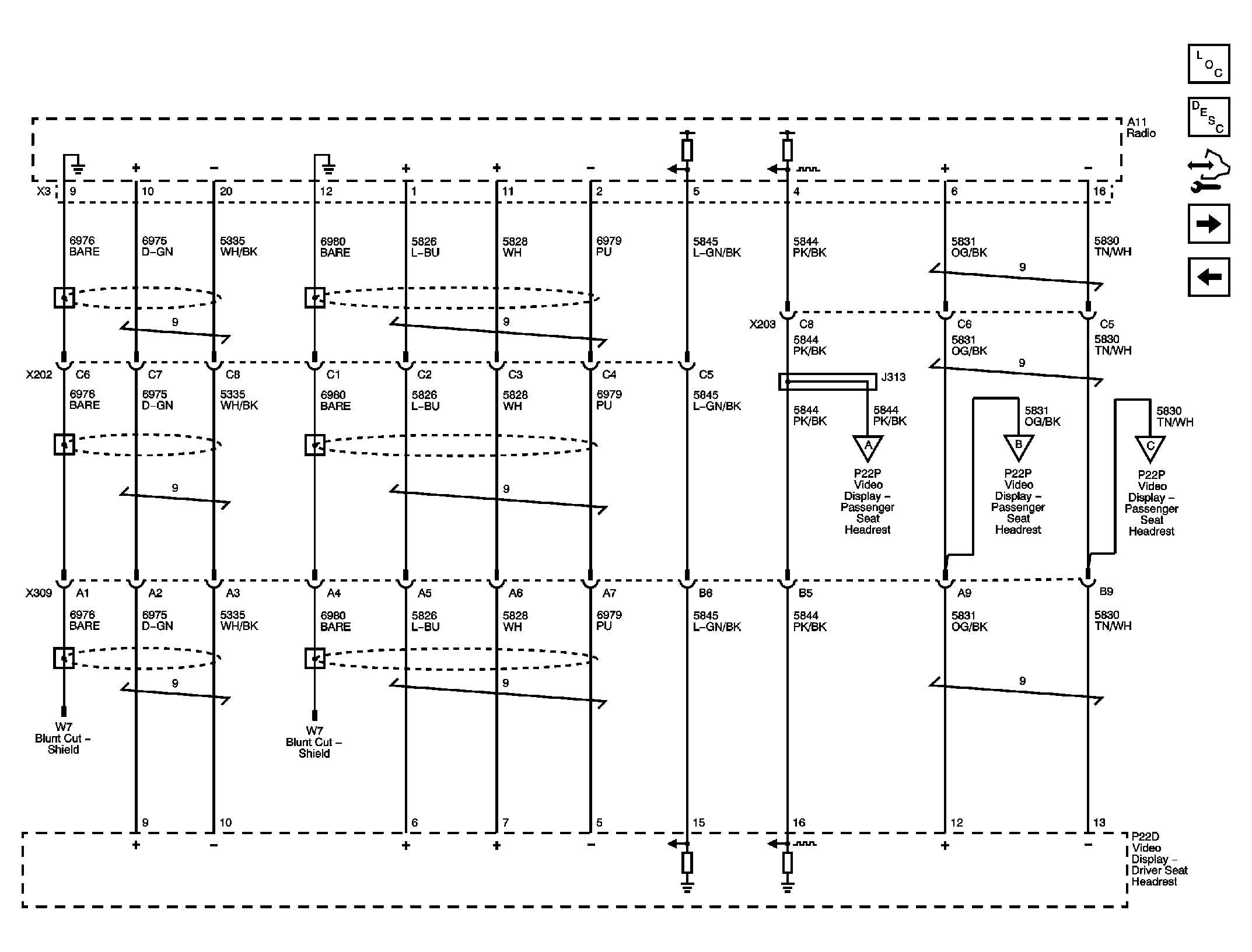

Fig 3: Driver Headrest Display Signals Without ULD or UYZ Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

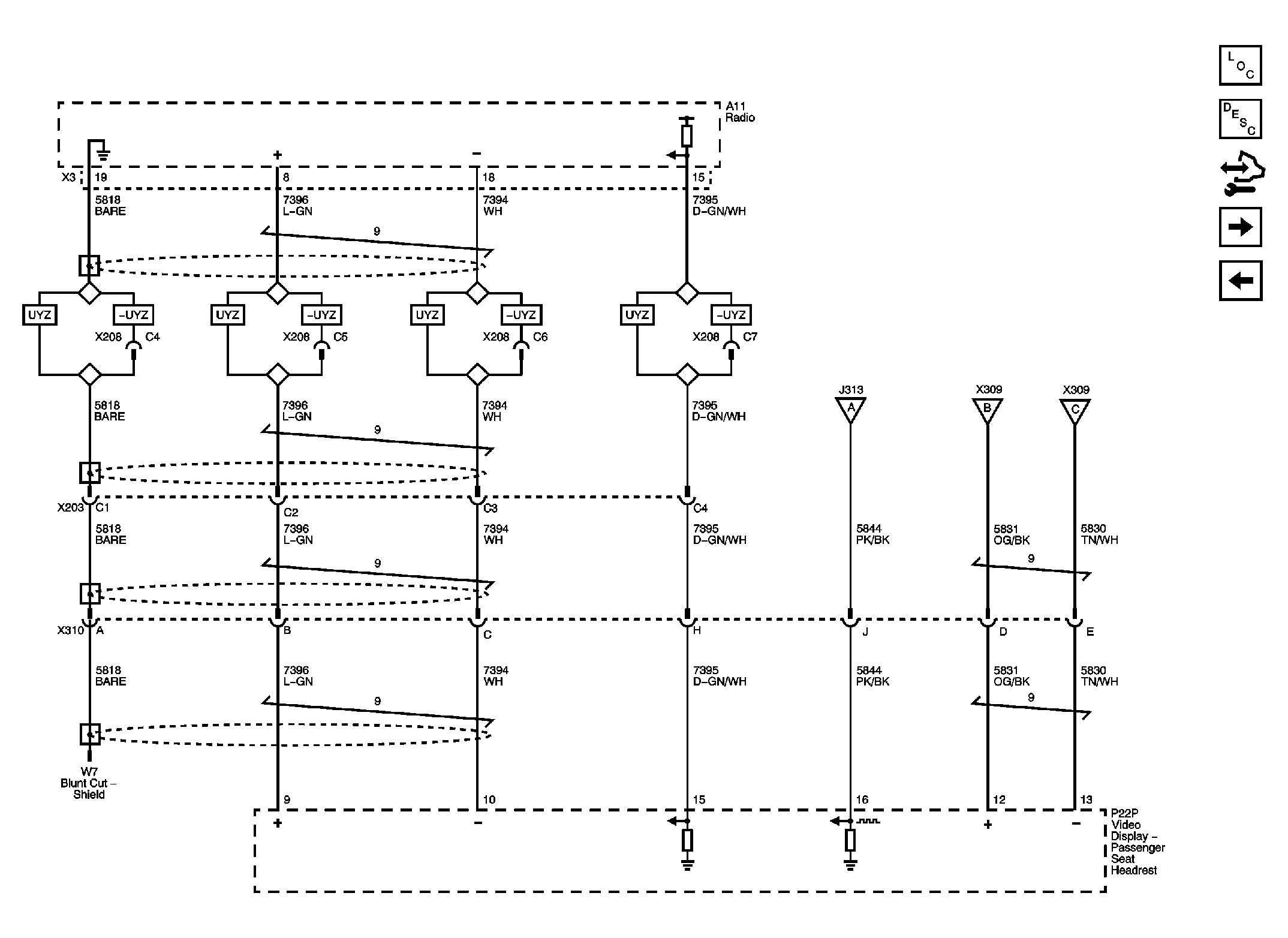

Fig 4: Passenger Headrest Display Signals Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

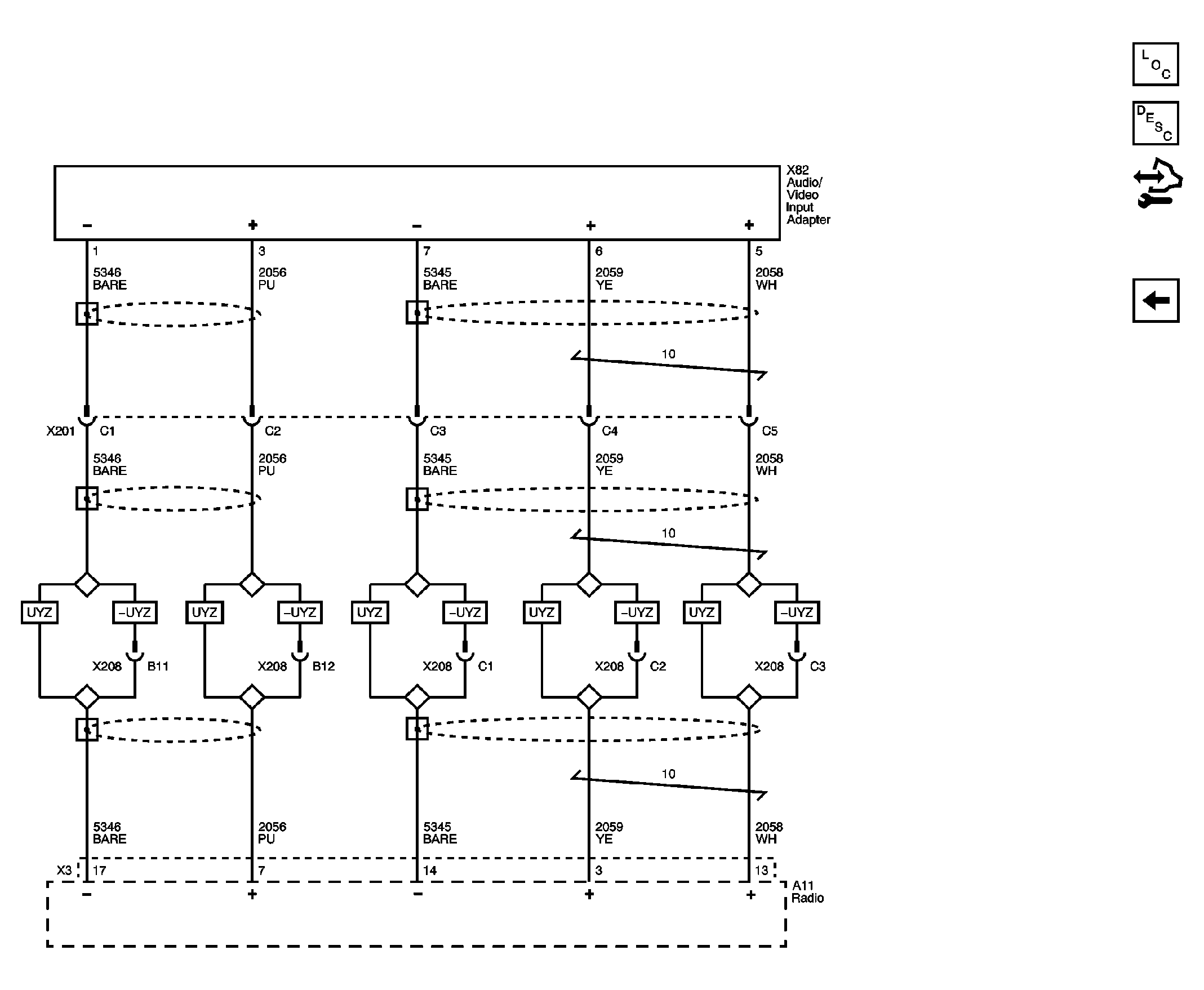

Fig 5: Video Inputs Circuit Schematic (UWG)

Courtesy of GENERAL MOTORS CORP.
