Auxiliary Heater and Air Conditioning Control Module Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

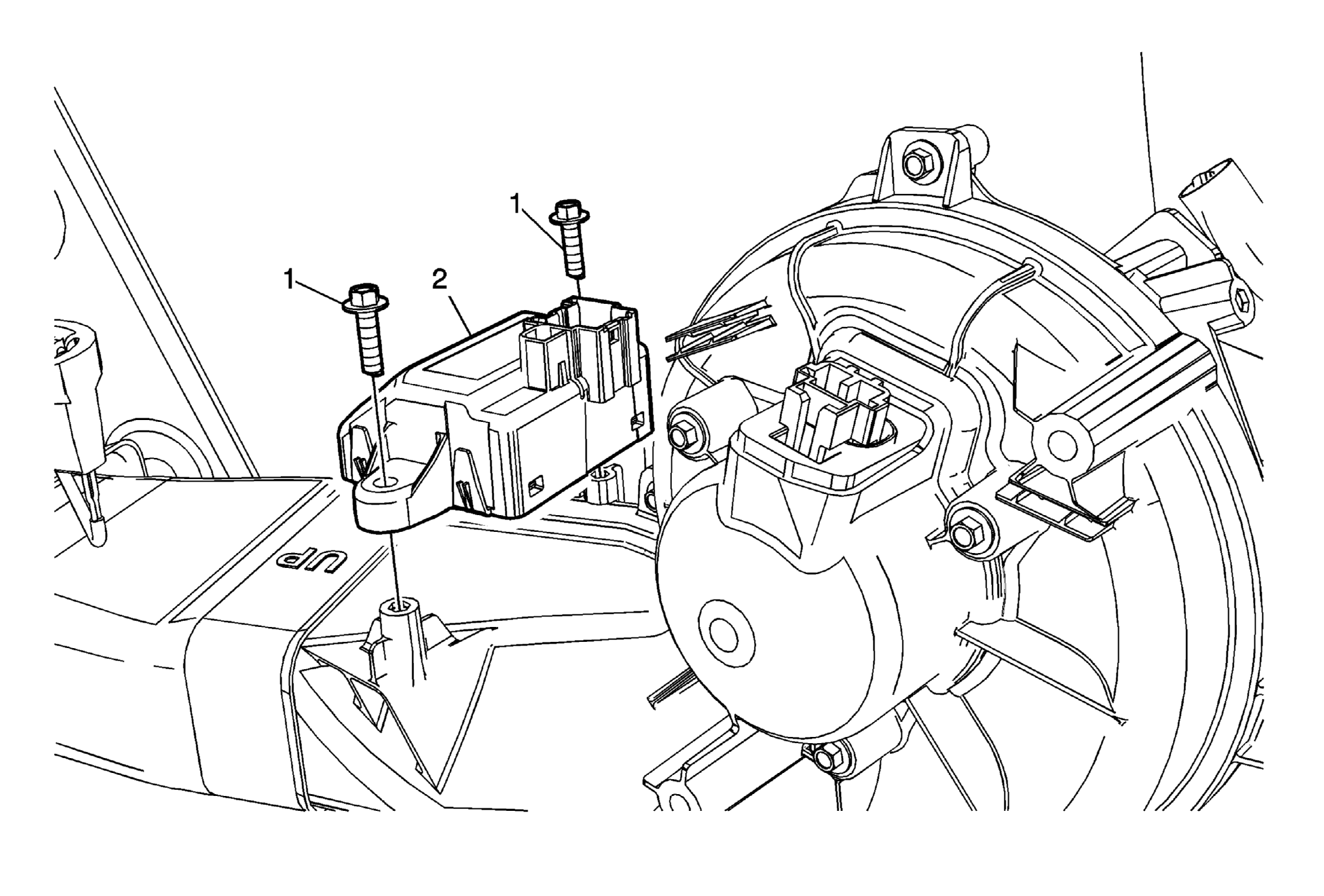

Fig 1: View Of Auxiliary Heater & Air Conditioning Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the floor console. Refer to Front Floor Console Replacement . Disconnect the auxiliary heater and blower and air conditioning control module electrical connectors.
1	Auxiliary Heater and Blower and Air Conditioning Control Module Screws (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Auxiliary Heater and Blower and Air Conditioning Control Module

Callout

Component Name

Preliminary Procedure

Remove the floor console. Refer to Front Floor Console Replacement .
Disconnect the auxiliary heater and blower and air conditioning control module electrical connectors.

Auxiliary Heater and Blower and Air Conditioning Control Module Screws (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
1.5 N.m (13 lb in)

Auxiliary Heater and Blower and Air Conditioning Control Module
