Installation Procedure
WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

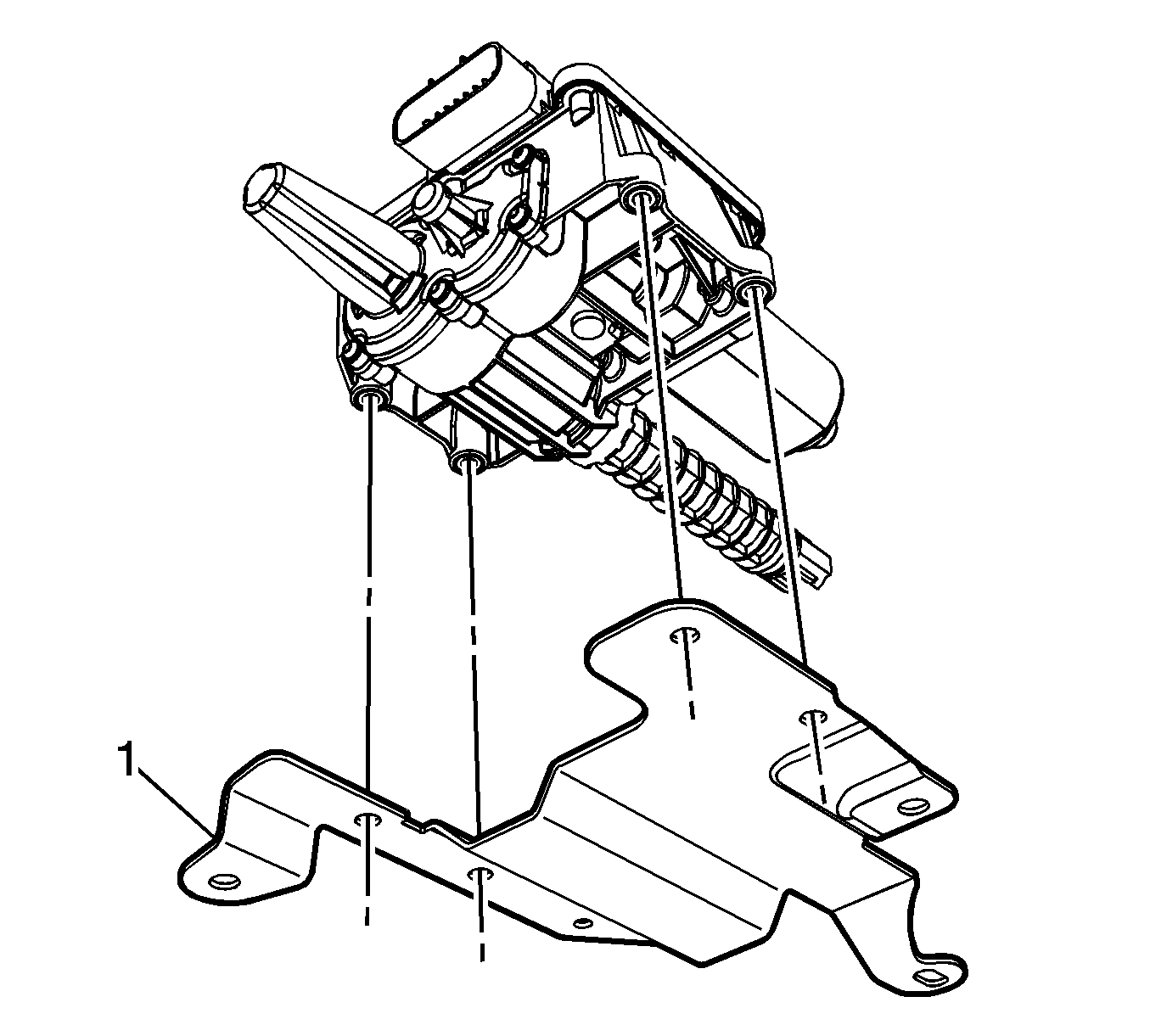

- If removed, install the electronic parking brake control module bracket (1).

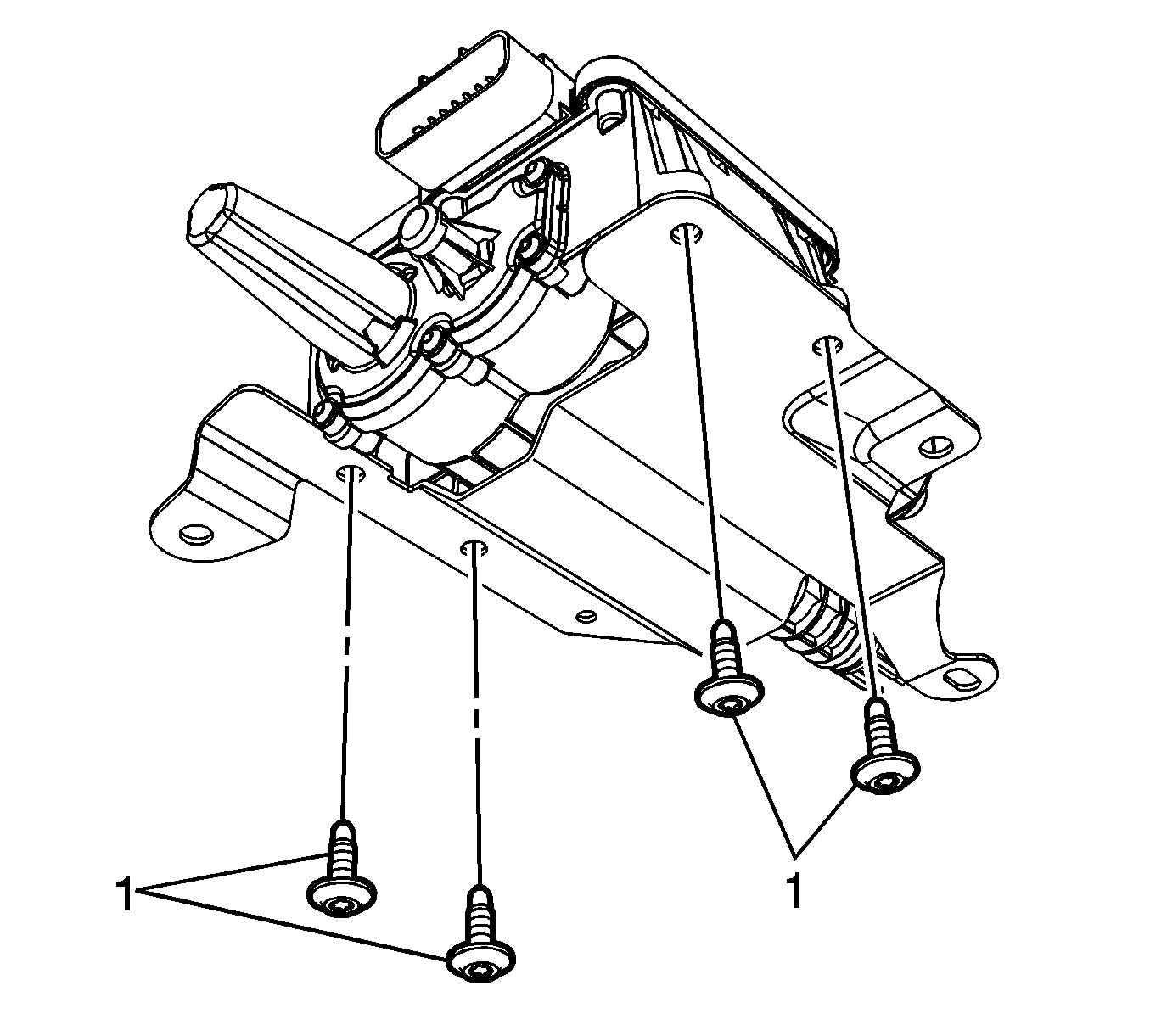

- Install the electronic parking brake control module bracket bolts (1) and tighten to 9 N.m (80 lb in).

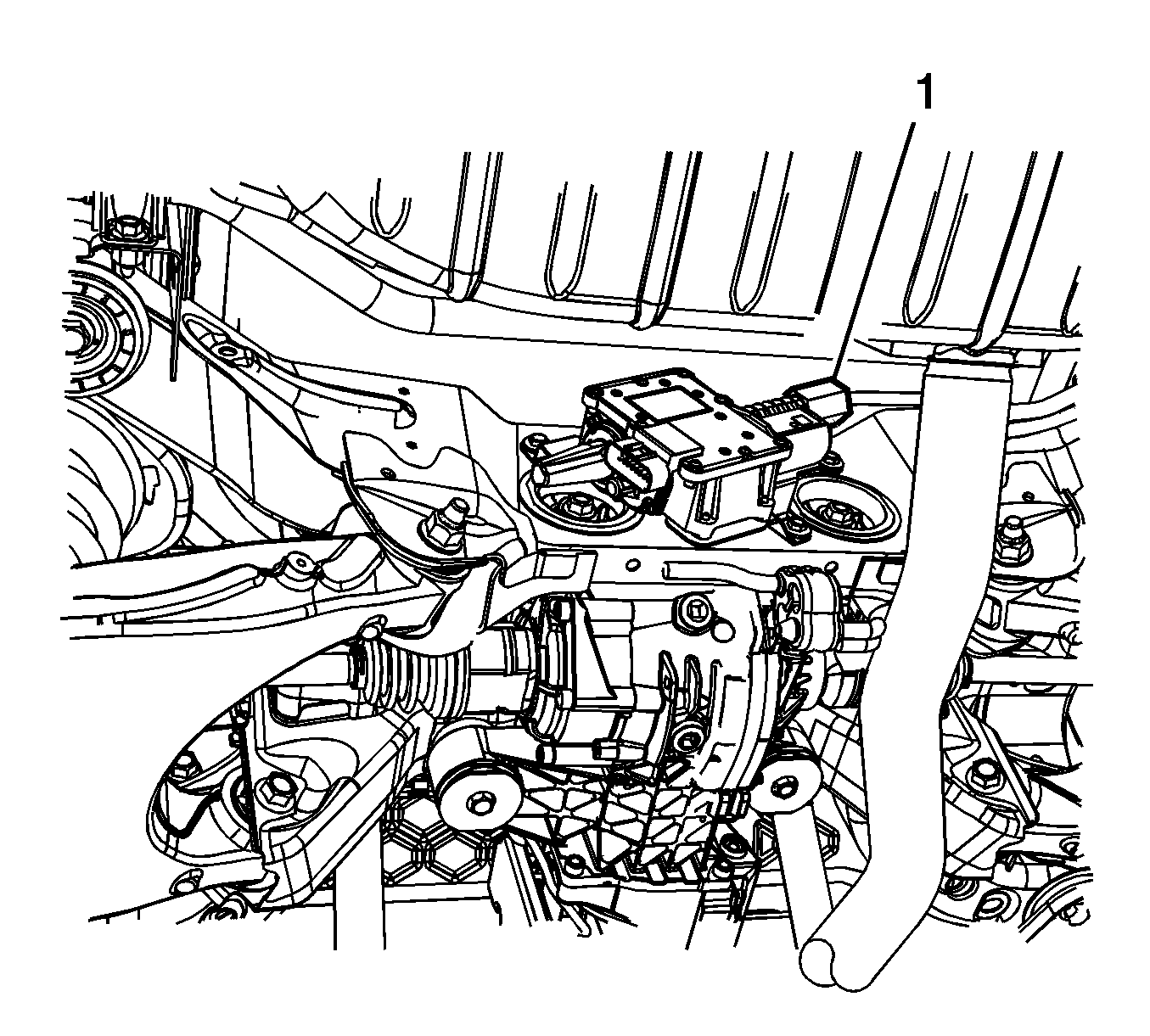

- Install the electronic parking brake control module assembly.

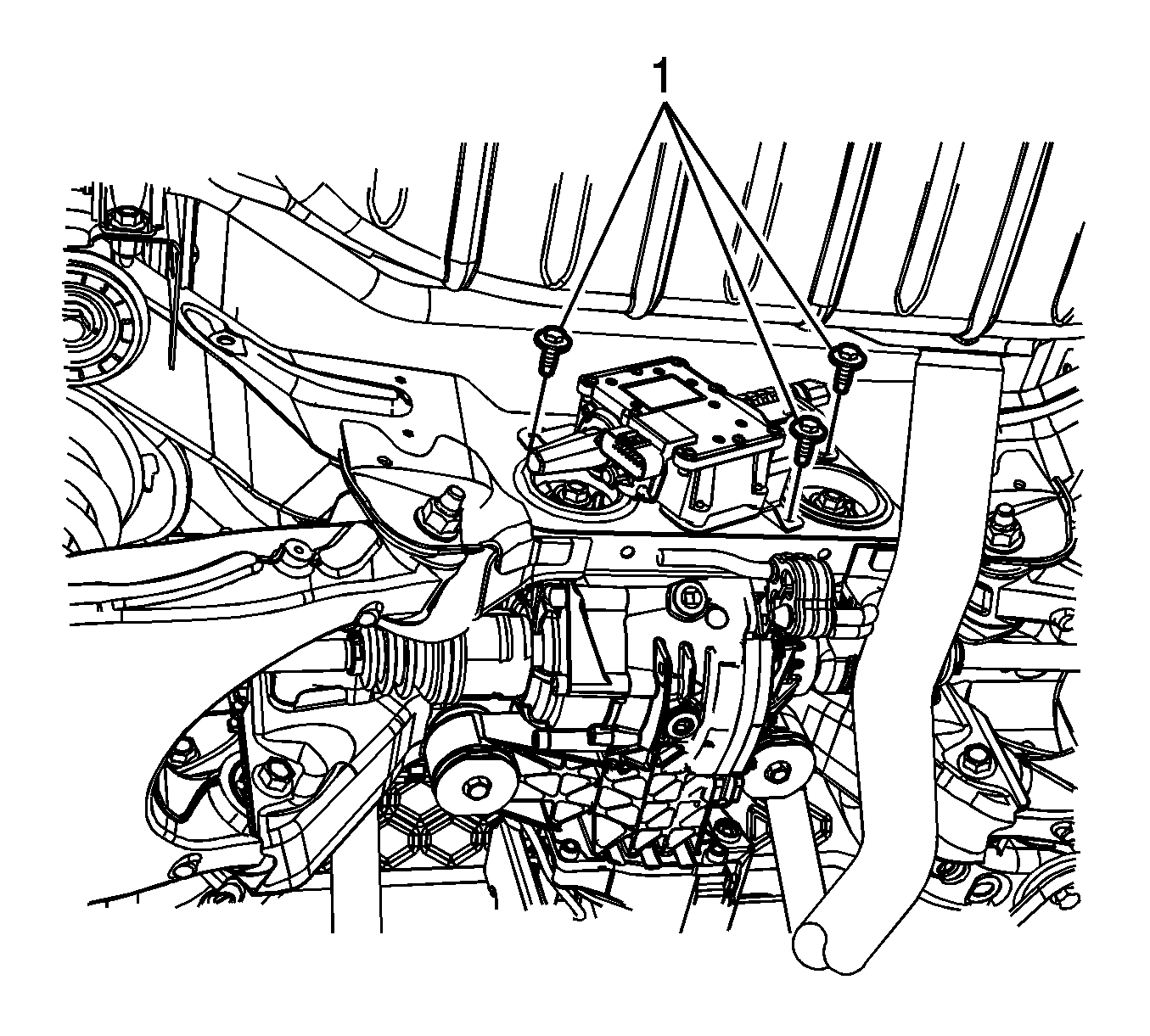

- Install the electronic parking brake control module bolts (1) and tighten to 25 N.m (18 lb ft).
- Inspect the O-ring seals on the electronic parking brake control module spindle and the parking brake intermediate cable for damage and correct positioning and replace, if necessary.
- Install the parking brake intermediate cable fitting to the spindle.
- Install the parking brake intermediate cable nut (1) to the electronic parking brake control module spindle by rotating the nut clockwise and tighten to 6 N.m (53 lb in).
- Connect the electronic parking brake control module electrical connector.
- Enable the parking brake cable adjuster. Refer to Parking Brake Cable Adjuster Enabling .
- Calibrate the electronic parking brake control module. Refer to Electronic Parking Brake Control Module Programming and Setup .
CAUTION:
Refer to Fastener Caution .
NOTE:
Ensure the park brake intermediate cable fitting is engaged in the actuator in the spindle.
NOTE:
When installing the parking brake intermediate cable nut to the electronic park brake module spindle, hold the spindle housing securely to avoid distorting the housing.
