Audio/Video Disc Player Adapter Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

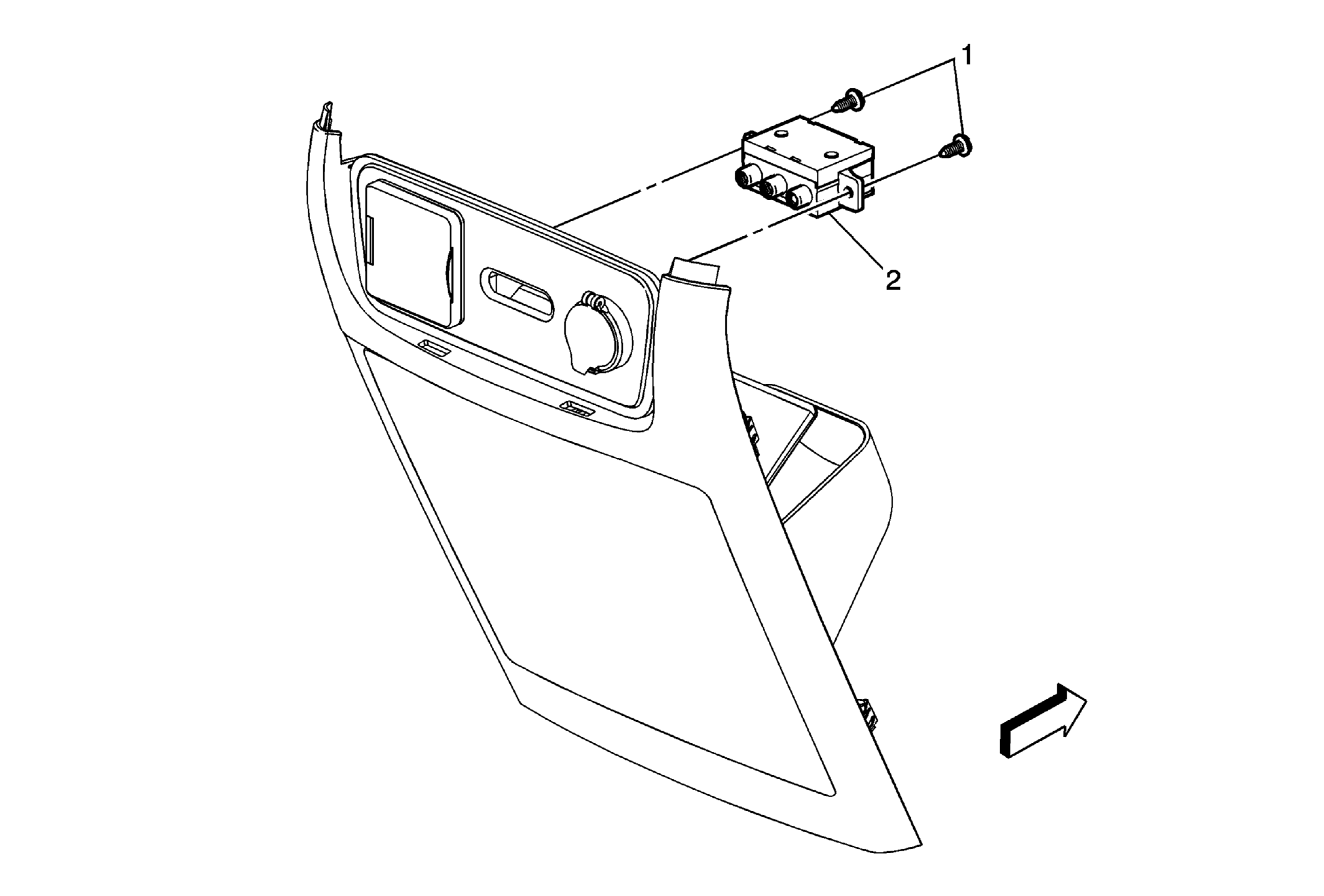

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front floor console rear trim panel. Refer to Front Floor Console Rear Trim Panel Replacement . |
|
| 1 | Audio/Video Disc Player Adapter Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2 N.m (18 lb in) |
| 2 | Audio/Video Disc Player Adapter Assembly |
