Installation Procedure
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

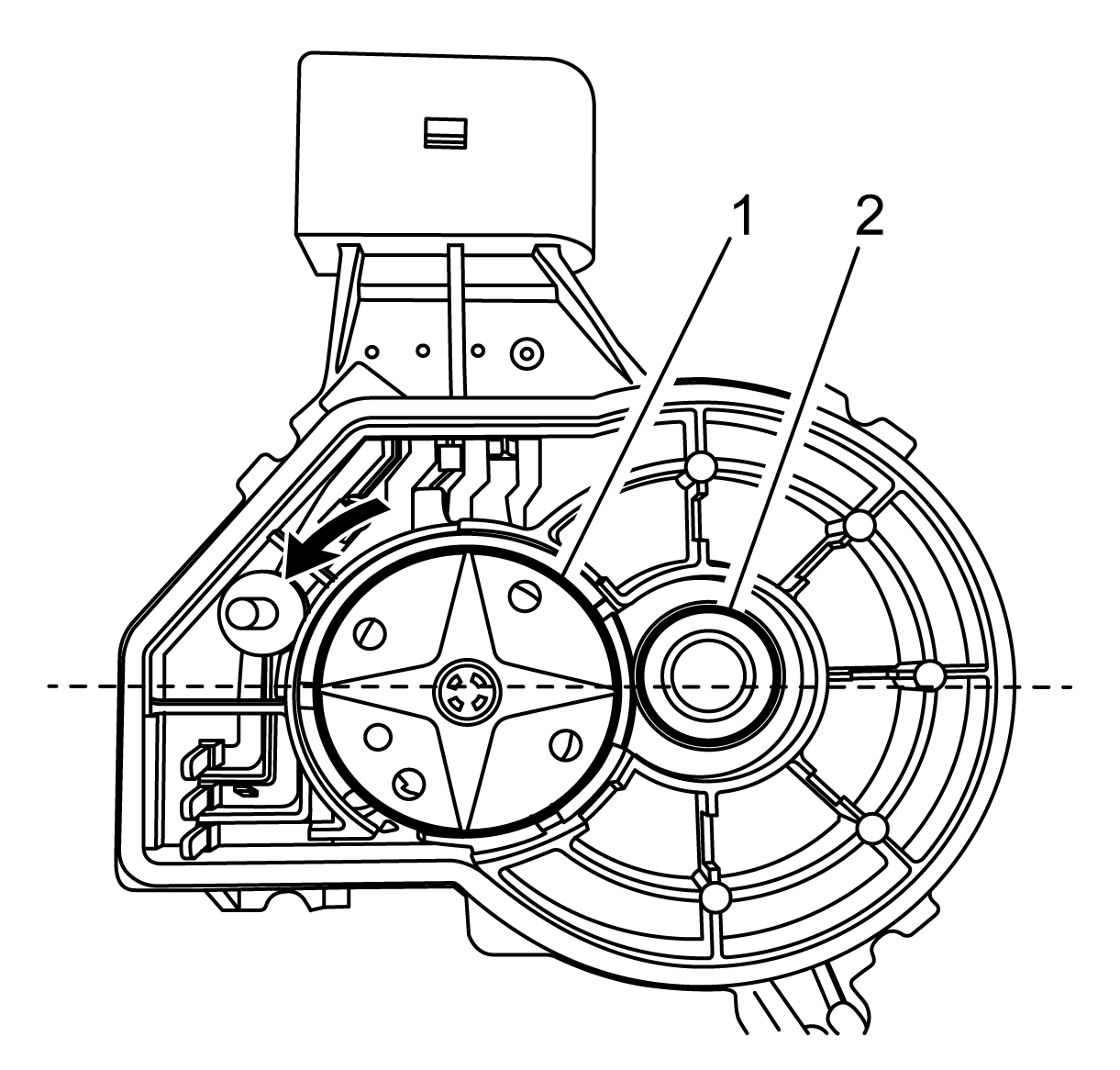

- Turn the sprocket (1) counterclockwise to align the sprocket (1) with the breather (2) on the NEW windshield wiper motor cover.
- Ensure that the terminals and pins are properly aligned before completely installing the cover to the motor.
- The park pin should align to one of the holes between the fingers in the cover.

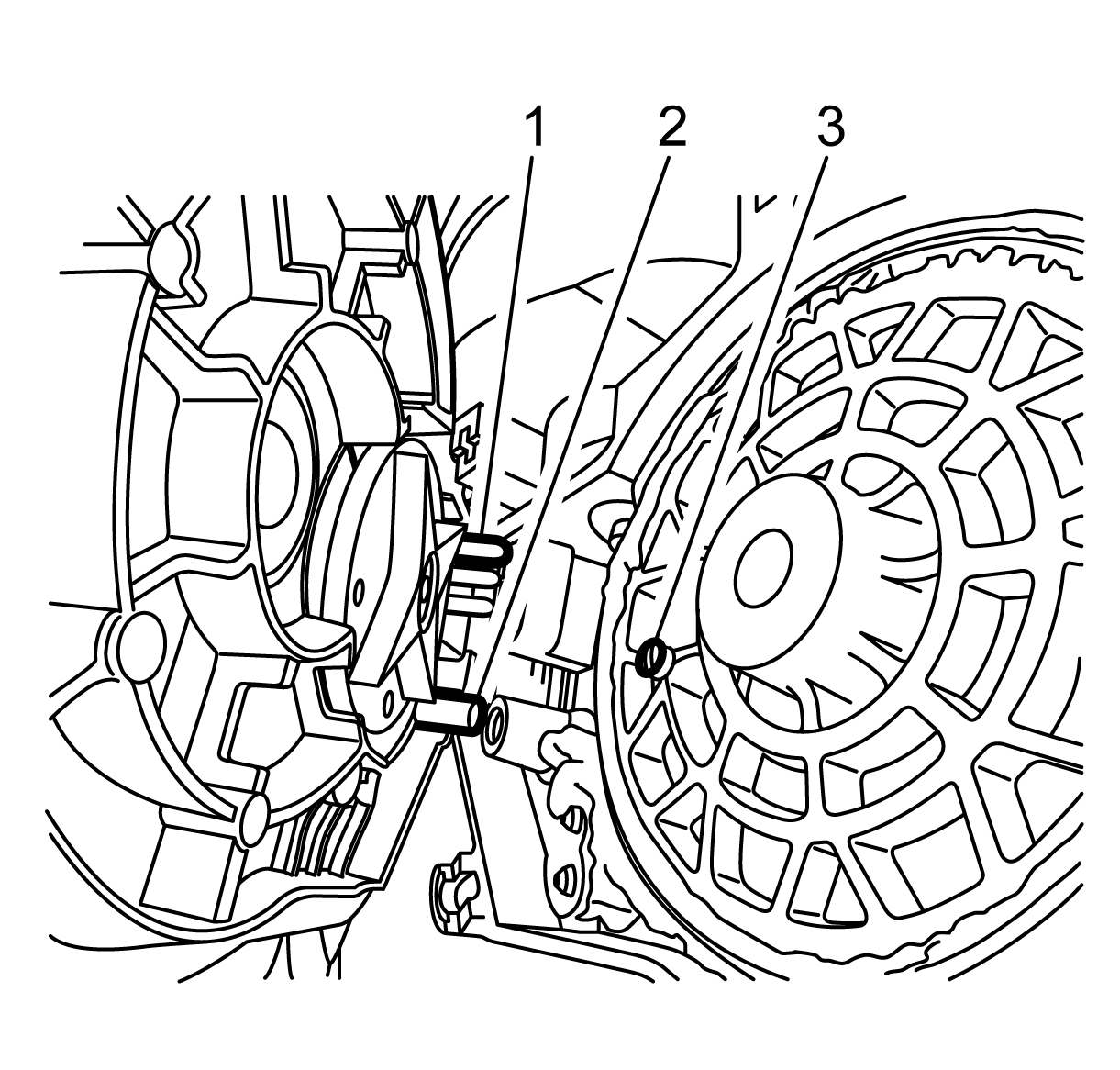

- Carefully install the windshield wiper motor cover on the windshield wiper motor, aligning the terminals (1), pin A (2) and the Park Pin (3).

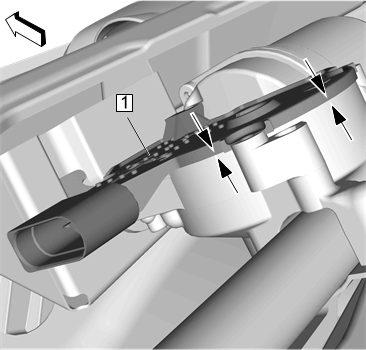

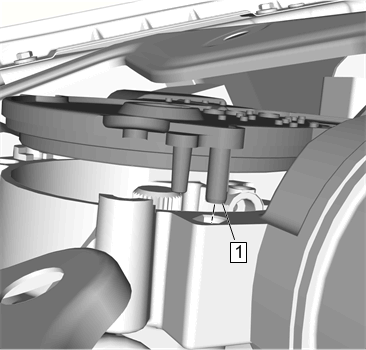

- Push down carefully on the windshield wiper cover to align pin B (1).
- Verify the windshield wiper motor cover (1) lays flush on the windshield wiper motor.

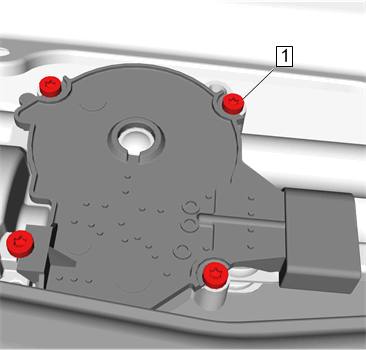

- Install Windshield Wiper Motor Cover Fastener (1) and tighten 3.5 N.m (31 lb in)
- Verify the windshield wiper motor cover fasteners (1) lay flush on the windshield wiper motor cover.
- Connect the electrical connector.
- Verify proper windshield wiper motor operation.

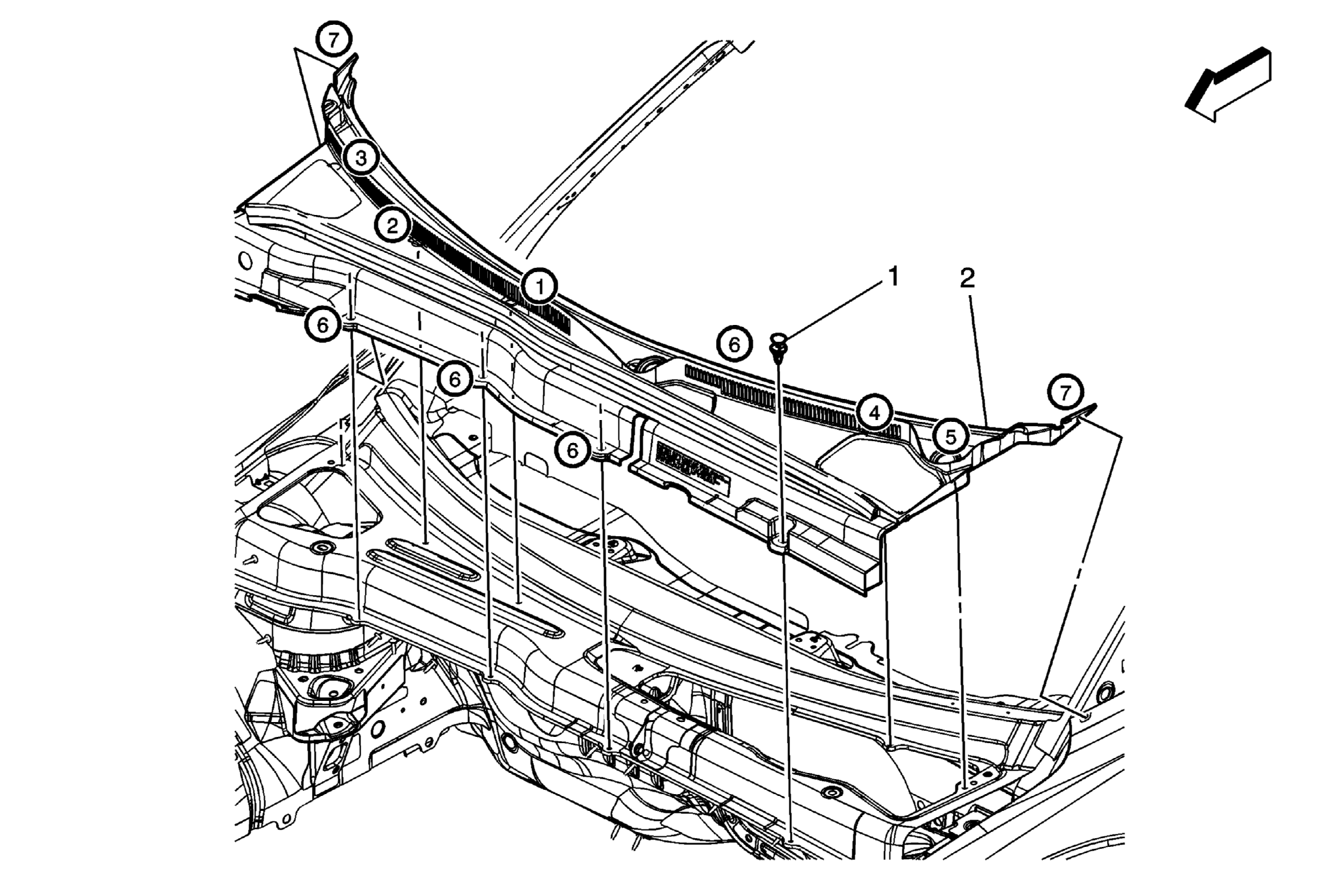

- Install Air Inlet Grille Panel (2). Air Inlet Grille Panel Replacement
- Verify proper windshield wiper motor operation.
CAUTION:
Check alignment of the wiper cover sprocket and breather. A misaligned wiper cover sprocket may result in component damage.
NOTE:
NOTE:
Install and tighten the (Qty: 4) fasteners in a "X" pattern.
