Electronic Suspension Control Module Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

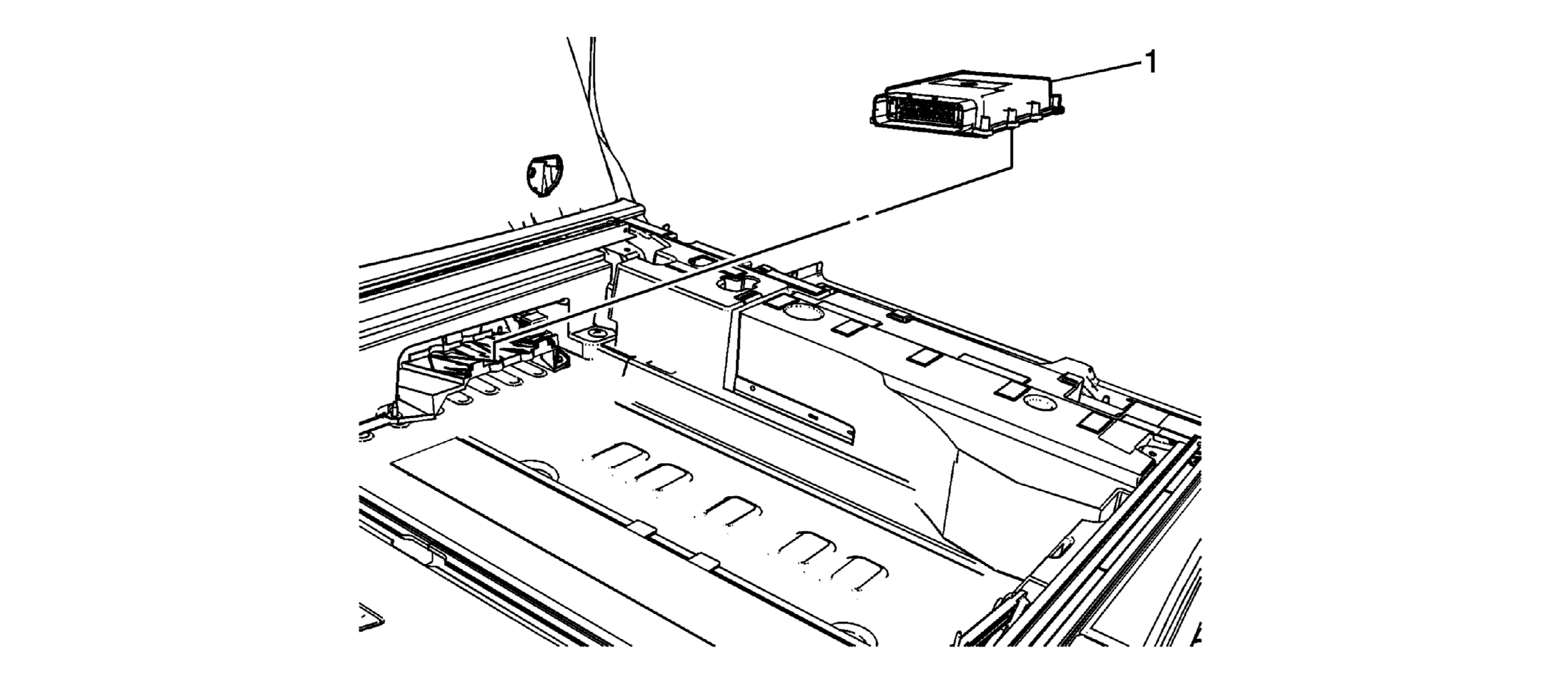

Fig 1: View Of Electronic Suspension Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear compartment floor storage compartment. Refer to Rear Compartment Floor Stowage Compartment Tray Replacement
1	Electronic Suspension Control Module Procedure Remove the electrical harness from the control module. Remove the control module from the mounting bracket.

Callout

Component Name

Preliminary Procedure:
Remove the rear compartment floor storage compartment. Refer to Rear Compartment Floor Stowage Compartment Tray Replacement

Electronic Suspension Control Module

Procedure

Remove the electrical harness from the control module.
Remove the control module from the mounting bracket.
