Blower Motor Control Module Replacement

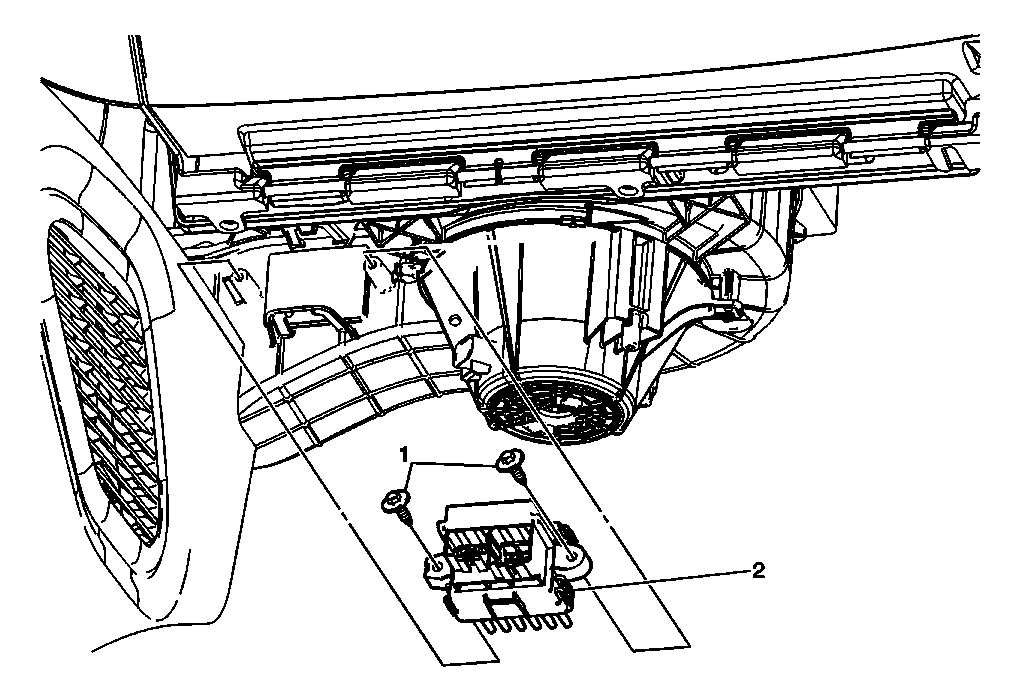

Fig 1: Identifying Blower Motor Control Module
GM1865580Courtesy of GENERAL MOTORS COMPANY
Blower Motor Control Module Replacement

Callout Component Name
Preliminary Procedure
Remove the instrument panel insulator - right side. Refer to Instrument Panel Insulator Panel Replacement - Right Side (Traverse) , Instrument Panel Insulator Panel Replacement - Right Side (Acadia) , Instrument Panel Insulator Panel Replacement - Right Side (Enclave) .
1 Blower Motor Control Module Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
2 Blower Motor Control Module
Procedure
Disconnect electrical connectors.
